AGB Latch Deadbolt 2 Hooks 3 Rollers Lift Lever Multipoint Door Lock (top hook to spindle = 330mm)

SKU: AGB3R2Hconfig

£35.00 Out of stock

SKU: AGB3R2Hconfig Categories: , Brand:

Description

This part is discontinued and is no longer available.

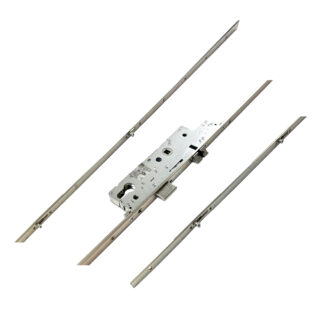

However, part: V-MPLSS35 is a potential alternative. We’d recommend a VERSA V-MPLSS35 to replace this lock. There isn’t a full lock that is a direct swap, but the VERSA lock comes with keeps and is adjustable to suit the original door routing.

AGB locks are manufactured in Italy. They were historically available in a number of different configurations but only the Poseidon lock is still available. The AGB Poseidon lock features a unique hook and deadbolt arrangement on the outer locking points. Designed to look like a trident, each hook throws in the opposite direction to the other with a deadbolt separating them.

AGB UPVC door locks are easy to identify from the logo stamped on the faceplate or the unique Poseidon locking arrangement. These locks are only available with a 35mm backset and a 16mm faceplate. The operation is lift lever with a single spindle.

Additional information

Manufacturer

AGB

Discontinued

Yes

Backset

35mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Rollers

3

Hooks

2

Deadbolts

1

Main Gearbox

Latch and deadbolt

Operation

Lift Lever

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

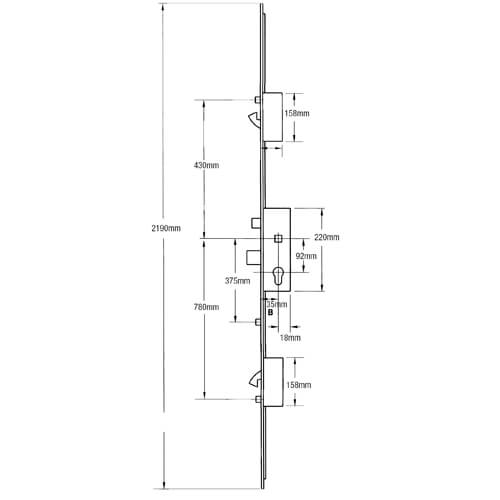

Distance Between Inner Locking Points

1070mm

Distance Between Outer Locking Points

1210mm

Height

2190mm

Top Hook To Spindle

330mm

Bottom Hook To Spindle

680mm

Top Roller To Spindle

430mm

Bottom Roller To Spindle

780mm
