AGB Latch Deadbolt 2 Hooks 3 Rollers Lift Lever Multipoint Door Lock (top hook to spindle = 580mm)

SKU: AGB2H3R30config

£52.50 Out of stock

SKU: AGB2H3R30config Categories: , Brand:

Description

This part is discontinued and is no longer available.

However, part: V-MPL30 is a potential alternative for part: AGB2H3R30, and part: V-MPLSS35 is a potential alternative for part: AGB2H3R35.

We’d recommend a VERSA V-MPL to replace this lock. There isn’t a full lock that is a direct swap, but the VERSA lock comes with keeps and is adjustable to suit the original door routing.

AGB locks are manufactured in Italy. They were historically available in a number of different configurations but only the Poseidon lock is still available. The AGB Poseidon lock features a unique hook and deadbolt arrangement on the outer locking points. Designed to look like a trident, each hook is thrown in the opposite direction to the other with a deadbolt separating them.

Additional information

Manufacturer

AGB

Centres PZ

92mm

Rollers

3

Hooks

2

Deadbolts

1

Latch

1

Operation

Lift Lever

Shootbolt Attachments

No

Discontinued

Yes

Backset

35mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Main Gearbox

Latch and deadbolt

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

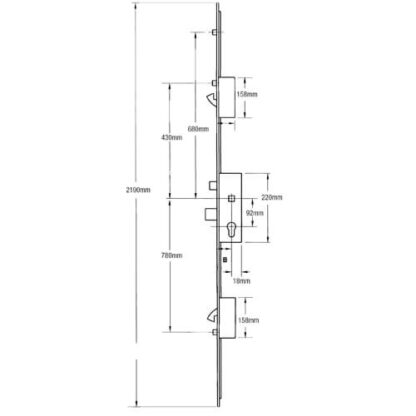

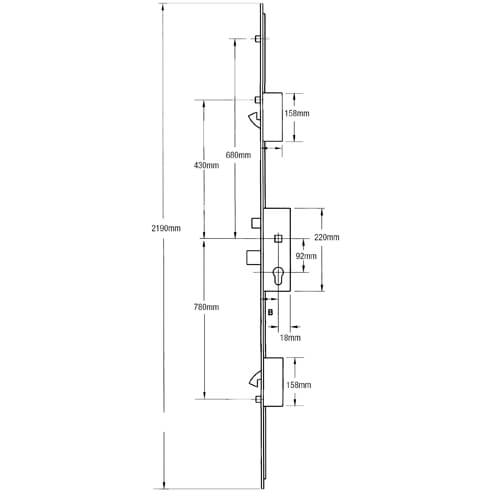

Distance Between Inner Locking Points

1070mm

Distance Between Outer Locking Points

1460mm

Height

2190mm

Top Hook To Spindle

580mm

Bottom Hook To Spindle

680mm

Top Roller To Spindle

680mm

Bottom Roller To Spindle

780mm
