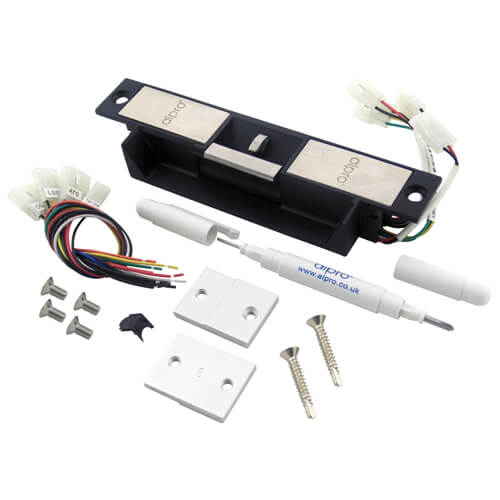

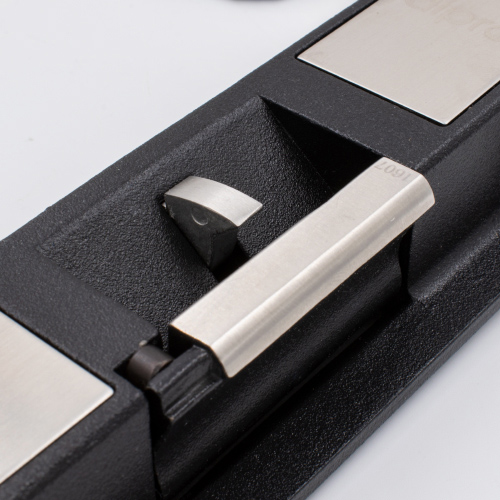

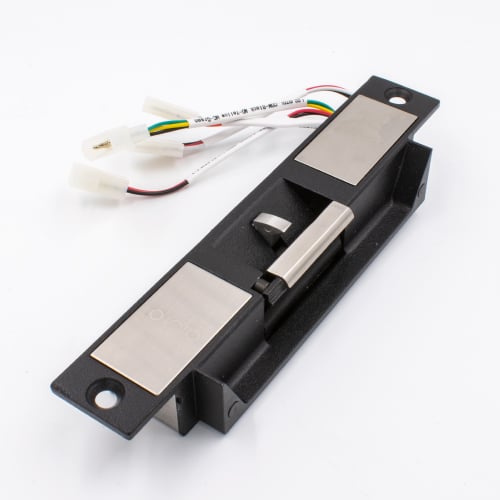

Alpro AL2000 High Security Electric Release

The AL2000 is a high security electric release which features monitoring, selectable 12v or 24v (when wiring) and field reversible fail safe/fail secure operation. The additional RM1 rectifier allows the release to be run on AC power where required. Compatible with Aluminium, Steel and Timber frames.

• Type: Mortice.
• Style: ANSI.
• Jaw: None Adjustable.
• Jaw Dimensions:
• Dimensions: (H) 175mm x (W) 44.5mm x (D) 26mm.
• Field Reversible: Fail safe / fail secure.
• Current Consumption: 220mA at 12V DC, 110mA at 24V DC.
• Holding Force: 1380kg.
• Latch Accommodation: 13mm (incl. 3mm air gap).
