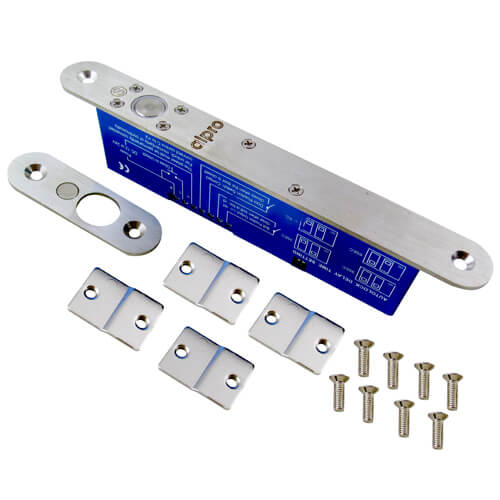

Alpro EB250 Solenoid Bolt

Alpro EB250 Solenoid Bolt

SKU: ALPEB250config

Price range: £255.18 through £340.24 In stock

SKU: ALPEB250config Categories: , Brand:

Description

The EB250 is a Slimline lock ideally suited to narrow style aluminium doors. It suits sliding, double or Single swing doors and can be fitted to the door or the frame. Compatible with timber and metal doors

  • Field Reversible:
  • Current Consumption: 12v: 740mA (activate) 120mA (holding), 24v: 440mA (activate) 70mA (holding).
  • Dimensions ALPEB250: (H) 210mm (W) 25mm (D) 43mm.
  • Dimensions ALPEB250KO: (H) 230mm (W) 25mm (D) 43mm.
  • Bolt Throw: 14mm.
  • Faceplate:

Additional information

Manufacturer

Alpro
Length

160mm, 180mm, 190mm
Type

Fail Safe, Fail Secure
Current Consumption

740mA at 12V or 440mA at 24V
Input Power

12v/24v DC
Bolt Throw

14mm
Faceplate Length

210mm, 230mm
Faceplate Width

25mm
Width

22mm
Depth

43mm
Holding Force

1000kg
