£133.70 Out of stock
This part is discontinued and is no longer available.
However, part: UM3D5085 is a potential alternative. The Ucem UM3DB5085 is a close match for this lock, but it isn’t perfect. The unusual backset and centres match but the replacement features deadbolts and they are in slightly different locations.
This Azbe 6 pin lock is commonly used in Spain but less common in the UK and Ireland,
It is supplied with a U-rail faceplate and one piece keep.
| Manufacturer | Azbe |
|---|---|
| Discontinued | Yes |

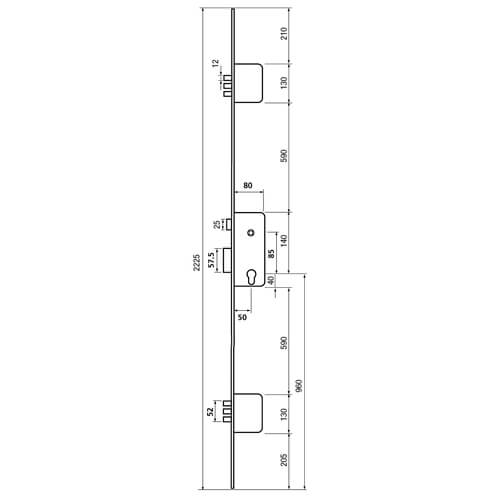

| Backset | 50mm |
| Centres PZ | 85mm |
| Faceplate | Flat 20mm – Square Ends |
| Spindle Size | 8mm |
| Pin Bolts | 6 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Key Wind |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 1690mm |
| Height | 2225mm |
| Top Pin To Spindle | 710mm |
| Bottom Pin To Spindle | 780mm |
