Brisant Secure Ultion TS007 2* Lever Pad UPVC Multipoint Door Handles – 92/62mm PZ Sprung 211mm Screw Centres

SKU: ULTPADWHconfig

Price range: £16.58 through £23.60 In stock

Description

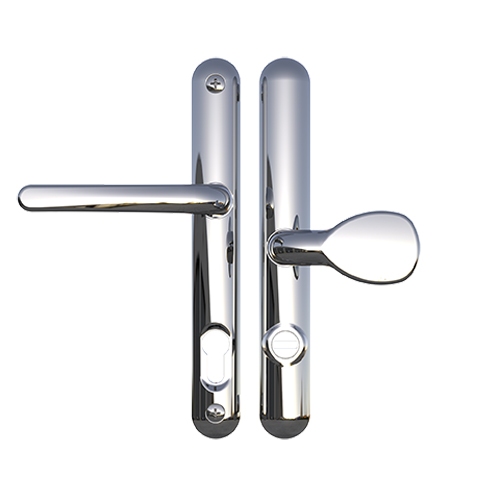

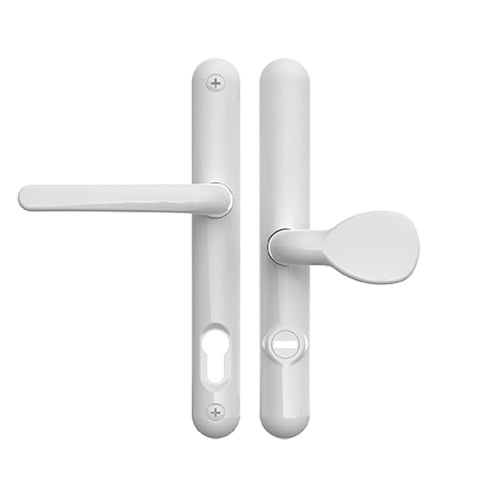

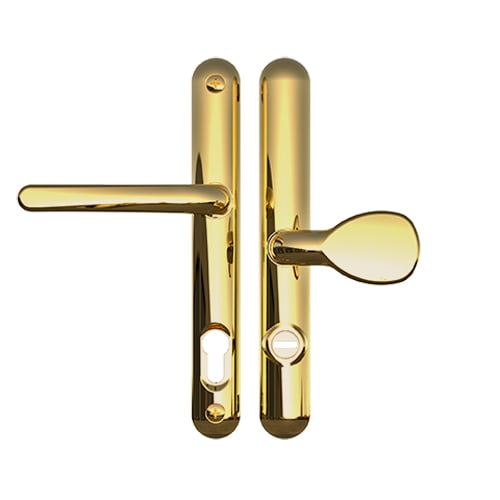

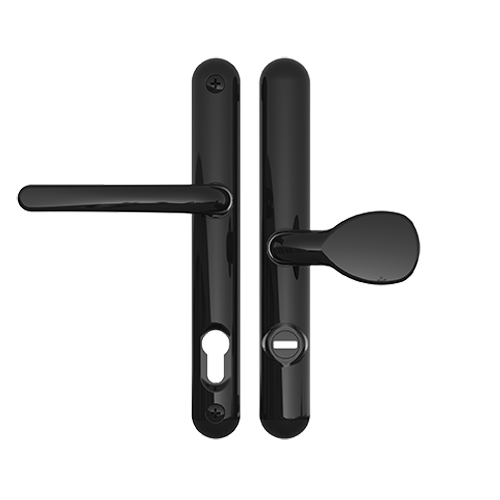

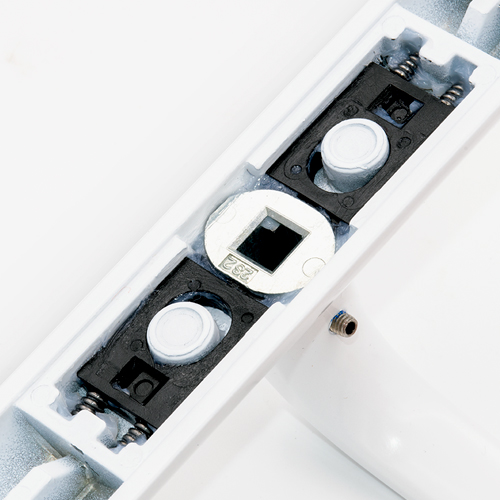

These Ultion TS007 2 * handles have sprung 92/62mm PZ internal lever & external moveable pad handle.

With a backplate of 248mm x 34mm they are available in various finishes.

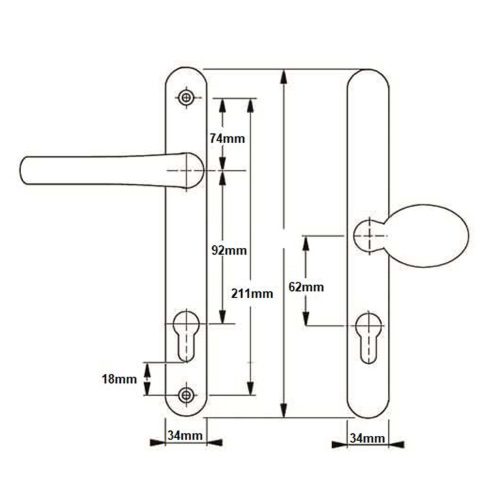

The distance between the fixing screws is 211mm with the bottom screw positioned 18mm below the euro profile cut-out.

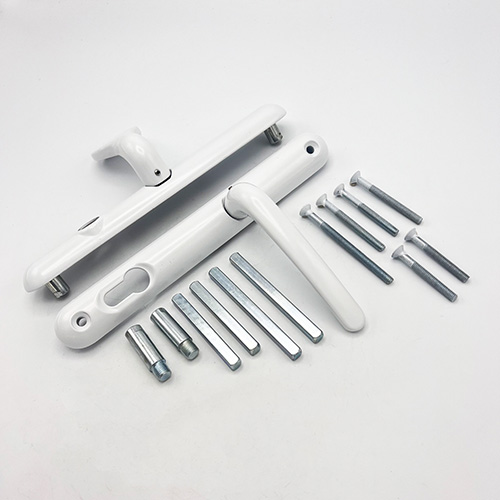

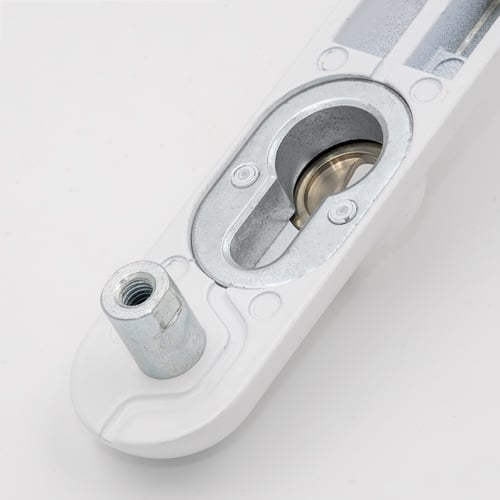

They are supplied as a pair complete with a PVC and composite spindle kit with fixing screws. Supplied with 2 small screws for standard thickness door and 1 Long/1 Medium screw with a set of longer reinforced bosses for thicker doors.

Additional information

Manufacturer

Brisant Secure

Centres PZ

92mm, 92mm/62mm

Screw Centres

211mm

Backplate Length

248mm

Backplate Width

34mm

Spindle Size

8mm

Handing

Non Handed

Sprung Or Unsprung

Sprung

Colour

Black, Chrome, Gold, White

Lowest Screw To Base Of Euro

18mm

Top Screw To Spindle

75mm
