£24.99 In stock

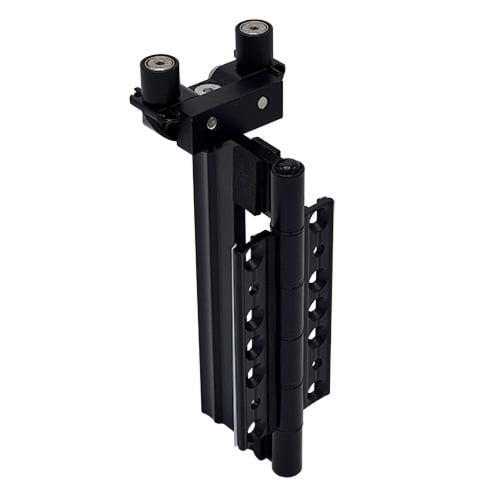

This top guide assembly is used above the roller at the top of bi-fold door installations wherever two hinged door leaves sit in the running track. It works with the bifold roller to support moving door panels at the top to ensure that the door stays in the track.

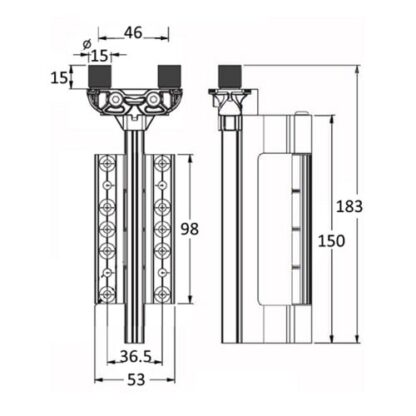

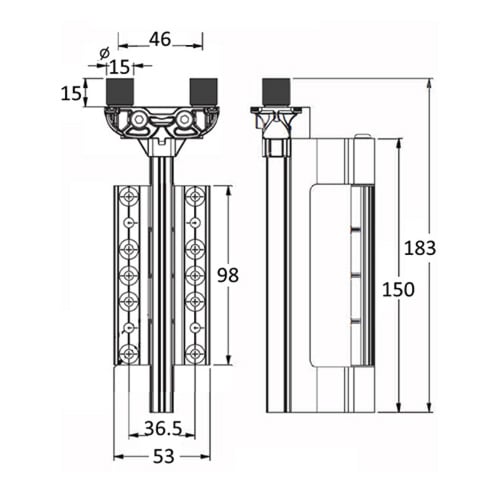

| Manufacturer | Caldwell |
|---|---|
| Type | Top Guide |
| Colour | Black, White |
| Overall Height | 183mm |
| Hinge Height | 98mm |
| Hinge Width When Open | 53mm |
| Diameter of Knuckle | 13mm |
| Hinge Screw Centres | 36mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 85mm |
| Top to Middle Fixing Hole | 42.5mm |
| Middle to Bottom Fixing Hole | 42.5mm |
| 2nd to 4th Fixing Hole | 57mm |
| 3rd to 5th Fixing Hole | 28mm |
| Roller Height | 13.5mm |
| Roller Diameter | 15mm |
| Roller Centres | 46mm |
