Description
Replacement top guide commonly fitted to Raynaers CF68 aluminium bi fold

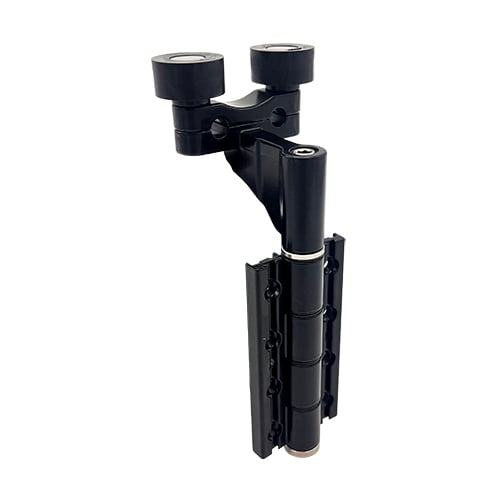

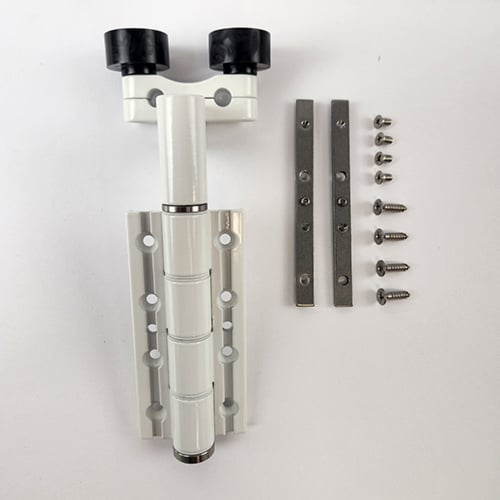

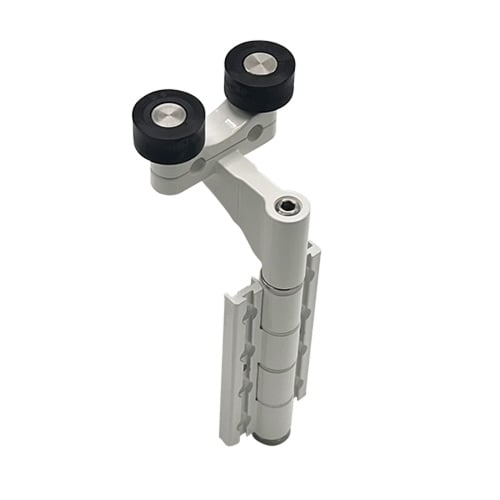

Clearspan for Raynaers CF68 Bi-Fold Doors Top Guide
SKU: BITGRCF68Wconfig
Price range: £17.66 through £18.48 In stock
Additional information
| Manufacturer | Clearspan |
|---|---|
| Type | Top Guide |
| Colour | Black, White |

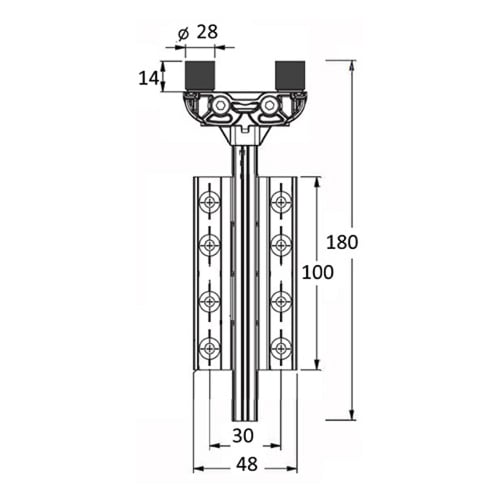

| Overall Height | 180mm |
| Hinge Height | 100mm |
| Hinge Width When Open | 48mm |
| Diameter of Knuckle | 18mm |
| Hinge Screw Centres | 30mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 4 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 25mm |
| 3rd to 5th Fixing Hole | 37mm |
| Roller Height | 14mm |
| Roller Diameter | 28mm |
| Roller Centres | 46mm |
