Description

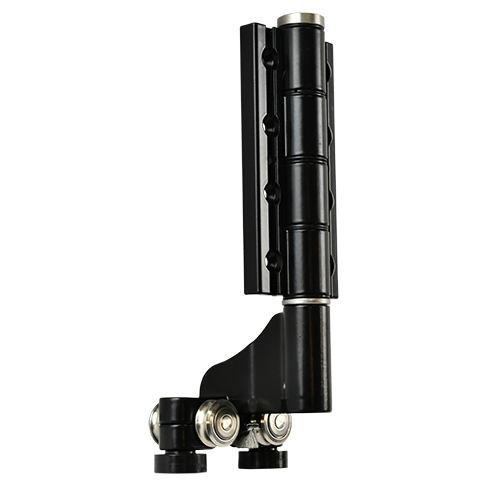

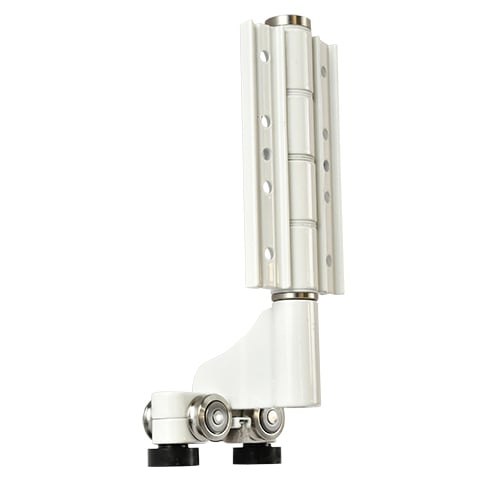

Replacement bottom roller commonly fitted to Raynaers CF68 aluminium bi fold doors.
Clearspan for Reynaers CF68 Bi-Fold Doors Bottom Roller
SKU: BIBRRCF68Wconfig
Price range: £34.57 through £39.23 In stock

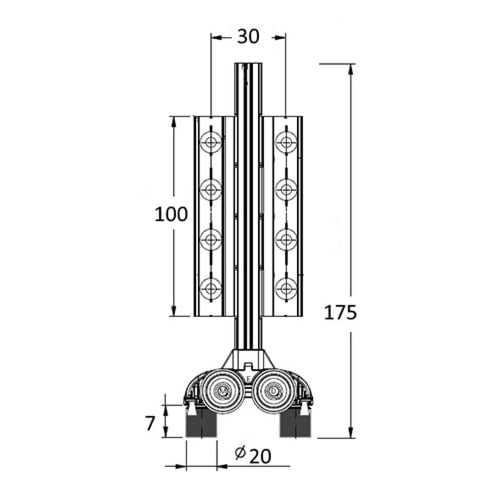

Additional information
| Manufacturer | Clearspan |
|---|---|
| Type | Bottom Roller Hinge |
| Colour | Black, White |
| Overall Height | 175mm |
| Hinge Height | 100mm |
| Hinge Width When Open | 45mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 30mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 4 |
| Top to Bottom Fixing Hole | 76mm |
| Top to Middle Fixing Hole | 38mm |
| Middle to Bottom Fixing Hole | 38mm |
| 2nd to 4th Fixing Hole | 25mm |
| 3rd to 5th Fixing Hole | 38mm |
| Roller Height | 7mm |
| Roller Diameter | 20mm |
| Roller Centres | 44mm |
