Description
A replacement top guide to repair existing Sheerline bifold installations.

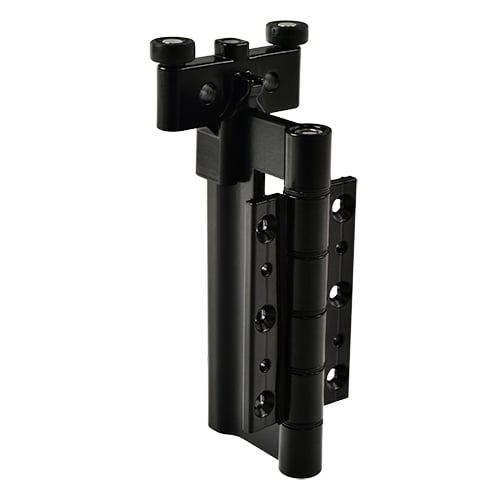

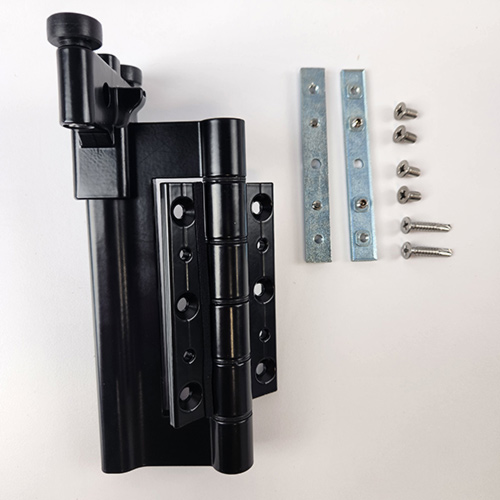

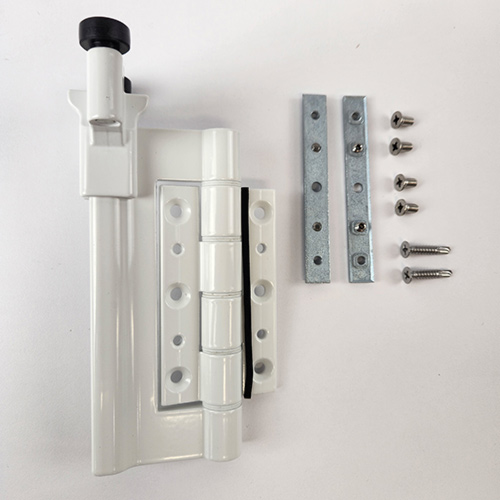

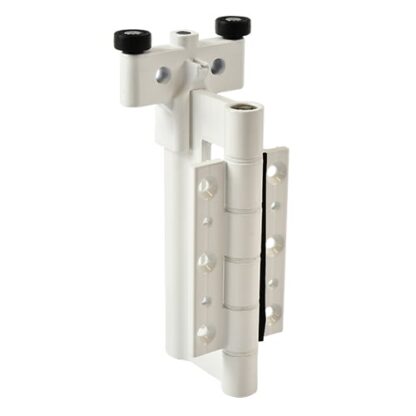

Clearspan for Sheerline Aluminium Bi-Fold Doors Top Guide
SKU: BITGSHEERWconfig
Price range: £19.80 through £21.36 In stock
Additional information
| Manufacturer | Clearspan |
|---|---|
| Type | Top Guide |
| Colour | Black, White |

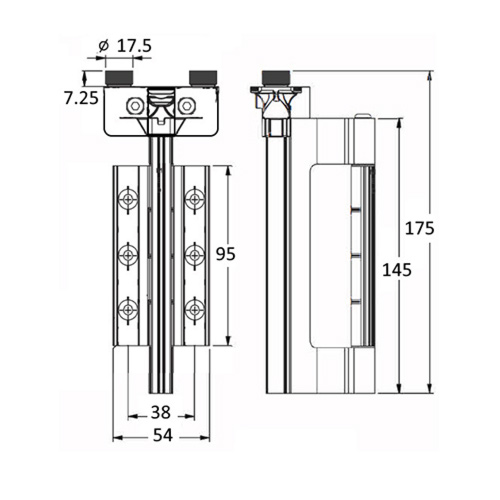

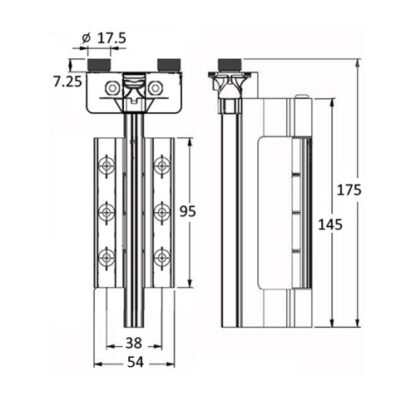

| Overall Height | 175mm |
| Hinge Height | 95mm |
| Hinge Width When Open | 54mm |
| Diameter of Knuckle | 13mm |
| Hinge Screw Centres | 38mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| 3rd to 5th Fixing Hole | 35.5mm |
| Roller Height | 7.25mm |
| Roller Diameter | 17.5mm |
| Roller Centres | 58mm |
