Description
Replacement bottom roller commonly fitted to Smart Visofold 1000 aluminium bi fold doors.

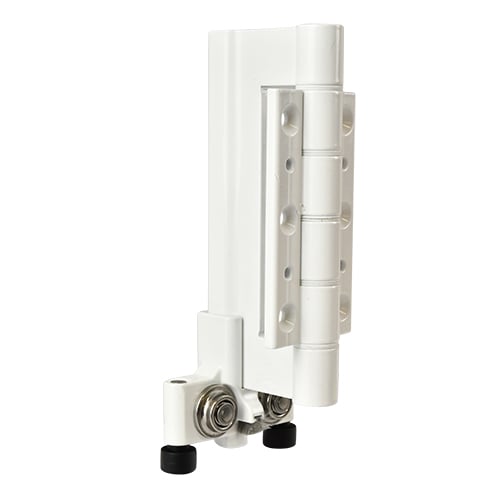

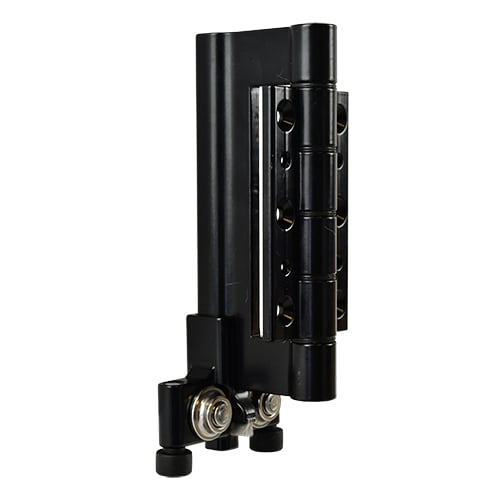

Clearspan for Smart Visofold 1000 Bi-Fold Doors Bottom Roller
SKU: BIBRSVWconfig
Price range: £28.76 through £29.00 In stock
Additional information
| Manufacturer | Clearspan |
|---|---|
| Type | Bottom Roller Hinge |
| Colour | Black, White |

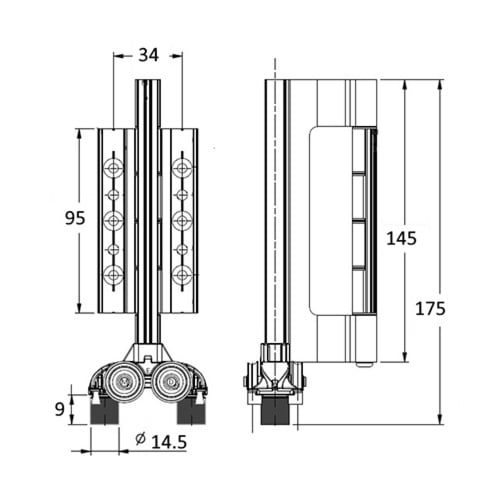

| Overall Height | 175mm |
| Hinge Height | 95mm |
| Hinge Width When Open | 54mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 34mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| Roller Height | 9mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 56mm |
