Description
Replacement top guide commonly fitted to Smart Visofold 1000 aluminium bi

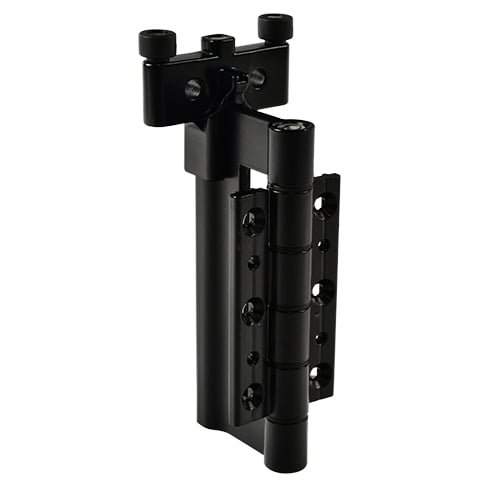

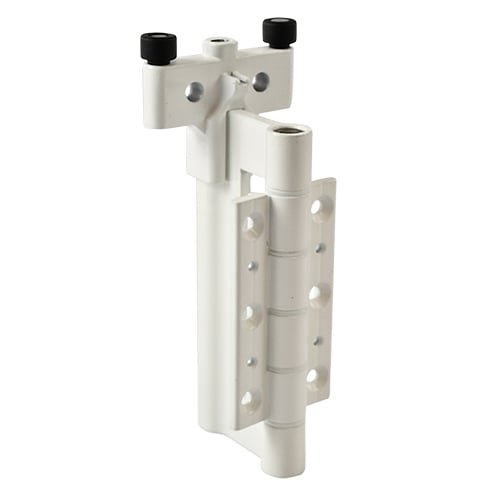

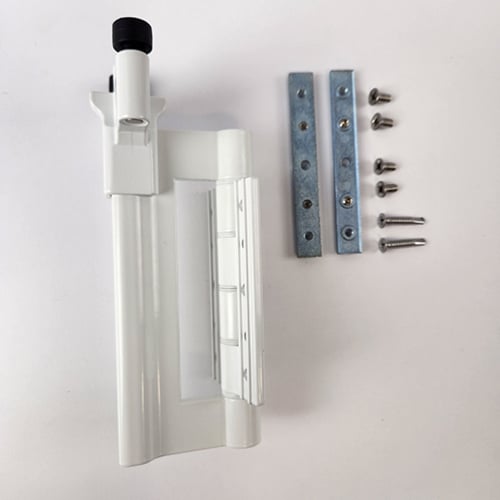

Clearspan for Smart Visofold 1000 Bi-Fold Doors Top Guide
SKU: BITGSVWconfig
Price range: £16.74 through £18.12 In stock
Additional information
| Manufacturer | Clearspan |
|---|---|
| Type | Top Guide |
| Colour | Black, White |

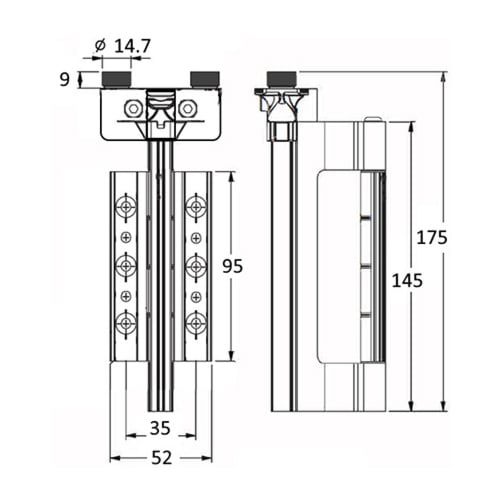

| Overall Height | 175mm |
| Hinge Height | 95mm |
| Hinge Width When Open | 52mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 35mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| 3rd to 5th Fixing Hole | 35mm |
| Roller Height | 9mm |
| Roller Diameter | 14.7mm |
| Roller Centres | 57.5mm |
