Description
A replacement top guide to repair existing Stellar bifold installations.

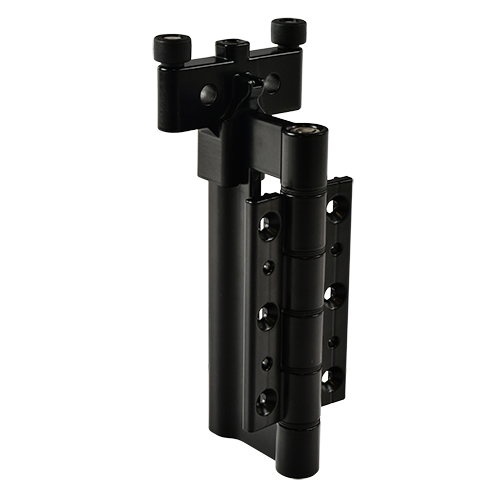

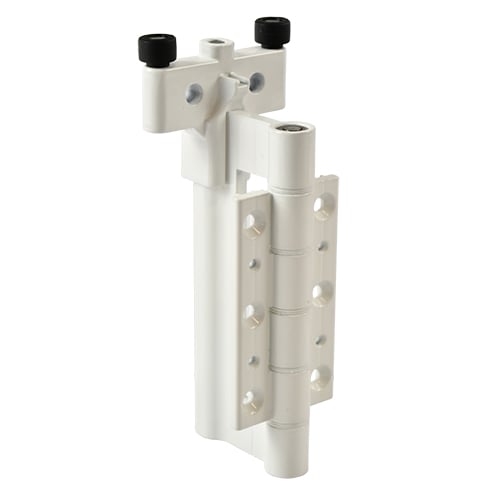

Clearspan for Stellar Aluminium Bi-Fold Doors Top Guide
SKU: BITGSTELWconfig
Price range: £19.88 through £20.41 In stock
Additional information

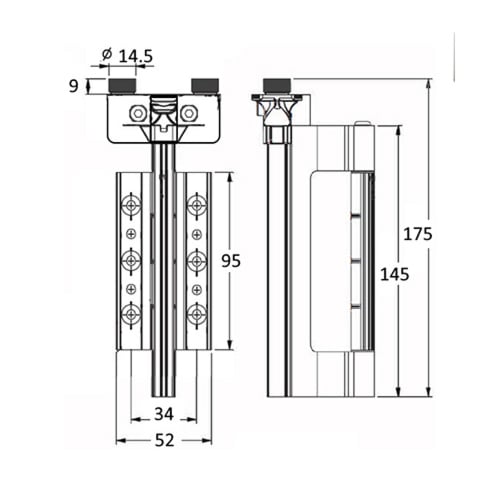

| Manufacturer | Clearspan |
|---|---|
| Type | Top Guide |
| Colour | Black, White |
| Overall Height | 175mm |
| Hinge Height | 95mm |
| Hinge Width When Open | 52mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 34mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| 3rd to 5th Fixing Hole | 36mm |
| Roller Height | 9mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 56.5mm |
