Description
A replacement bottom roller to repair existing Debar V1, Smarts Visfold or Homweview UK bifold installations.

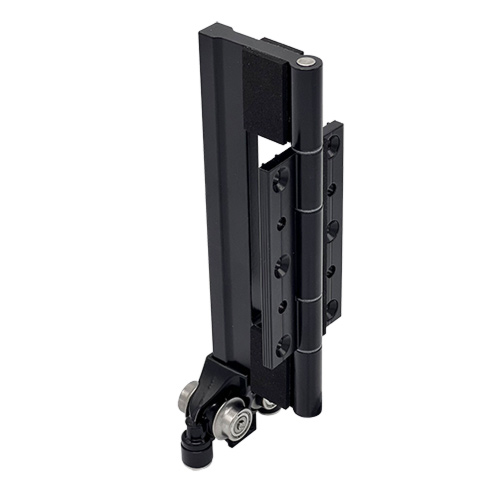

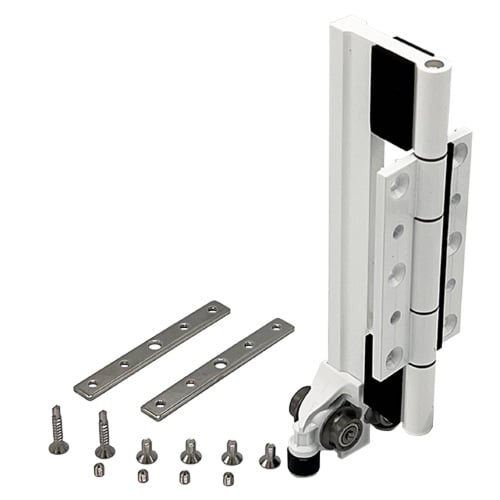

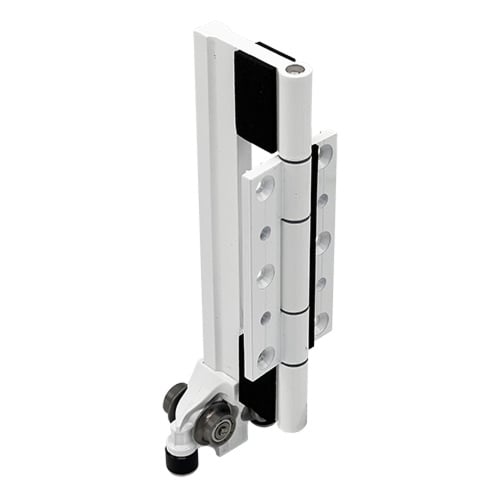

Debar V1 Bi-Fold Bottom Roller
SKU: DB1000RAWHconfig
£56.16 In stock
Additional information
| Manufacturer | Debar |
|---|---|
| Type | Bottom Roller Hinge |
| Colour | Black, White |

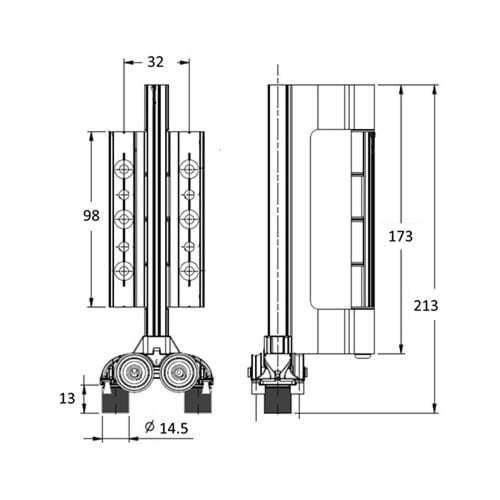

| Overall Height | 213mm |
| Hinge Height | 98mm |
| Hinge Width When Open | 50mm |
| Diameter of Knuckle | 13mm |
| Hinge Screw Centres | 32mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 80mm |
| Top to Middle Fixing Hole | 41mm |
| Middle to Bottom Fixing Hole | 40mm |
| 2nd to 4th Fixing Hole | 40mm |
| 3rd to 5th Fixing Hole | 40mm |
| Roller Height | 13mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 48.5mm |
