Description
A replacement top guide to repair existing Debar V1, Smarts Visfold and Homeview UK bifold doors

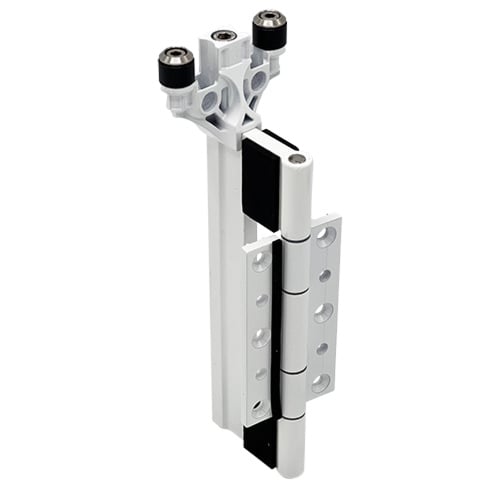

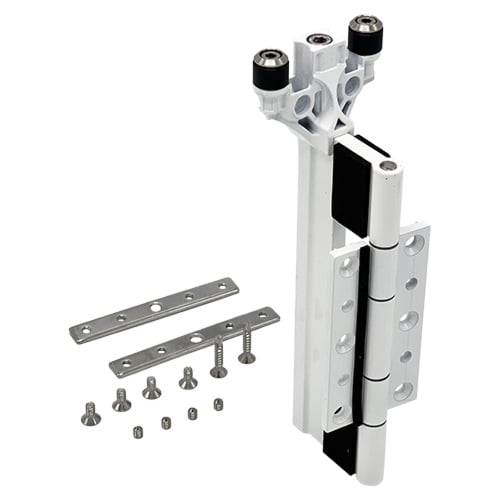

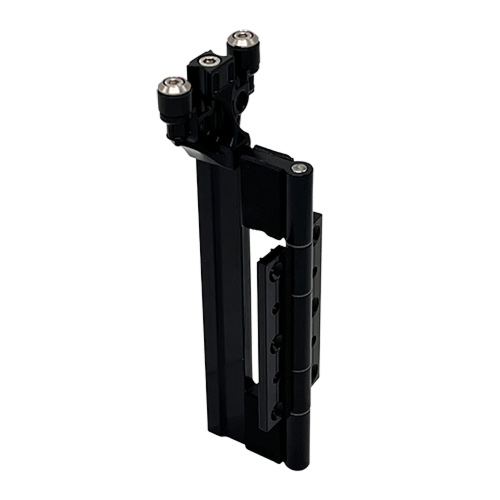

Debar V1 Bi-Fold Top Guide
SKU: DB1000GABWconfig
£34.60 In stock
Additional information
| Manufacturer | Debar |
|---|---|
| Type | Top Guide |
| Colour | Black, White |

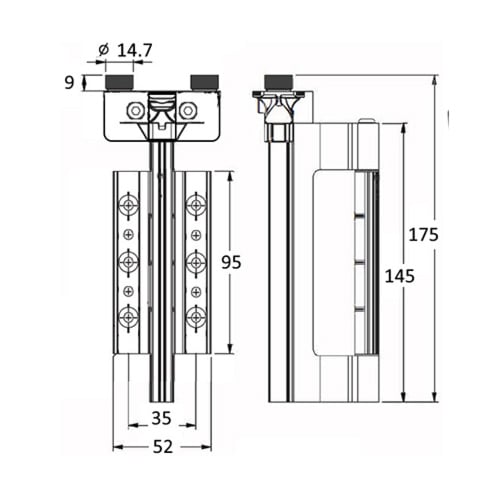

| Overall Height | 212mm |
| Hinge Height | 97.5mm |
| Hinge Width When Open | 49mm |
| Diameter of Knuckle | 13mm |
| Hinge Screw Centres | 32.5mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 82mm |
| Top to Middle Fixing Hole | 41mm |
| Middle to Bottom Fixing Hole | 41mm |
| 2nd to 4th Fixing Hole | 41mm |
| 3rd to 5th Fixing Hole | 38mm |
| Roller Height | 13mm |
| Roller Diameter | 15mm |
| Roller Centres | 50mm |
