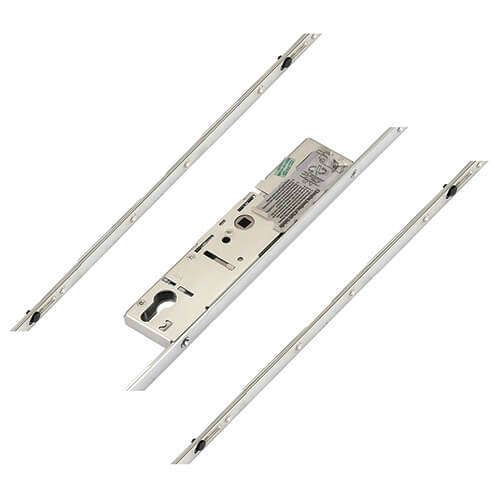

ERA Passive Lock Lift Lever Multipoint Door Lock

SKU: 65350085AAconfig

£36.89 In stock

SKU: 65350085AAconfig Categories: , Brand:

Description

This ERA Passive multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.

Passive locks are fitted to the secondary (or passive) door on a pair of French doors. They are used in conjunction with the primary lock, which is a normal multipoint door lock, fitted to the main door. Locking is achieved by shootbolts which secure the secondary door leaf to the frame when the door is locked.

Operation: Lift Lever

To lock the door

Additional information

Manufacturer

ERA

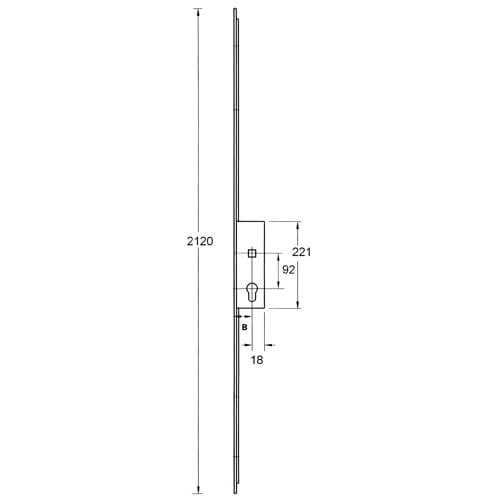

Centres PZ

92mm
Spindle Size

8mm
Operation

Lift Lever

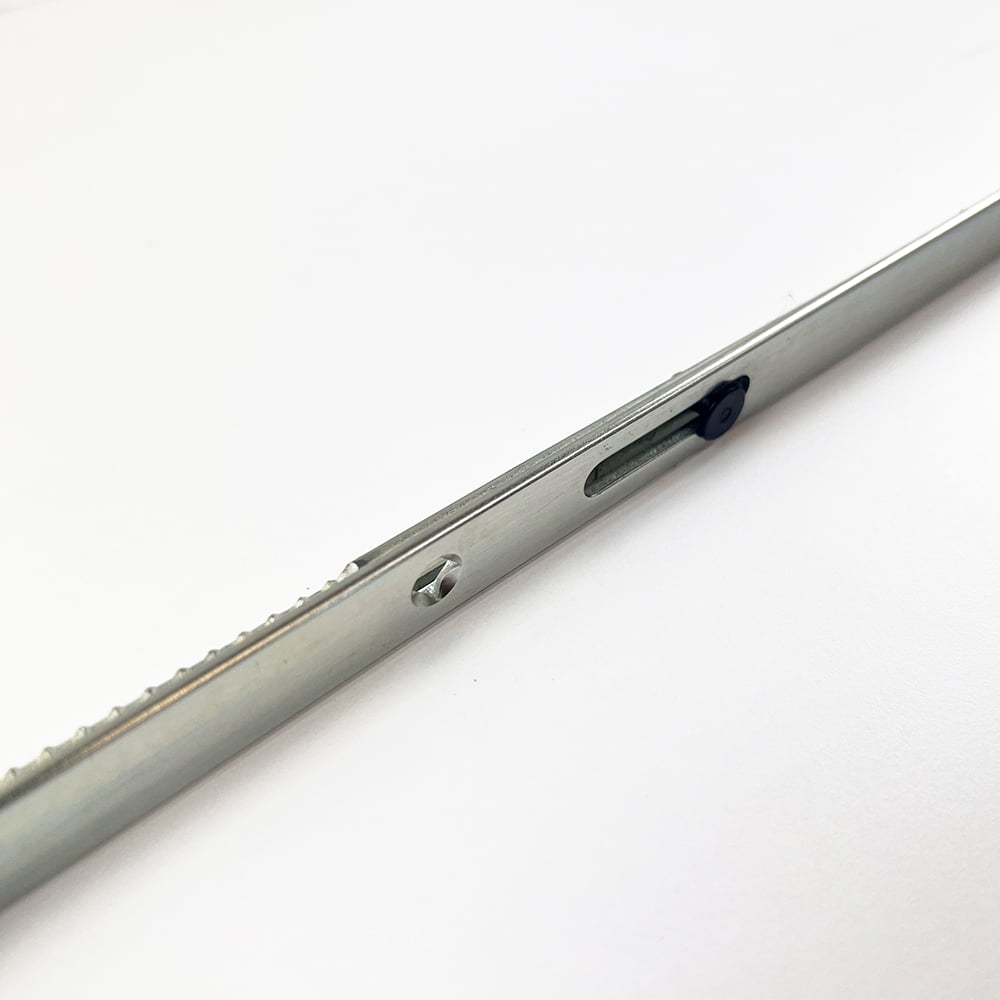

Shootbolt Attachments

Yes
Discontinued

No
Backset

35mm, 45mm
Faceplate

Flat 16mm – Square Ends
Main Gearbox

Passive Lock
Spindle

Single 8mm
1, 2 or 3 Piece

1
Handing

Non Handed
Height

2120mm
