Description
A replacement top guide and bottom roller set to repair existing 70mm bifold aluminium doors. This 5 knuckle version can also replace older 3 knuckle versions.

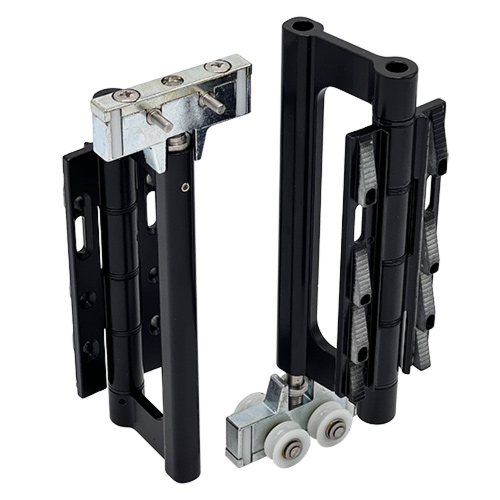

Top Guide & Bottom Roller Set
SKU: BIBREURWconfig
£319.00 In stock
Additional information
| Manufacturer | Eurocell |
|---|---|
| Type | Bottom Roller Hinge |
| Colour | Black, White |
| Overall Height | 200mm |
| Hinge Height | 119mm |
| Hinge Width When Open | 45mm |
| Diameter of Knuckle | 15.8mm |
| Hinge Screw Centres | 33mm |
| Fixing Holes | 4 |
| Countersunk Fixing Holes | 4 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 45mm |
| Middle to Bottom Fixing Hole | 26mm |
| 2nd to 4th Fixing Hole | 24mm-34mm |
