£32.95 Out of stock
This part is discontinued and is no longer available.
However, part: MA80010SA is a potential alternative. The locking points on the replacement Millenco MA80010SA are a very close match for locking point positions. We’d recommend using a full length keep to match the replacement lock.

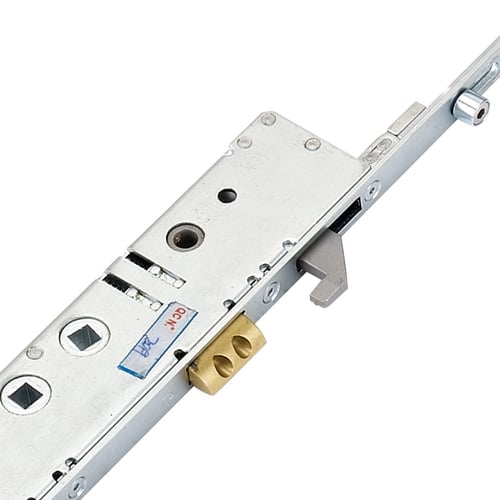

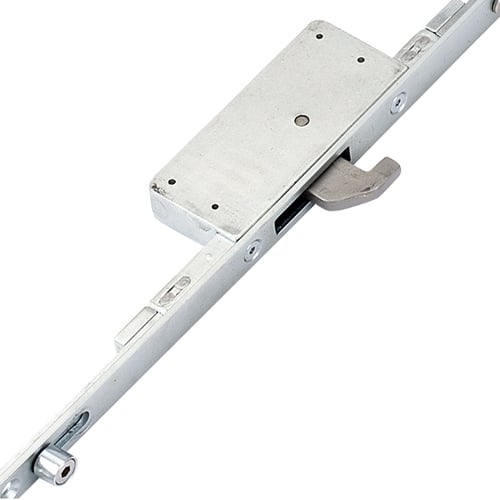

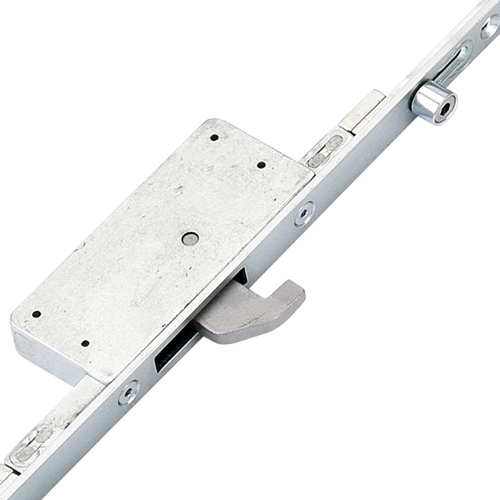

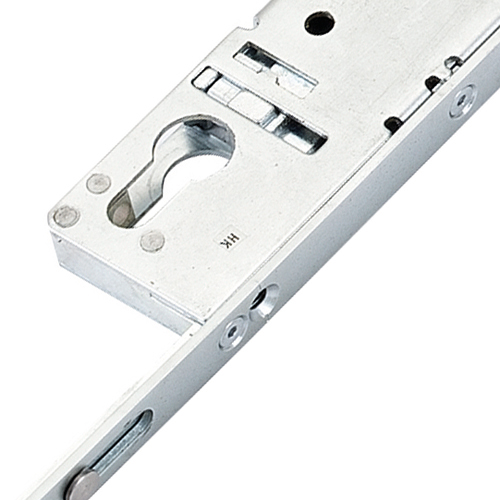

A unique multipoint lock with a hook immediately above the latch. Full length keeps are required for this lock because of the unique set of locking points.
Operation: Double Spindle
| Manufacturer | Fab and Fix |
|---|---|
| Discontinued | Yes |
| Backset | 35mm |
| Centres PZ | 92mm/62mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 3 |
| Hooks | 3 |
| Main Gearbox | Latch and hookbolt |
| Operation | Double Spindle |
| Shootbolt Attachments | No |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

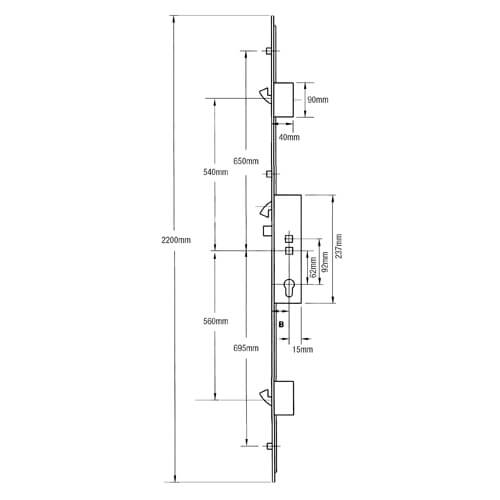

| Distance Between Inner Locking Points | 1105mm |
| Distance Between Outer Locking Points | 1345mm |
| Height | 2200mm |
| Top Hook To Spindle | 540mm |
| Bottom Hook To Spindle | 560mm |
| Top Roller To Spindle | 650mm |
| Bottom Roller To Spindle | 695mm |
