Fix Asgard 7026 Latch 3 Hooks Double Spindle Multipoint Door Lock – Option 3 (top hook to spindle = 565mm)

SKU: ASG7026config

£39.55 Out of stock

SKU: ASG7026config Category: Brand:

Description

This part is discontinued and is no longer available.

However, part: ASGARDCASE35 is a potential alternative. There is no direct replacement for this lock so we’d recommend a replacement gearbox. If a full length lock is required, then a V-MPL repair product would be the best option.

Part: YS1353H16F is also a potential alternative. Some modification is required, hooks will need re-positioning, keeps may need replacing and if offset handles are in place they will need replacing with inline 92PZ handles. Speak with Technical for assistance.

Part: YADMPRO35 is additionally a potential alternative. New Strike & Keeps are supplied. If offset handles are in place they’ll need replacing with 92PZ furniture.

Additional information

Manufacturer

Fix Asgard

Discontinued

Yes

Backset

35mm

Centres PZ

92mm/70mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Hooks

3

Main Gearbox

Latch and hookbolt

Operation

Double Spindle

Spindle

Double 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

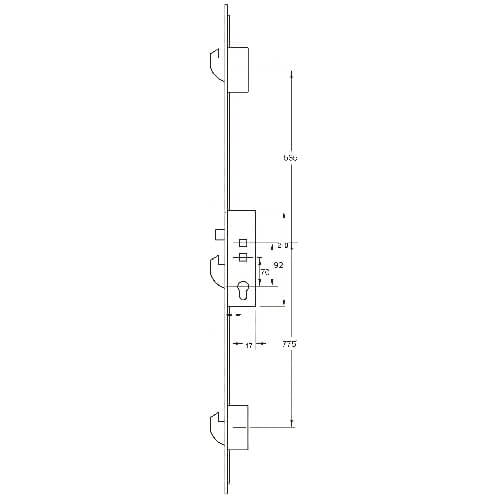

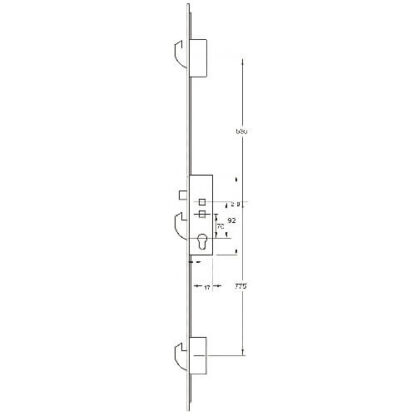

Distance Between Inner Locking Points

1340mm

Height

2050mm

Top Hook To Spindle

565mm

Bottom Hook To Spindle

775mm
