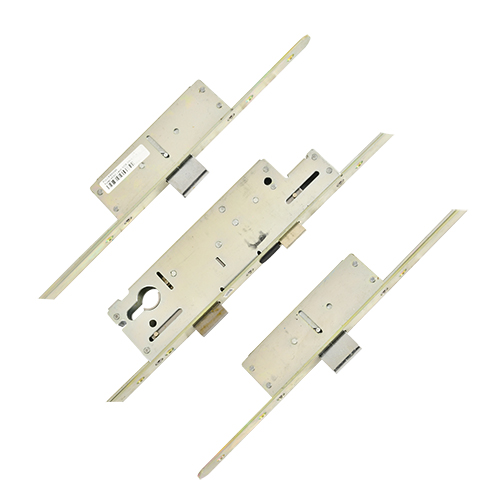

This Fullex Key Wind multipoint door lock features 3 Deadbolts & 1 Latch.
Based on the Fullex Crimebeater, the Fullex Key Wind lock is designed for timber and composite doors and comes as a full solution for a pull handle door. The lock uses the key or the thumbturn to engage and retract the bolts and the latch.
This new lock was developed to stop anyone getting in without a key when the door is closed. Once the door is closed you cannot move the latch unless you have a key. In contrast to many key wind locks, the Fullex lock requires only half a turn to fully lock the door.
Available with 3 deadbolts and 2 hooks with a 20mm steel faceplate.
Fullex Crimebeater multipoint door locks are available as either a deadbolt or hookbolt variant, but the locking points are in the same position, regardless of which version you choose. Identifying a Fullex Crimebeater is largely the same as identifying a Fullex XL lock. Very early versions of this lock did not have Fullex stamped on the faceplate, but checking the gearbox will help identify the lock. The top corner is cut off and it will feature a latch and deadbolt (XL series locks feature a latch and hookbolt).

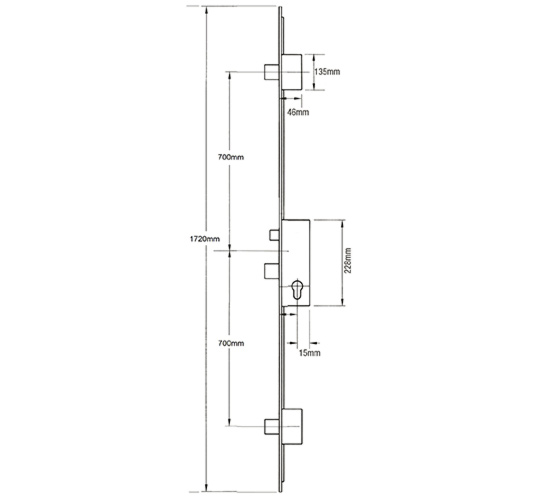

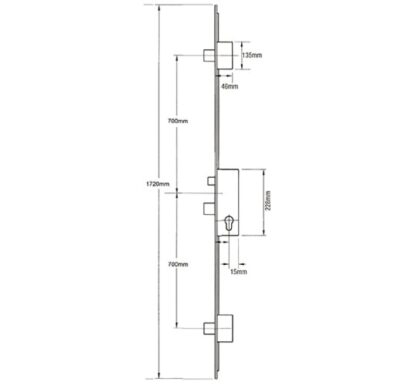

In common with other Crimebeater locks, the top hook will measure 686mm from the top spindle in the gearbox. The bottom hook will measure 714mm to the top spindle.
Fullex Key Wind gearboxes are available in 45mm and 55mm backset only.
Crimebeater gearboxes measure 227mm high by the backset + 15mm. These gearboxes feature a deadbolt and latch. The latch is 24mm hight, the deadbolt is 30mm high and the distance from the bottom of the latch to the top of the deadbolt is 72mm.
Crimebeater gearboxes also feature a snib on the faceplate that can be used to hold back the latch.
Crimebeater external deadbolts are manufacture red from chrome plated A3 hardened cast steel.
Operation: Key Wind
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Turn the key to throw and engage or “wind” out the locking points.
To unlock the door
1. Turn the key to unlock the door by “unwinding” the locking points.
2. A further quarter turn of the key will retract the latch.
- Corrosion Resistance
-
BS EN 1670 Grade 4 for 240 hours
-
Cycle Operation
-
Cycle tested to 50,000 operations
-
Meets the requirements of Secured by Design and can be used on a PAS24 compliant door set.
We stock a range of associated products for Fullex Key Wind multipoint door locks, including keeps, spindles, handles and accessories.
You may find this lock used as a timber door lock or a composite door lock.
