£43.00 Out of stock
This part is discontinued and is no longer available.
However, part: UM3D5085 is a potential alternative. Please note that this alternative has a 50mm backset and 85mm centres, some alterations will have to be made to fit but this is the closest alternative available.
Operation: Double Spindle
To lock the door
| Manufacturer | Gridlock |
|---|---|
| Discontinued | Yes |
| Backset | 45mm |
| Centres PZ | 92mm/62mm |
| Faceplate | U-Rail 22mm |
| Spindle Size | 8mm |

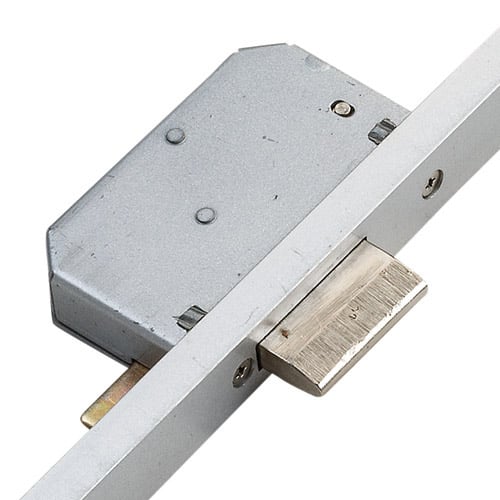

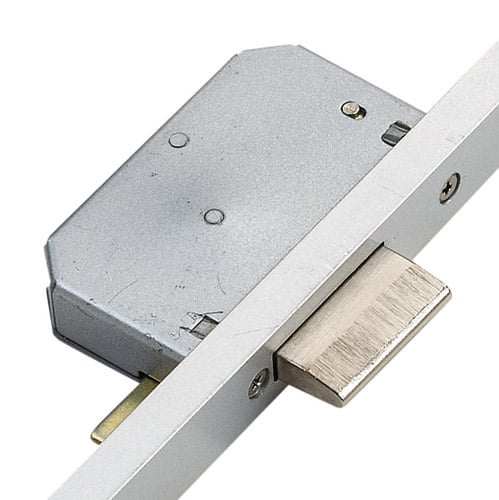

| Deadbolts | 3 |
| Main Gearbox | Latch and deadbolt |
| Operation | Double Spindle |
| Shootbolt Attachments | No |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

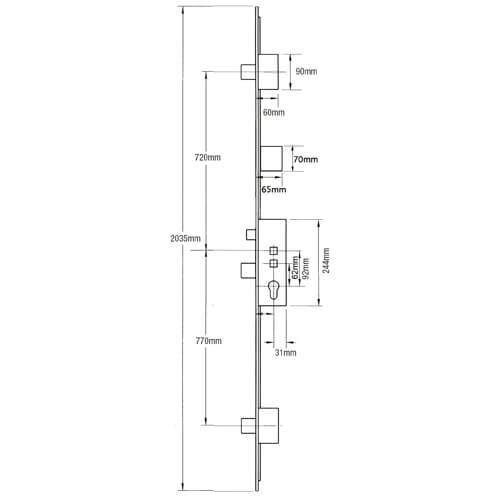

| Distance Between Inner Locking Points | 1490mm |
| Height | 2035mm |
| Top Deadbolt To Spindle | 720mm |
| Bottom Deadbolt To Spindle | 770mm |
