Description
This part is discontinued and is no longer available.
However, part: 2413351 is a potential alternative. This lock will need the hooks to be repositioned and new keeps fitted. Order parts 1025113 with 1038009/1038017.
GU Europa Latch 3 Deadbolts Lift Lever Multipoint Door Lock – Option 1
SKU: 63275403config
£37.89 Out of stock
Additional information
| Manufacturer | GU |
|---|---|
| Centres PZ | 92mm |
| Deadbolts | 3 |
| Latch | 1 |
| Operation | Lift Lever |
| Shootbolt Attachments | No, Yes |
| Discontinued | Yes |
| Backset | 55mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Main Gearbox | Latch and deadbolt |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

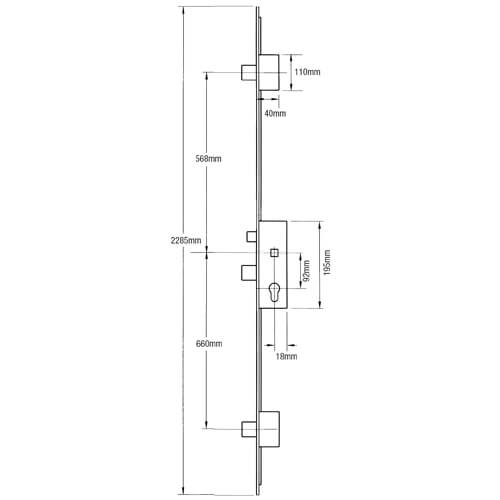

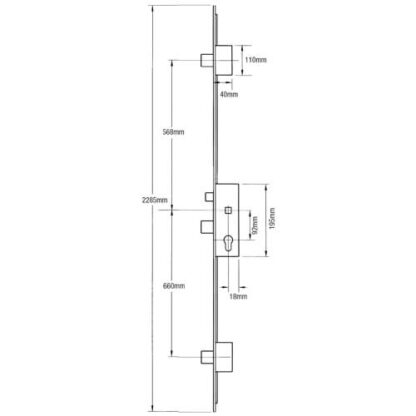

| Distance Between Inner Locking Points | 1228mm |
| Height | 2285mm |
| Top Deadbolt To Spindle | 568mm |
| Bottom Deadbolt To Spindle | 660mm |
