GU Europa Latch 3 Deadbolts Lift Lever Multipoint Door Lock – Option 2 (top deadbolt to spindle = 730mm)

SKU: 63221903config

£32.22 Out of stock

SKU: 63221903config Categories: , Brand:

Description

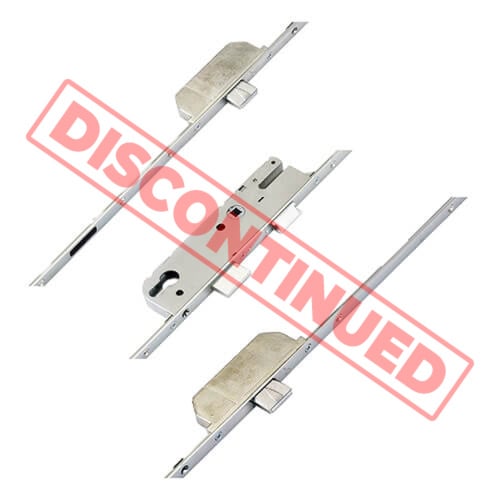

This part is discontinued and is no longer available.

However, part: ASG7024 is a potential alternative. This lock has hooks, advise customer keeps and strikes may need replacing to accept hook bolts.

Part: GUCASE28 is also a potential alternative. As this lock is discontinued, we’d recommend a replacement gearbox. If a full, replacement lock is required, a VERSA V-MPL repair lock can be used. Some adjustments will be required but it is supplied with keeps for any new locking positions.

Part: V-MPL30 is additionally a potential alternative. Comes complete with keeps.

Additional information

Manufacturer

GU

Discontinued

Yes

Backset

30mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Deadbolts

3

Latch

1

Main Gearbox

Latch and deadbolt

Operation

Lift Lever

Shootbolt Attachments

No

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

Distance Between Inner Locking Points

1600mm

Height

2285mm

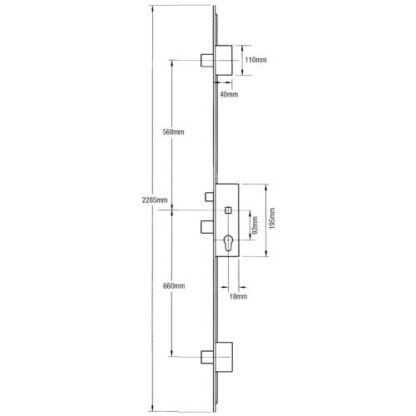

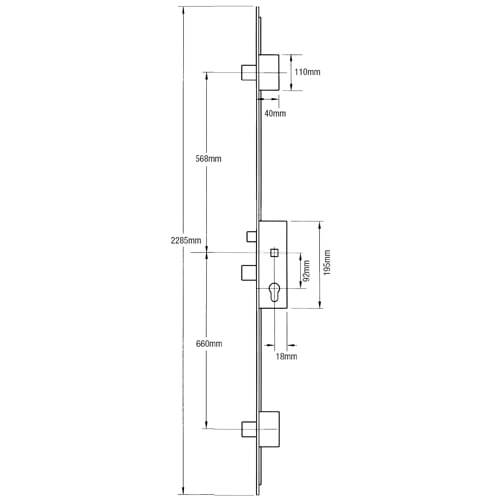

Top Deadbolt To Spindle

730mm

Bottom Deadbolt To Spindle

870mm
