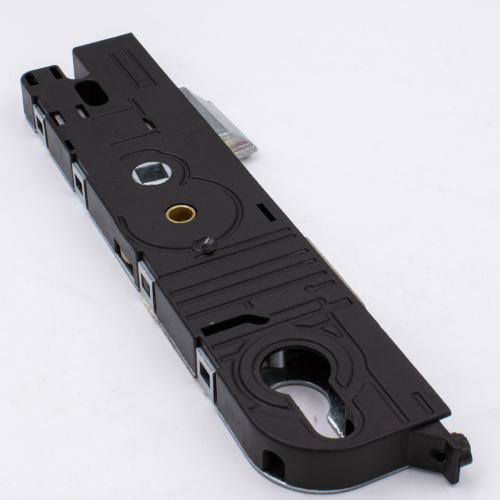

GU New Style Genuine Multipoint Gearbox – Lift Lever

GU genuine gearbox to suit new style GU locks only, not compatible with old style versions.

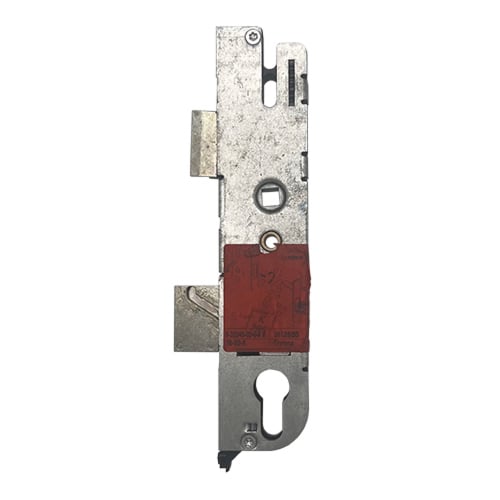

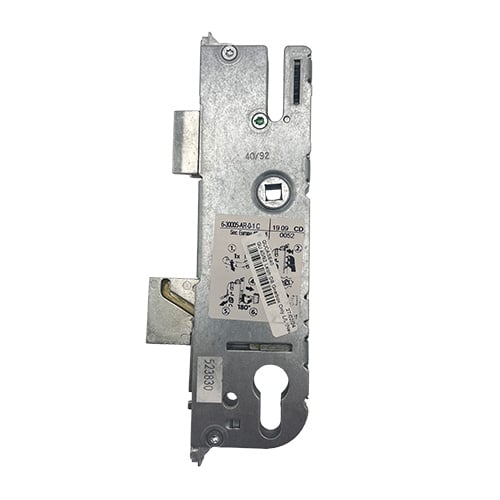

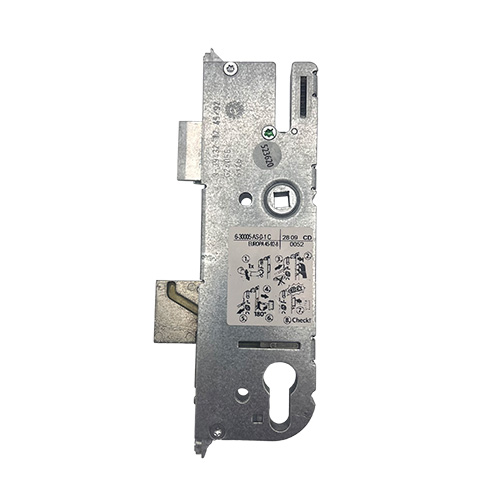

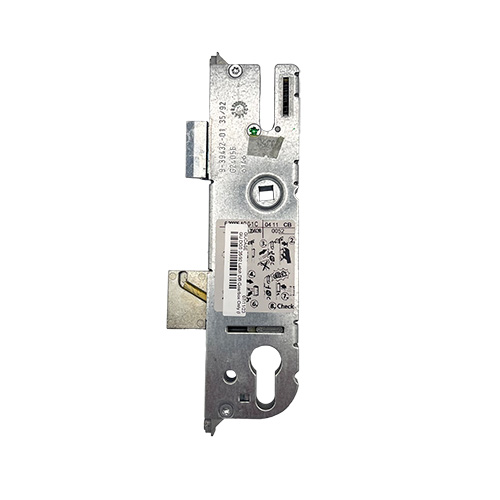

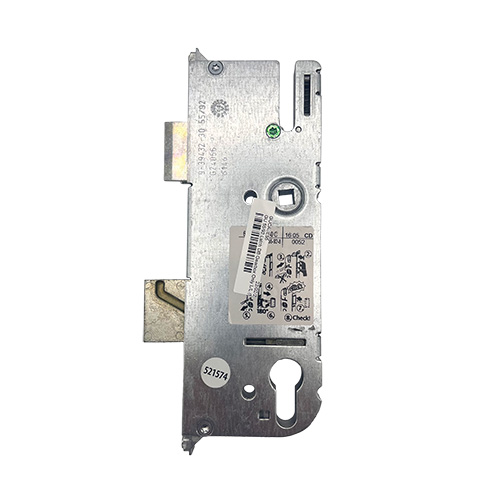

New style GU gearboxes are available in a variety of different operations and are one of the biggest ranges of backsets on the market. They are available in 28mm, 35mm, 40mm, 45mm and 55mm backsets with lift lever function, 35mm and 45mm with split spindle function, and 35mm only with the Europa Plus fast locking function.

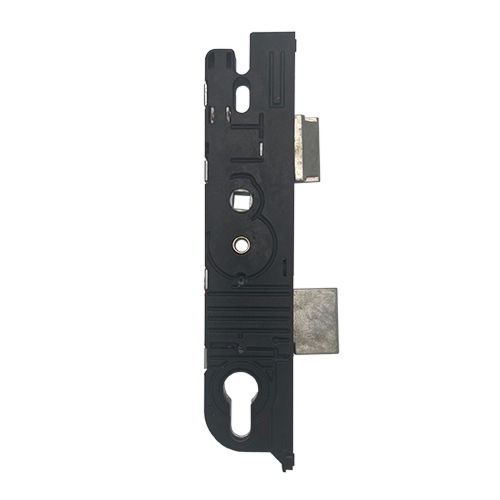

New style GU locks can be differentiated from their old style equivalents by the shape at the top of the gearbox. Old style locks have the top corner removed, whereas new versions feature a vertical groove to help with bolts for handles. The two gearboxes are not compatible, so a new style gearbox will not fit on an old style multipoint lock.

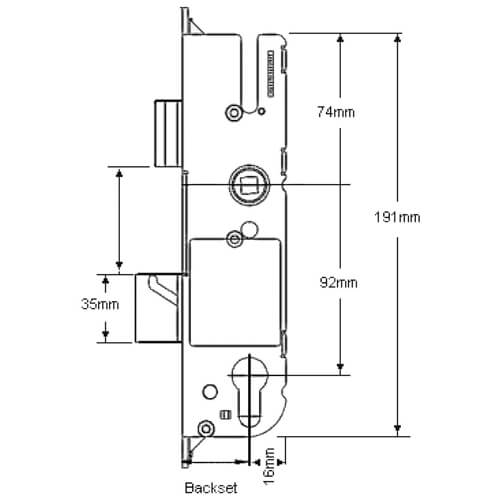

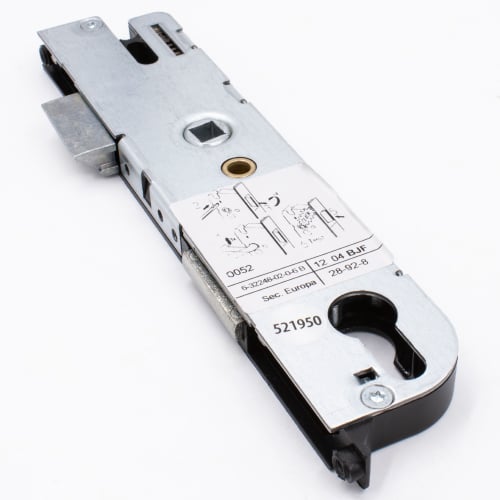

GU multipoint lock gearboxes feature a latch and deadbolt and measure 191mm high (excluding the fixing lugs) by the backset + 16mm wide. The latch is 32mm high, the deadbolt measures 35mm high and there is 54mm from the bottom of the latch to the top of the deadbolt.
