£25.05 Out of stock

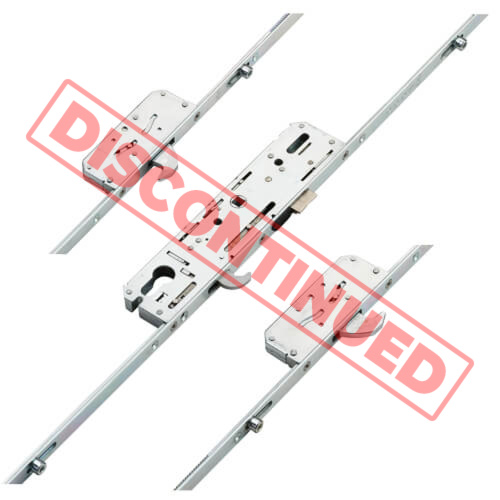

This part is discontinued and is no longer available.
However, part: FUXL3H4R35 is a potential alternative. We’d recommend the Fullex FUXL3H4R35 as the closest replacement for this lock. The Fullex is a 35mm backset, split spindle lock with a hook in the central gearbox. The external hooks and outbound rollers match up, with a little adjustment. The inboard rollers are approximately 300mm further apart, so the keeps will need to be moved.
Operation: Double Spindle
To lock the door
| Manufacturer | GU |
|---|---|
| Discontinued | Yes |
| Backset | 35mm |
| Centres PZ | 92mm/62mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 4 |
| Hooks | 3 |
| Main Gearbox | Latch and hookbolt |
| Operation | Double Spindle |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |
| Distance Between Inner Locking Points | 990mm |
| Distance Between Outer Locking Points | 1600mm |
| Height | 1950mm |
| Top Hook To Spindle | 735mm |
| Bottom Hook To Spindle | 755mm |
| Top Roller To Spindle | 845mm |
| Bottom Roller To Spindle | 855mm |
