Price range: £19.00 through £29.23 In stock

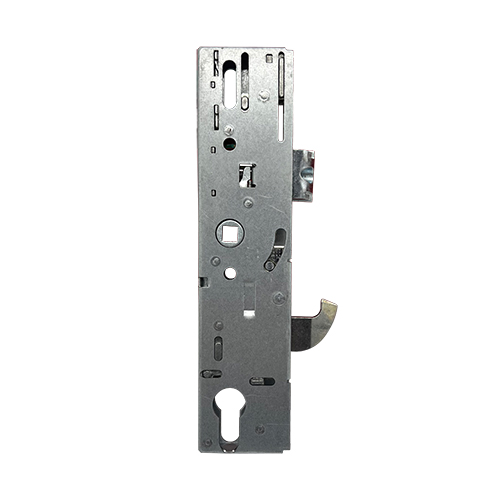

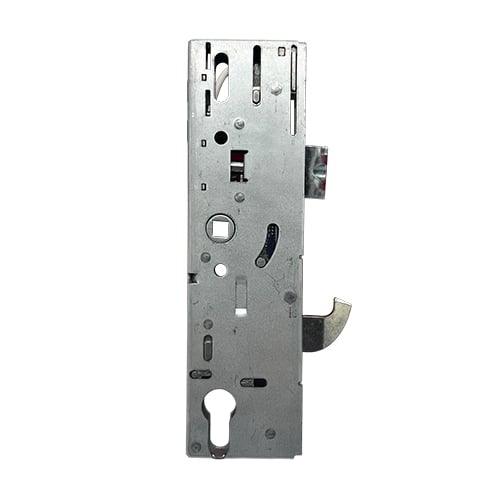

This IG Doors gearbox is available in 35mm and 45mm backsets. The lock features a latch and hook bolt.

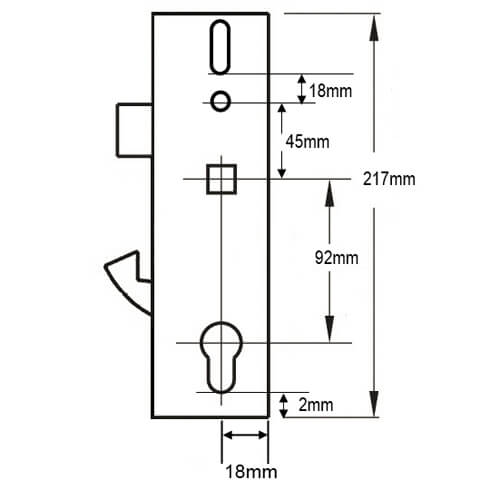

It measures 217mm high by backset +18mm wide. The latch is 28mm high and there is 52mm from the bottom of the latch to the top of the hook. The hook measures 28mm high.

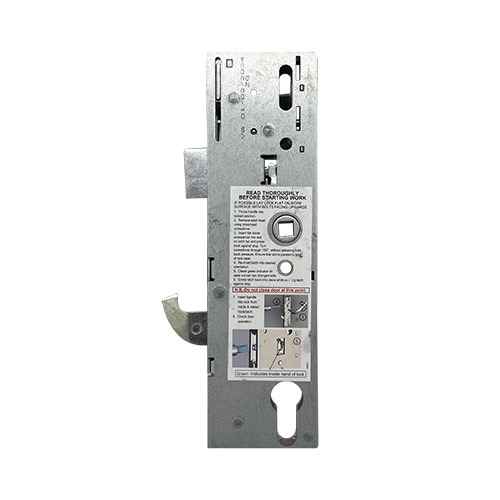

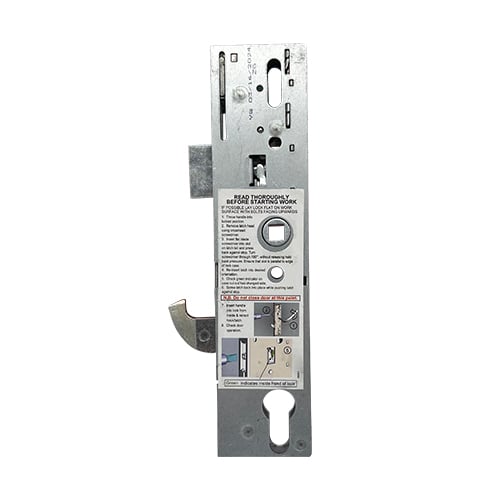

It’s worth noting that the latch reversal instructions are printed on a sticker on the side of the gearbox.
Operation: Lift lever or split spindle
| Manufacturer | IG Doors |
|---|---|
| Backset | 35mm, 45mm |
| Centres PZ | 92mm |
| Width | 53mm, 63mm |
| Height | 217mm |
| Main Gearbox | Latch and hookbolt |
| Operation | Lift Lever Or Split Spindle Nightlatch |
| Spindle | Split 8mm |
| Type | Gearbox |
| Handing | Not Handed |
| Cylinder Type | Euro |
| Genuine/Copy | Genuine |
| Packaging | Single |
