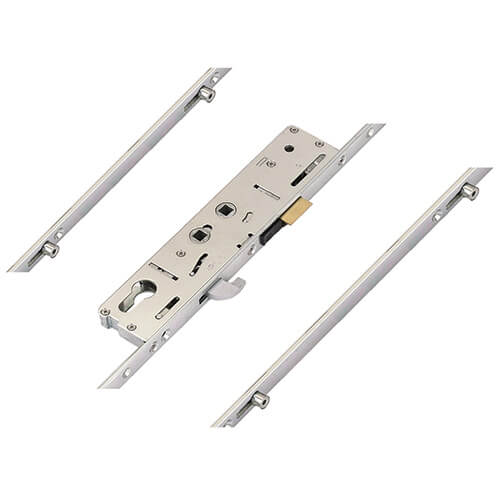

This Kenrick Excalibur multipoint door lock features 4 Rollers & 1 Latch.
This Kenrick lock features a latch, hook, 4 rollers and a double spindle nightlatch function.

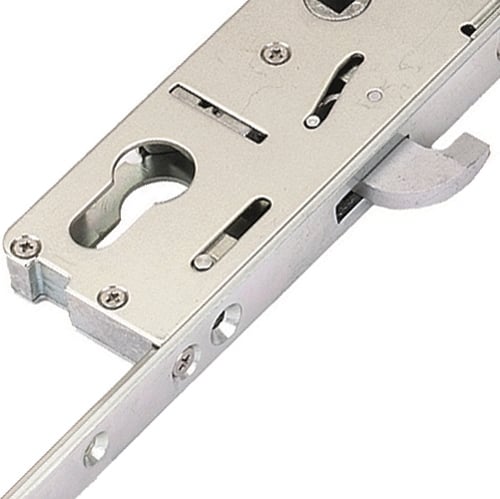

Identifying a Kenrick Excalibur multipoint door lock can be tricky as there are a number of other manufacturers with very similar gearboxes. If your lock is still in the door, it’ll likely have the brand stamped on the faceplate. Some models also have the Secured By Design logo stamped on the faceplate too. You can double check by looking for a small black snib below the latch. Other manufacturers, such as ERA and Ingenious, also feature a holdback snib on the latch, so the snib isn’t a guarantee. All Kenrick Excalibur multipoint locks feature a central hook that throws upward, rather than a deadbolt.
We’d always recommend removing the multipoint from the door to help identify it. This is especially important if you can’t identify the brand from the faceplate or it has been rebranded.

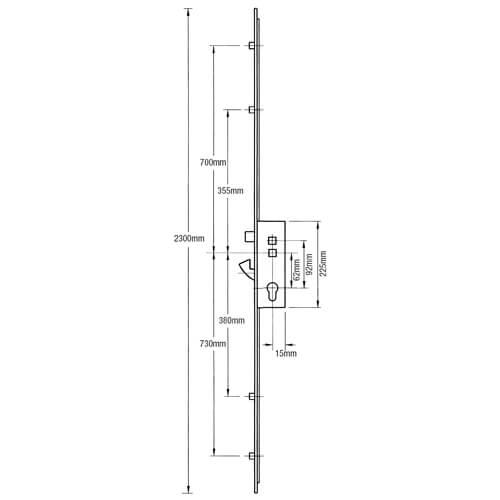

Kenrick Excalibur gearboxes are available with either a single or double spindle (follower) gearbox. They will have centres at either 92mm or 62mm and 92mm. Both followers are sprung so you have the option of using sprung or unsprung door handles.
The overall height is 225mm and they are fixed to the faceplate with 3 screw holes.
Kenrick Excalibur gearboxes have a hole above the top spindle, 21mm from the top of the case that can be used for bolt through handle fixings. The top spindle is 128mm from the bottom of the gearbox, to assist when identifying suitable handles.
When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

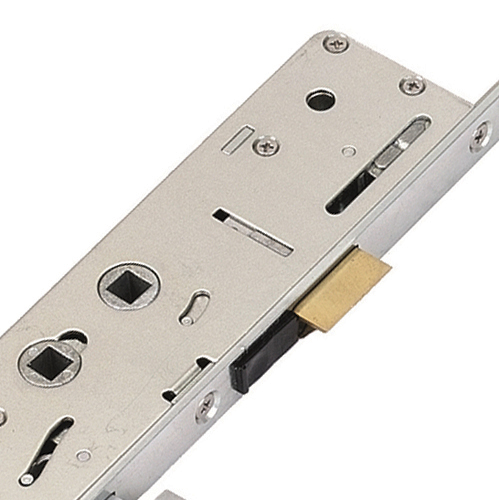

Kenrick Excalibur multipoint door gearboxes feature a small, plastic snib on the faceplate. This can be used to hold the latch back for convenience and to prevent accidental lock outs.
Kenrick Excalibur gearboxes do bear a resemblance to the Fullex XL series and Ingenious gearboxes. However, both Ingenious and Fullex XL multipoint gearboxes are 230mm, so 5mm larger than a Kenrick Excalibur.

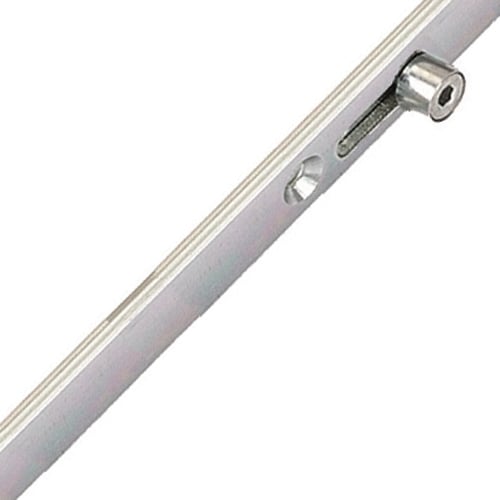

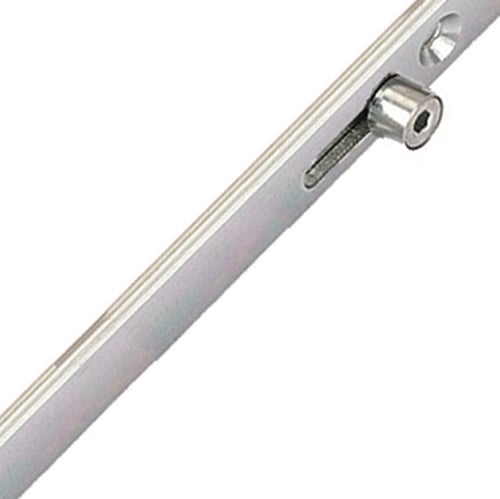

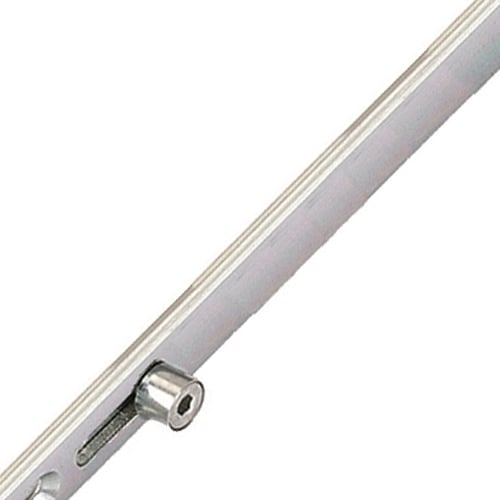

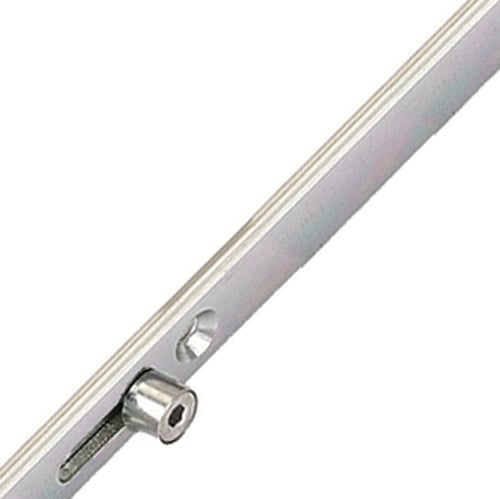

Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.
Rollers are normally adjustable by 1-2mm to help achieve optimum weather sealing.
Operation: Double Spindle
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Lift the handle up to engage the locking points.
3. Lock the system by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.
- Kenrick Excalibur locks are an approved Secured by Design supplier and some models are designed to be compatible with PAS24. Please contact us for more information.
-
Kenrick Excalibur locks are tested to 100,000 cycles.
-
They are also tested to a minimum of 240 hours salt spray testing, exceeding BS EN 1670:2007
We stock a range of associated products for Kenrick Excalibur multipoint door locks, including keeps, spindles, handles and accessories.
Latch Reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.
You may find this lock used as an UPVC door lock or an aluminium door lock.
