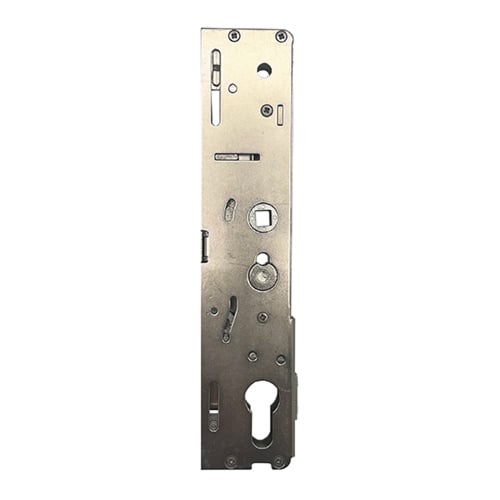

Kenrick Excalibur Passive Genuine Multipoint Gearbox – Single Spindle Version

This is the single spindle version of the Kenrick passive gearbox for use on French doors and featuring a sprung spindle.

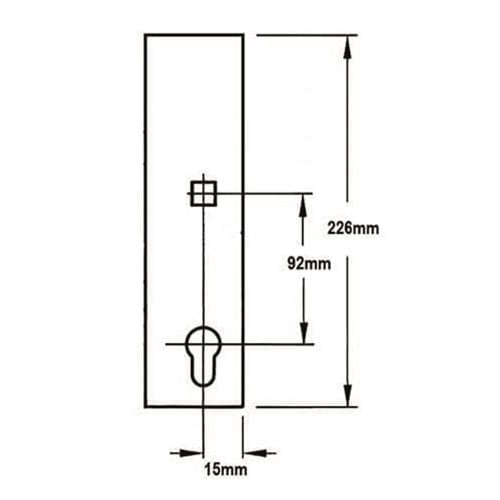

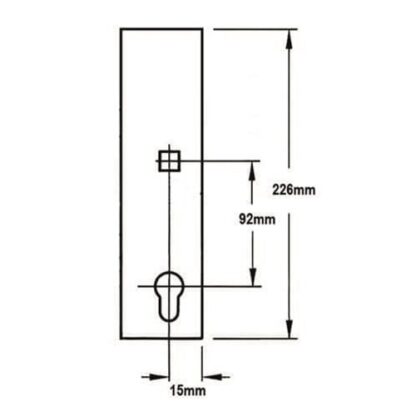

Kenrick Excalibur gearboxes are available with either a single or double spindle (follower) gearbox. They will have centres at either 92mm or 62mm and 92mm. Both followers are sprung so you have the option of using sprung or unsprung door handles.

The overall height is 225mm and they are fixed to the faceplate with 3 screw holes.

Kenrick Excalibur gearboxes have a hole above the top spindle, 21mm from the top of the case that can be used for bolt-through handle fixings. The top spindle is 128mm from the bottom of the gearbox, to assist when identifying suitable handles.
