KFV Latch Deadbolt 2 Pin Bolts Lift Lever Multipoint Door Lock (top pin to spindle = 730mm)

SKU: AS435025config

Price range: £0.00 through £64.29 Out of stock

SKU: AS435025config Categories: , Brand:

Description

This part is discontinued and is no longer available.

However, for part AS435025: FU856T825 is a potential alternative. This alternative has 2 additional rollers, so additional keeps are required.

For part AS435030: FU856T130 is a potential alternative. This has 2 additional rollers, so additional keeps are required. Otherwise, the lock is a good match with minimal work required to the door. Part: FU856T830 is also a potential alternative. Similar product different brand. Also has 2 rollers so will need 2 x roller keeps

Additional information

Manufacturer

KFV

Centres PZ

92mm

Pin Bolts

2

Deadbolts

1

Latch

1

Operation

Lift Lever

Shootbolt Attachments

No

Discontinued

Yes

Backset

25mm, 30mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Main Gearbox

Latch and deadbolt

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

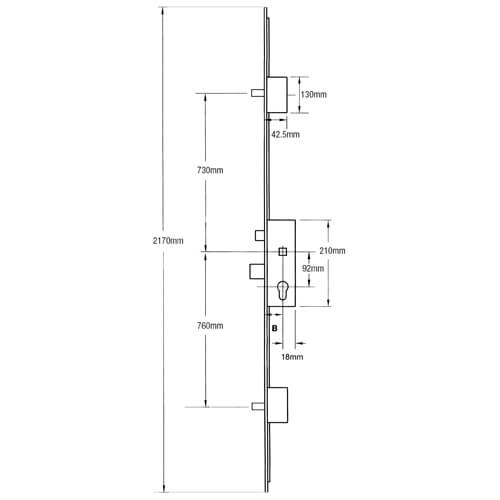

Distance Between Inner Locking Points

1490mm

Height

2170mm

Top Pin To Spindle

730mm

Bottom Pin To Spindle

760mm
