Lockmaster Latch Deadbolt 4 Hooks 2 Anti Lift Pins 2 Rollers Lift Lever or Double Spindle Multipoint Door Lock

SKU: LM435Sconfig

Price range: £53.10 through £80.47 Out of stock

SKU: LM435Sconfig Categories: , Brand:

Description

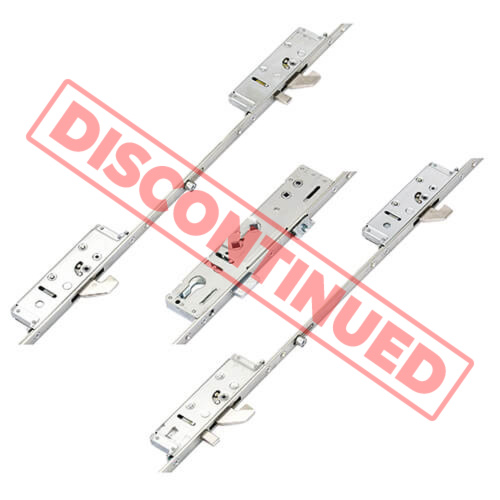

This part is discontinued and is no longer available.

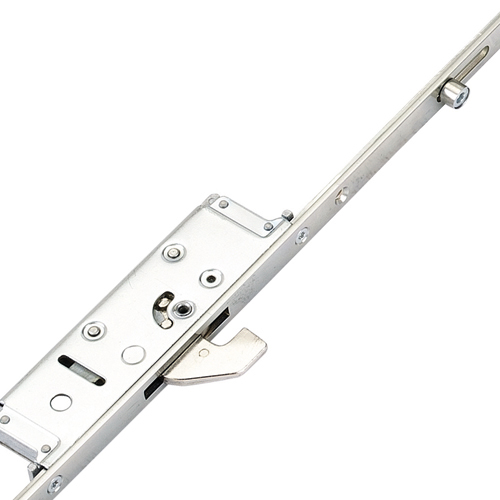

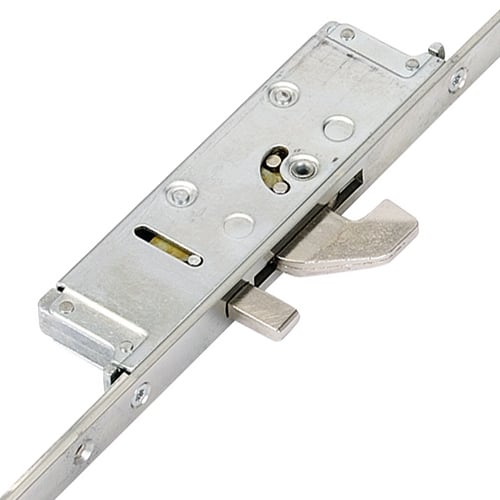

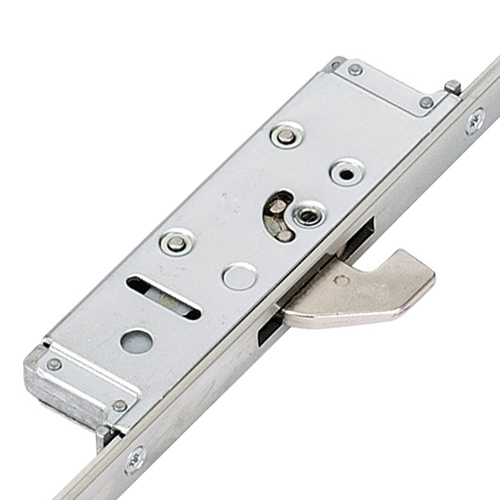

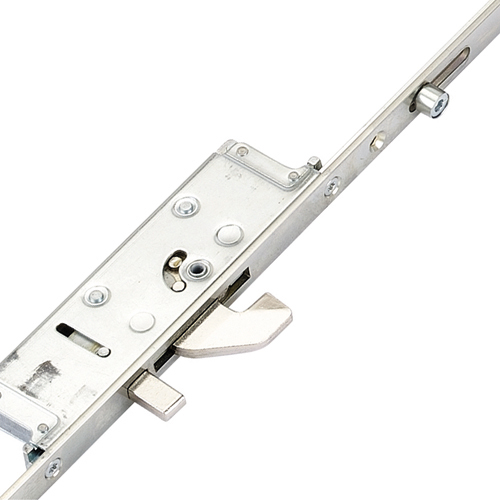

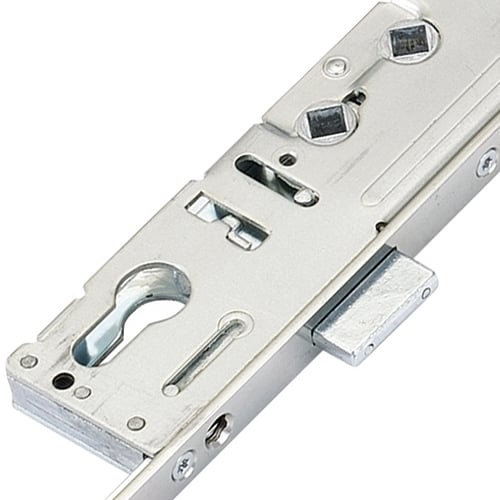

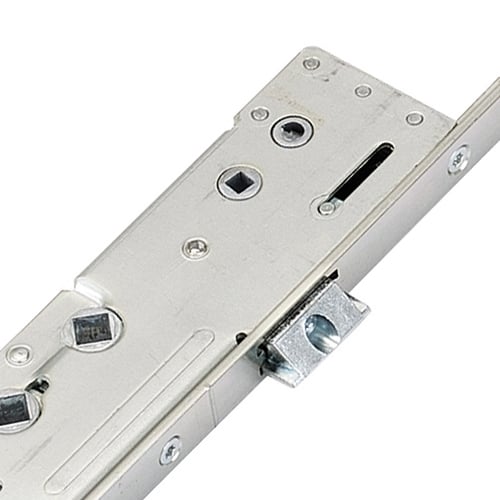

However, for part LM435: LM335 is a potential alternative. The LM435 lock featured 4 hooks, 2 of which had anti lift pins and 2 rollers. We suggest the LM335 as the closest replacement. Its an identical lock, but it only has 2 hooks, with anti lift pins and 2 rollers. The locking points are in the same places.

For part LM435S: LM335S is a potential alternative. The LM435S lock featured 4 hooks, 2 of which had anti lift pins and 2 rollers. We suggest the LM335S as the closest replacement. Its an identical lock, but it only has 2 hooks, with anti lift pins and 2 rollers. The locking points are in the same places.

Additional information

Manufacturer

Lockmaster

Centres PZ

92mm, 92mm/62mm

Hooks

4

Deadbolts

1

Latch

1

Anti Lift Bolts

2

Operation

Double Spindle, Lift Lever, Lift Lever Or Double Spindle Nightlatch

Shootbolt Attachments

No

Discontinued

Yes

Backset

35mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Rollers

2

Main Gearbox

Latch and deadbolt

Spindle

Double 8mm, Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

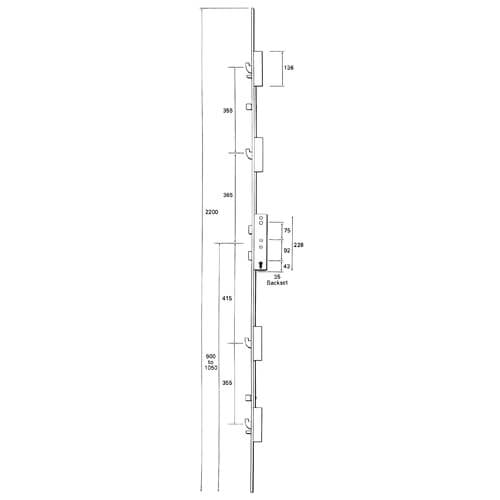

Distance Between Inner Locking Points

780mm

Distance Between Outer Locking Points

1490mm

Height

2200mm

Top Hook To Spindle

720mm

Bottom Hook To Spindle

770mm

Top Roller To Spindle

528mm

Bottom Roller To Spindle

647mm
