Price range: £47.61 through £62.39 Out of stock
This part is discontinued and is no longer available.
However, for part MA53420: MA51400 is a potential alternative. Same product but has 2 rollers only.
Part: MA53430 is also potential alternative. Same product but has 2 hooks.
Part: MGTS282H2R is additionally a potential alternative. This lock features the hooks in same position but new roller keeps will need to be fitted. Order code E11637. This lock is not shootbolt compatible.
| Manufacturer | Maco |
|---|---|
| Discontinued | Yes |
| Backset | 28mm, 35mm, 45mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Pin Bolts | 2 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

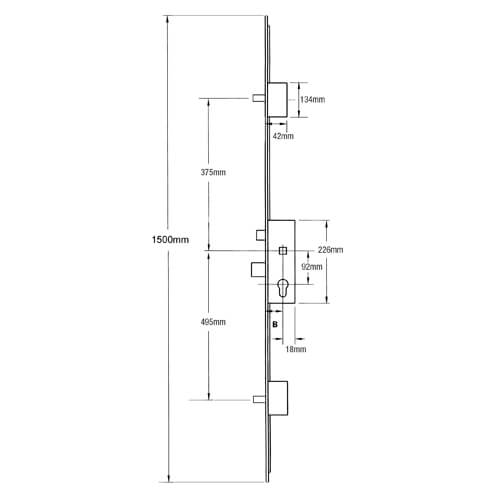

| Distance Between Inner Locking Points | 870mm |
| Height | 1500mm |
| Top Pin To Spindle | 375mm |
| Bottom Pin To Spindle | 495mm |
