Maco Latch Deadbolt 2 Rollers 2 Hooks Lift Lever Multipoint Door Lock

SKU: MA53501config

Price range: £55.79 through £59.13 Out of stock

SKU: MA53501config Categories: , Brand:

Description

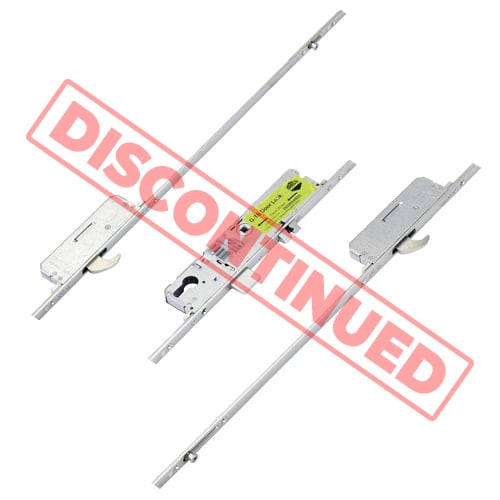

This part is discontinued and is no longer available.

However, for part MA53500: MGTS282H2R is a potential alternative. This lock is a close replacement. It features mushrooms, rather than rollers, so keeps will need to be changed, but they are in the same positions. Hooks are in slightly different positions, so hook keeps will need to be adjusted by 20mm or so.

For part MA53501: MGTS352H2R is a potential alternative. This lock is a close replacement. It features mushrooms, rather than rollers, so keeps will need to be changed, but they are in the same positions. Hooks are in slightly different positions, so hook keeps will need to be adjusted by 20mm or so.

For part MA53503: V-MPLSS45 is a potential alternative. Maco have discontinued this product. The VERSA is the next best replacement.

Additional information

Manufacturer

Maco

Discontinued

Yes

Backset

28mm, 45mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

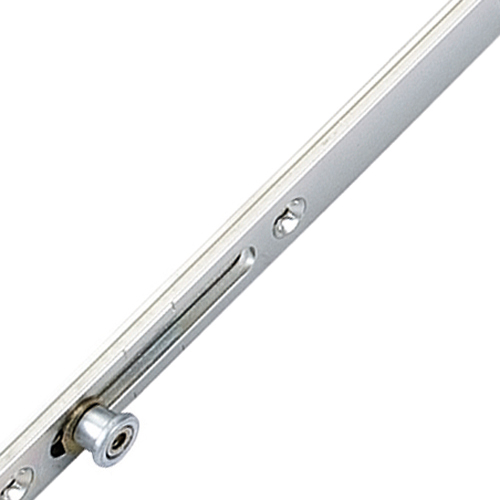

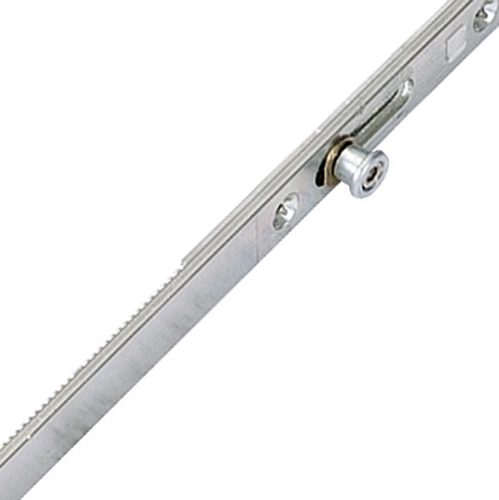

Rollers

2

Hooks

2

Deadbolts

1

Latch

1

Main Gearbox

Latch and deadbolt

Operation

Lift Lever

Shootbolt Attachments

No

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

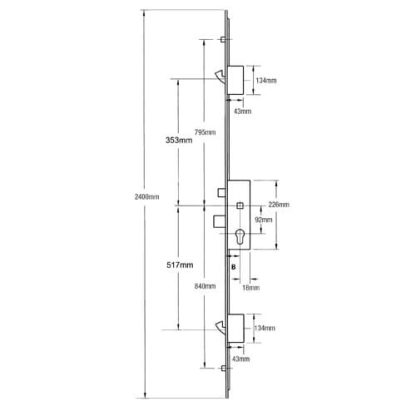

Distance Between Inner Locking Points

870mm

Distance Between Outer Locking Points

1635mm

Height

2400mm

Top Hook To Spindle

353mm

Bottom Hook To Spindle

517mm

Top Roller To Spindle

795mm

Bottom Roller To Spindle

840mm
