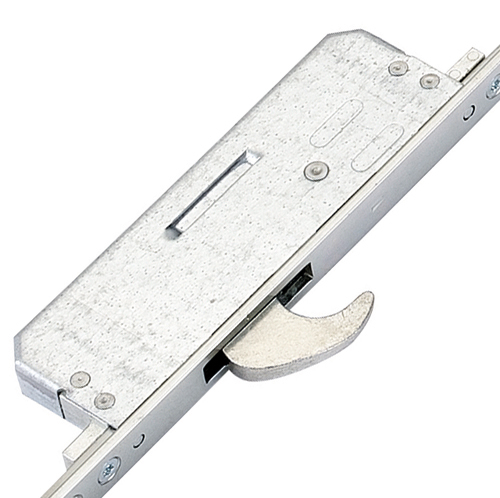

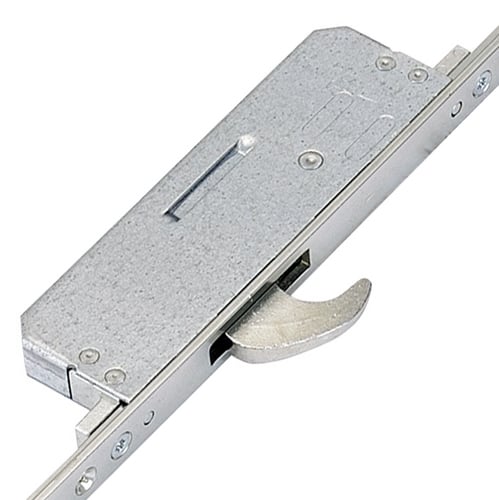

Maco Latch Deadbolt 2 Rollers 2 Hooks Split Spindle Multipoint Door Lock

SKU: MA53502config

£41.61 Out of stock

SKU: MA53502config Categories: , Brand:

Description

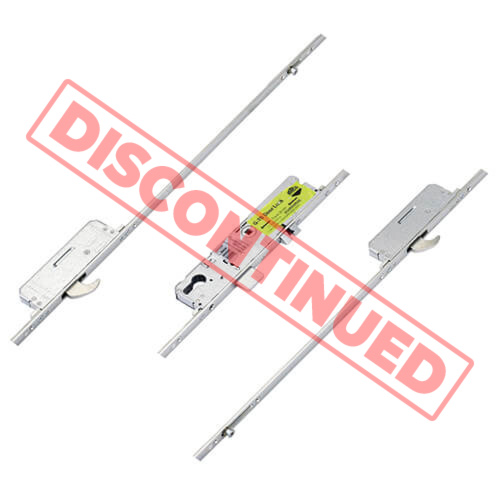

This part is discontinued and is no longer available.

However, for part MA53502: AS797035 is a potential alternative. Pleased be aware that this lock doesn’t have rollers and ISN’T split spindle

Part: V-MPLSS35 is also a potential alternative. There’s no direct replacement for this lock so we’d recommend a VERSA repair lock, which is supplied with replacement keeps. If offset handles have been used, they will need to be replaced with inline handles to suit the VERSA lock.

Additional information

Manufacturer

Maco

Discontinued

Yes

Backset

35mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

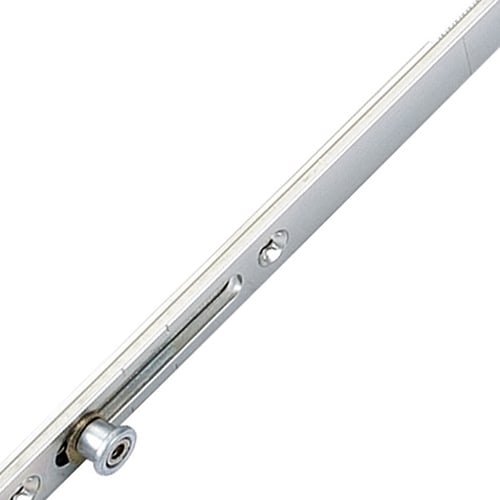

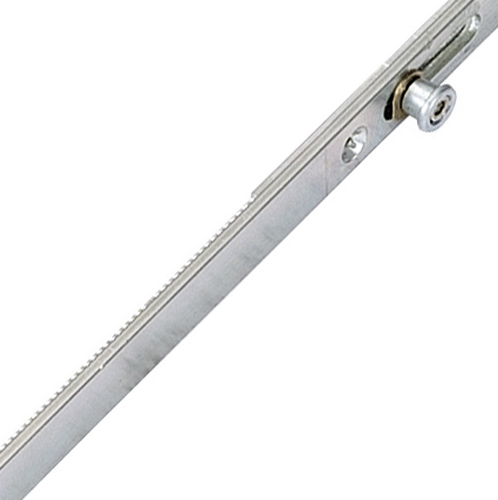

Rollers

2

Hooks

2

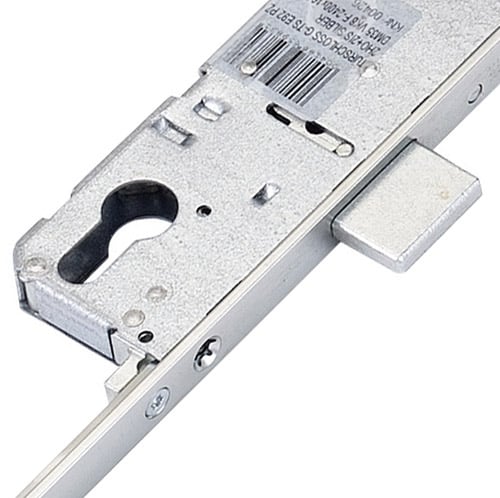

Deadbolts

1

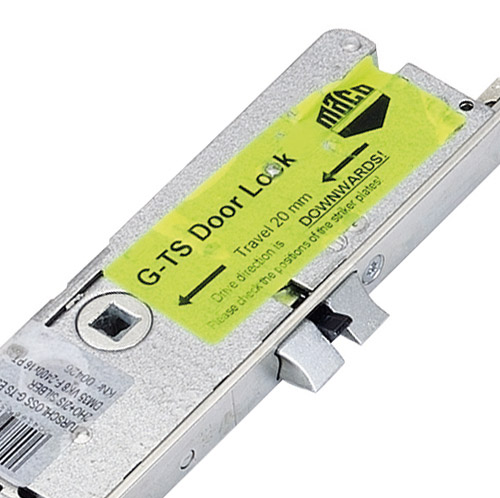

Main Gearbox

Latch and deadbolt

Operation

Split Spindle

Spindle

Split 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

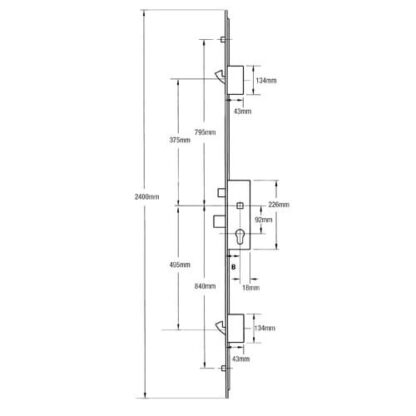

Distance Between Inner Locking Points

875mm

Distance Between Outer Locking Points

1635mm

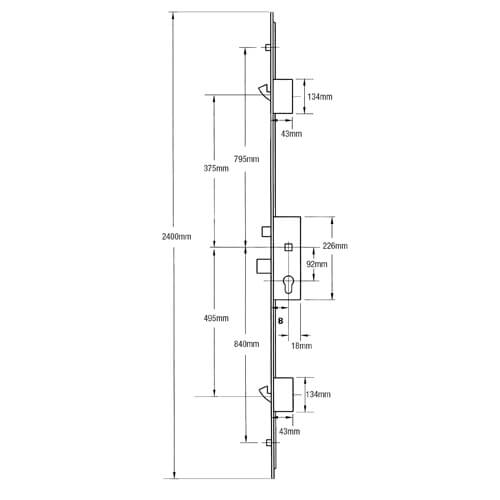

Height

2400mm

Top Hook To Spindle

375mm

Bottom Hook To Spindle

495mm

Top Roller To Spindle

795mm

Bottom Roller To Spindle

840mm
