£48.26 Out of stock
This part is discontinued and is no longer available.
However, part: 1504638 is a potential alternative. This is a close match but the hooks are in slightly different positions. Therefore some adjustment will be required to the keeps to line up with the new lock.
| Manufacturer | Maco |
|---|---|
| Discontinued | Yes |
| Backset | 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |

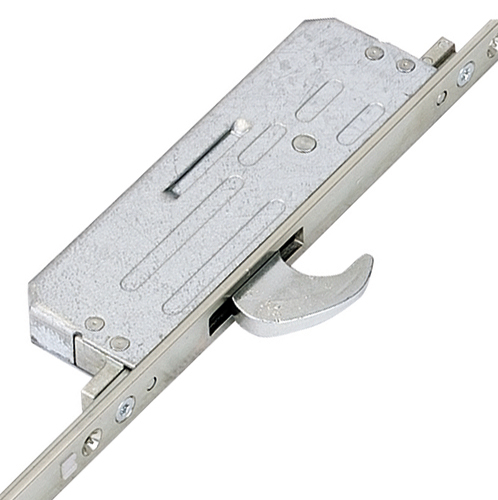

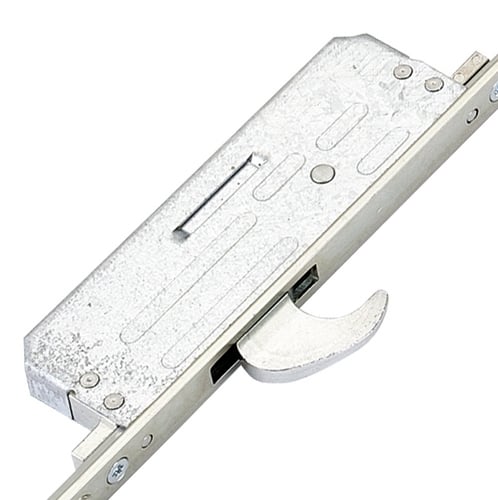

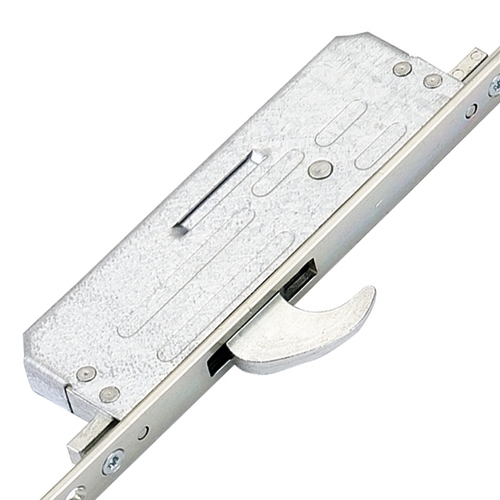

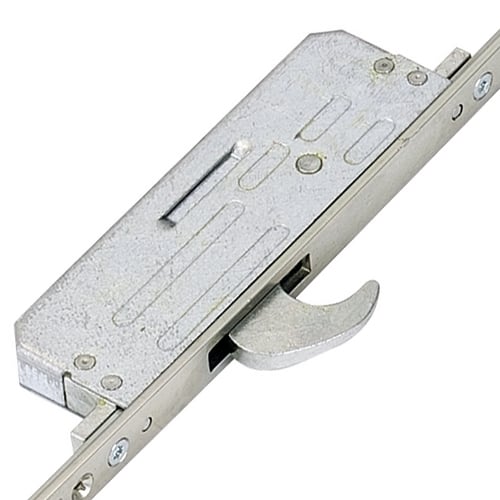

| Hooks | 4 |
| Deadbolts | 1 |
| Latch | 1 |

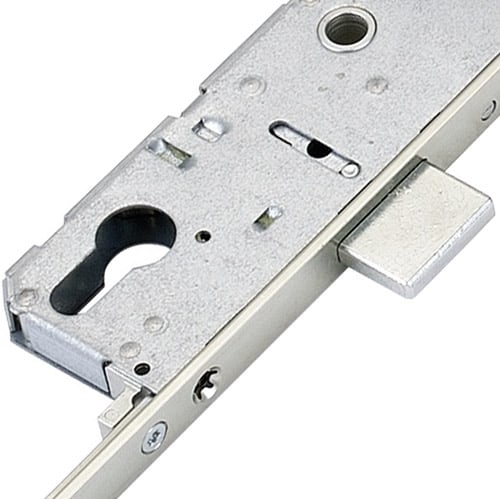

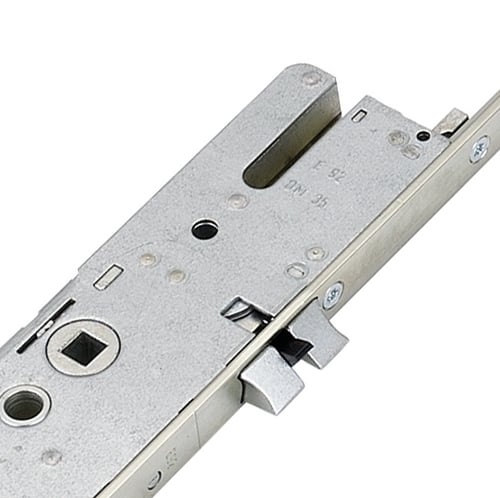

| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

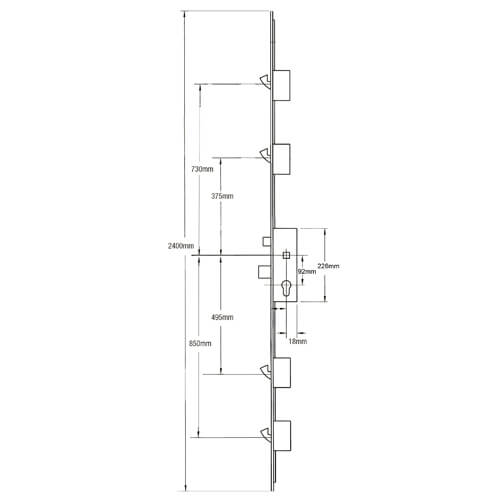

| Distance Between Inner Locking Points | 870mm |
| Distance Between Outer Locking Points | 1580mm |
| Height | 2400mm |
| Top Hook To Spindle | 730mm |
| Bottom Hook To Spindle | 850mm |
