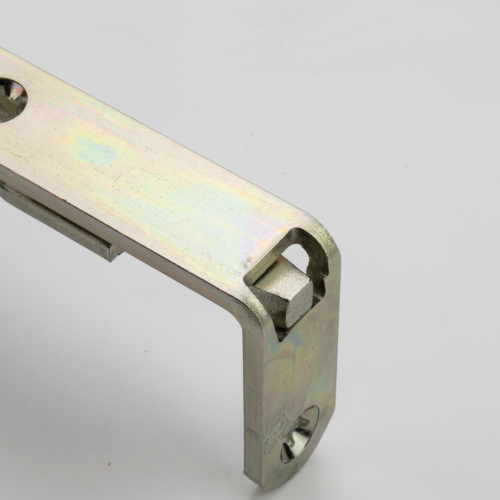

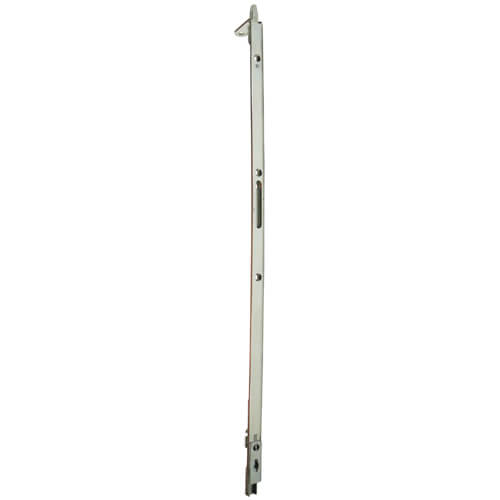

Maco Top Shootbolt – Normal Action – 500mm

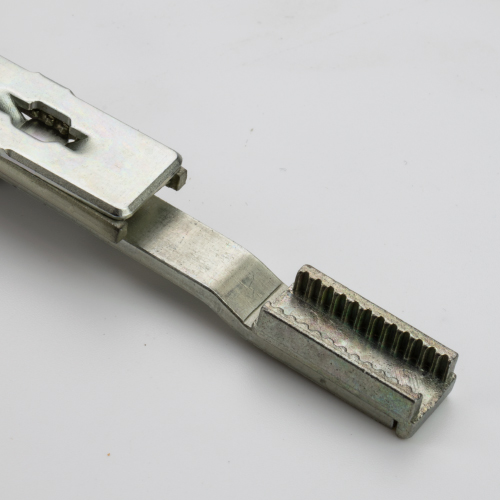

A Maco normal action top shootbolt for use with Maco multipoint locks with serrated drive rods.

The overall faceplate length is 500mm, the width is 16mm and the throw of the shootbolt is 20mm.

A shootbolt keep is not supplied and can be ordered separately, see below ordering codes for the associated keep and equivalent bottom shootbolt.

• RD55185X – Shootbolt keep
• MA4037 – Bottom reverse action shootbolt 500mm
