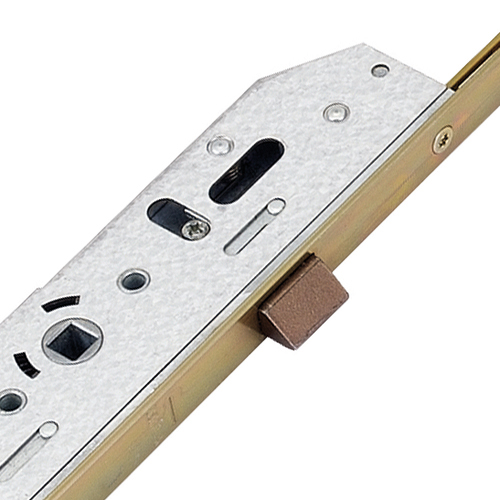

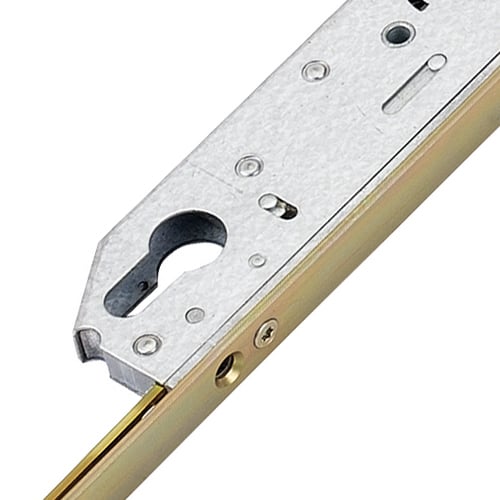

Mila Centre Section Latch 2 Rollers Lift Lever Multipoint Door Lock

SKU: AS47112config

Price range: £23.47 through £30.57 Out of stock

SKU: AS47112config Categories: , Brand:

Description

This part is discontinued and is no longer available.

However, for part AS47112: AS4704728 is a potential alternative. This replacement is the full length equivalent to the original, which was a three part lock. Some adjustment to the keep positions may be required.

Part: 50280019AA is also a potential alternative. Needs an additional deadbolt keep.

For part AS47114: AS47047 is a potential alternative. This replacement is the full length equivalent to the original, which was a three part lock. Some adjustment to the keep positions may be required.

Additional information

Manufacturer

Mila

Discontinued

Yes

Backset

28mm, 35mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Rollers

2

Latch

1

Main Gearbox

Latch only

Operation

Lift Lever

Shootbolt Attachments

No

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

Distance Between Inner Locking Points

595mm

Height

800mm
