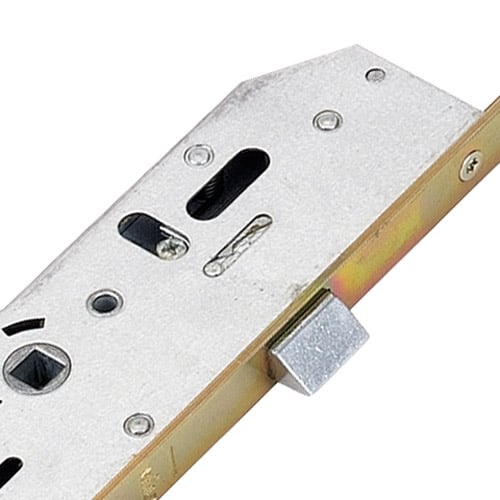

Mila Latch 4 Rollers Lift Lever Multipoint Door Lock

SKU: AS470425config

Price range: £29.99 through £36.39 Out of stock

SKU: AS470425config Categories: , Brand:

Description

This part is discontinued and is no longer available.

However, for part AS470425: AS4704725 is a potential alternative. This replacement is the closest alternative but its not a perfect match. Some adjustment to the keeps will be required.

For part AS470445: ECO4R45 is a potential alternative. This lock will need the roller keeps to be repositioned. This is a single spindle version not a double spindle so if offset handles have been used, they will need to be replaced with inline handles.

For part AS47045: 503519AA is a potential alternative. Keeps will have to be repositioned and a new deadbolt keep supplied. Part: AS47047 is also potential alternative. This replacement is the closest alternative but its not a perfect match. Some adjustment to the keeps will be required.

Additional information

Manufacturer

Mila

Discontinued

Yes

Backset

25mm, 28mm, 35mm, 45mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

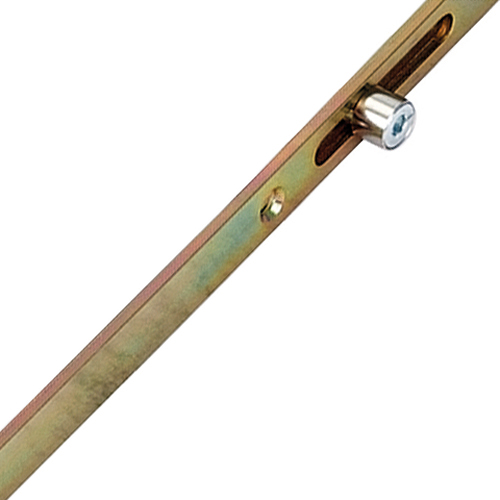

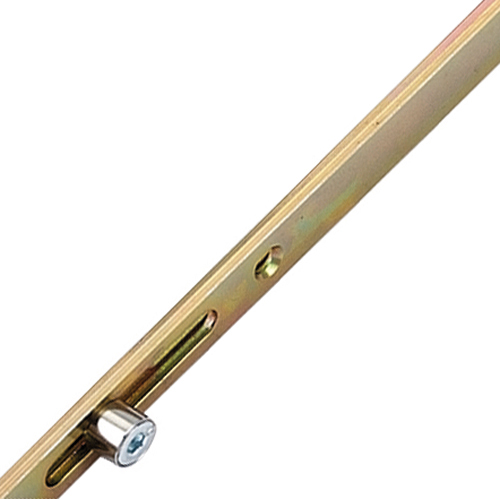

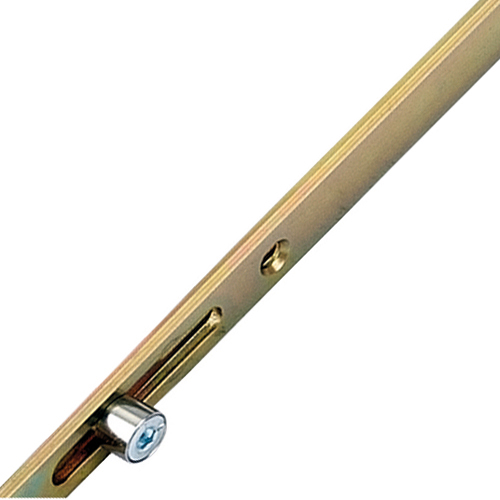

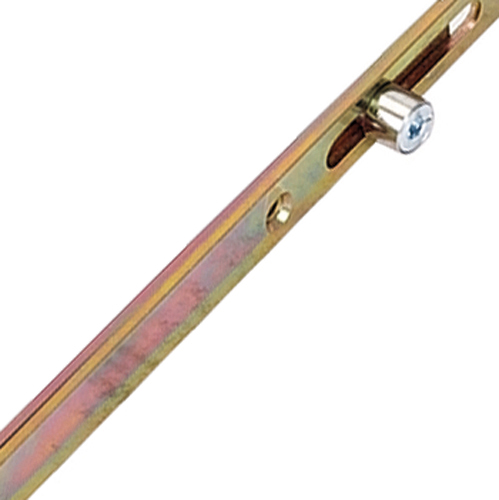

Rollers

4

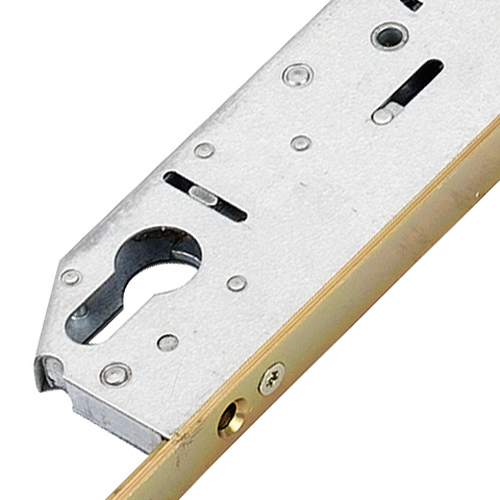

Latch

1

Main Gearbox

Latch only

Operation

Lift Lever

Shootbolt Attachments

No

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

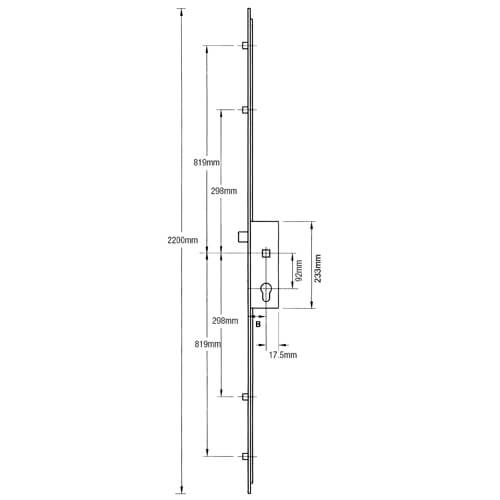

Distance Between Inner Locking Points

596mm

Distance Between Outer Locking Points

1638mm

Height

2200mm

Top Roller To Spindle

819mm

Bottom Roller To Spindle

819mm
