£39.84 Out of stock

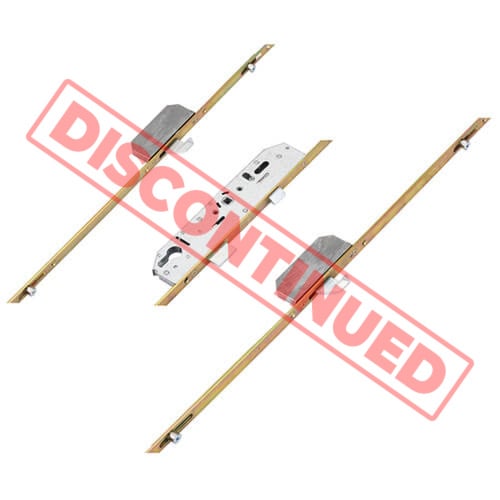

This part is discontinued and is no longer available.
However, part: FUSLAVE45 is a potential alternative. This is a very similar product but new shootbolts will be required as the originals will not be compatible.
Operation: Lift Lever
To lock the door
| Manufacturer | Mila |
|---|---|
| Discontinued | Yes |
| Backset | 28mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |

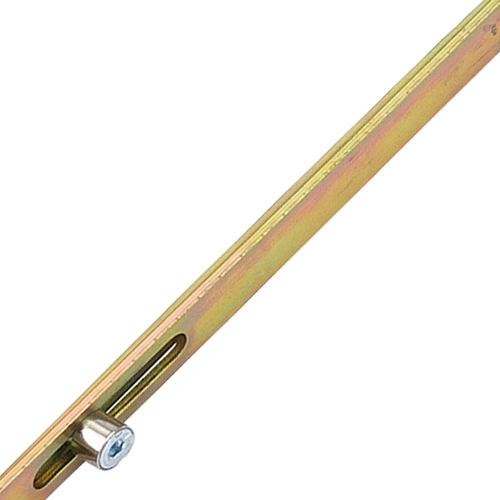

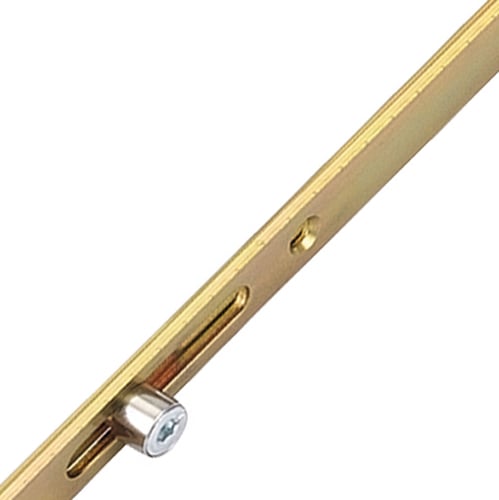

| Rollers | 4 |

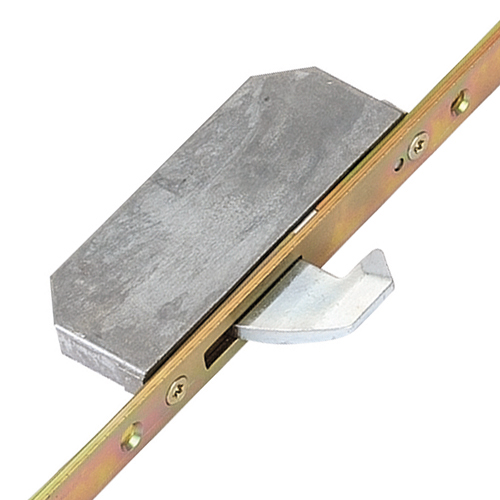

| Hooks | 2 |
| Deadbolts | 1 |
| Latch | 1 |

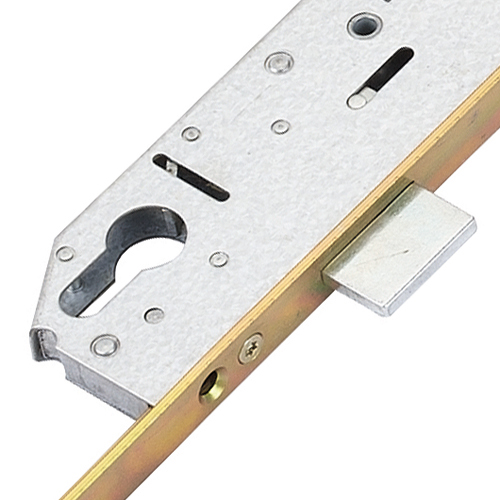

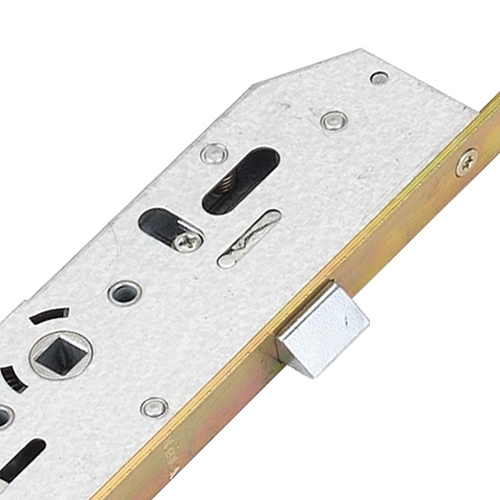

| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

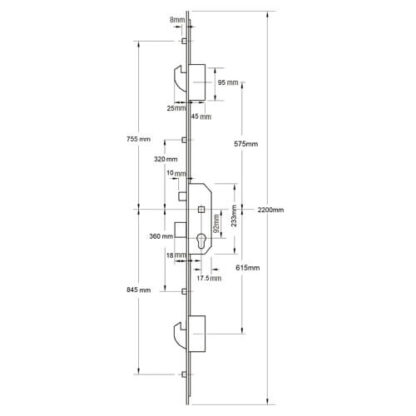

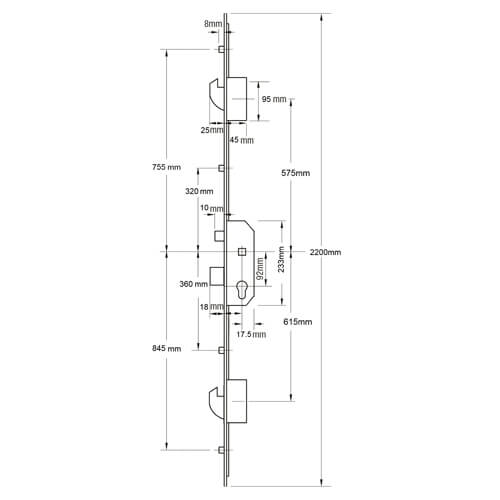

| Distance Between Inner Locking Points | 680mm |
| Distance Between Outer Locking Points | 1600mm |
| Height | 2200mm |
| Top Hook To Spindle | 575mm |
| Bottom Hook To Spindle | 615mm |
| Top Roller To Spindle | 755mm |
| Bottom Roller To Spindle | 845mm |
