Price range: £29.99 through £66.66 Out of stock
This part is discontinued and is no longer available.
However, for part AS47128: G1626222 is a potential alternative. The roller keeps will need to be repositioned.
For part AS47145: AS470445 is a potential alternative. Same product but without deadbolt.
Part ECO4R45 is also a potential alternative. This is a similar size lock but the roller keeps will need to be repositioned. If offset handles have been used, they will need to be replaced with inline handles.
| Manufacturer | Mila |
|---|---|
| Discontinued | Yes |
| Backset | 28mm, 45mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |

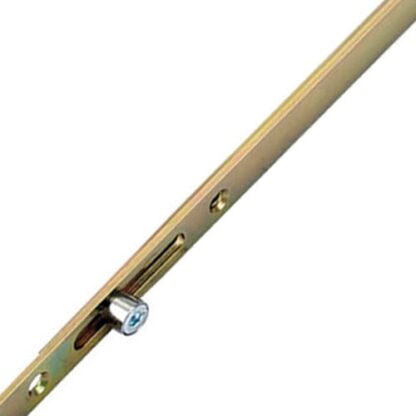

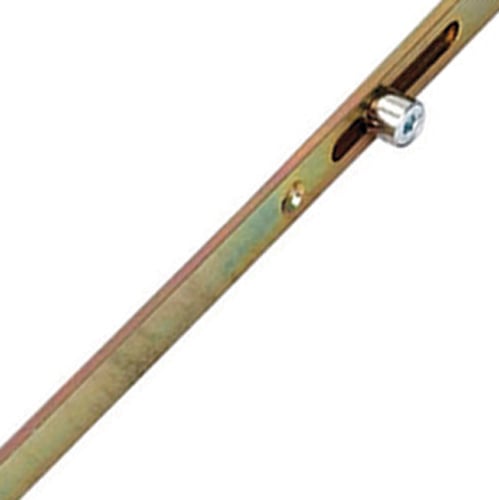

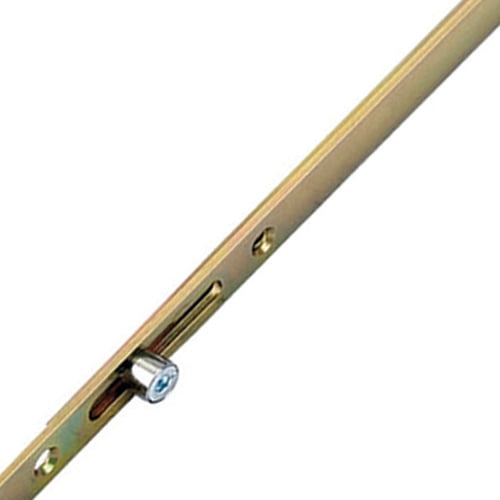

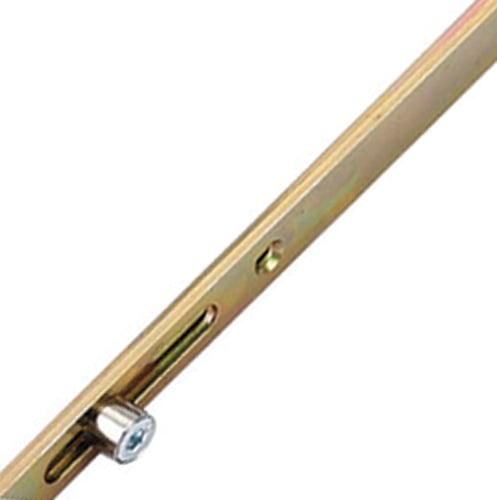

| Rollers | 4 |
| Deadbolts | 1 |
| Latch | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

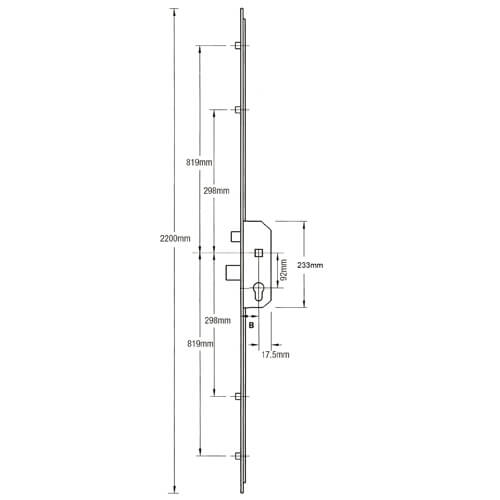

| Distance Between Inner Locking Points | 596mm |
| Distance Between Outer Locking Points | 1638mm |
| Height | 2200mm |
| Top Roller To Spindle | 819mm |
| Bottom Roller To Spindle | 819mm |
