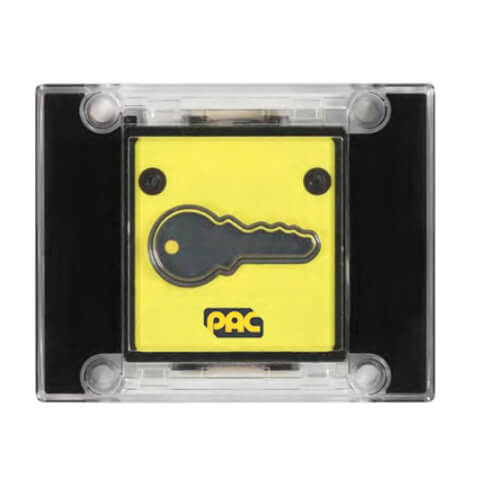

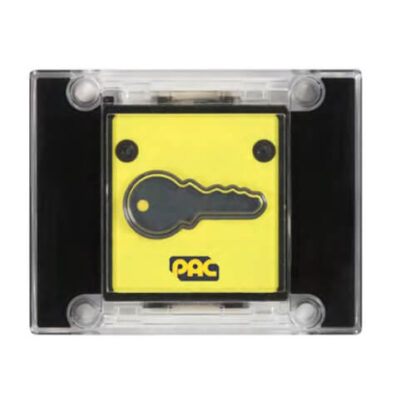

Panel Mounted PAC Proximity Reader

This version of the PAC GS3 proximity reader is designed to be suitable for use in door entry panels. The 75mm x 60mm body and square reader protrusion will fit in the reader aperture of most manufacturers door entry panels to enable the user to integrate the door entry system into the access control solution. Available in LF or HF formats with multiple outputs and simple configuration. The PAC GS3 proximity reader is designed to fit in most OEM entry panels.

Measurements

• Power Required: 12V to 24V DC.
• Dimensions: (W) 75mm x (H) 60mm x (D) 16mm.
• Maximum Current Requirements: @12V DC -90mA @ 12V DC.
• Operating Temperature: -40 degrees to +66 degreesC / -40 degrees to +151 degreesF.
• Operating Humidity: 10-85% RH @ 30 degrees to +2 degreesC / 85 degrees to +4 degreesF.
• Audio Visual Indication: Two LEDs (red/green) and sounder.
• Finish: Black and yellow Polycarbonate.
