£47.95 Out of stock
This part is discontinued and is no longer available.
However, part: 633417 is a potential alternative. The keeps will need adjusting.

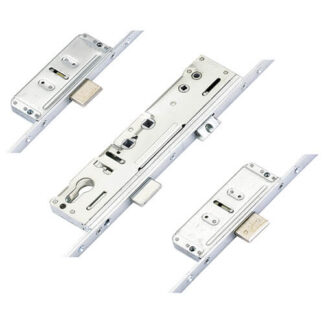

Part: ROTOCASE35 is also potential alternative. We’d recommend a gearbox swap for this product as a 28mm latch only full length lock isn’t available. An upgrade to a full length lock is possible with a VERSA V-MPL repair lock, which comes with replacement keeps, but some work will be required to the door.
| Discontinued | Yes |
|---|---|
| Manufacturer | Roto |
| Backset | 35mm |
| Centres PZ | 92mm/62mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Mushrooms | 2 |
| Hooks | 2 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Double Spindle |
| Spindle | Double 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

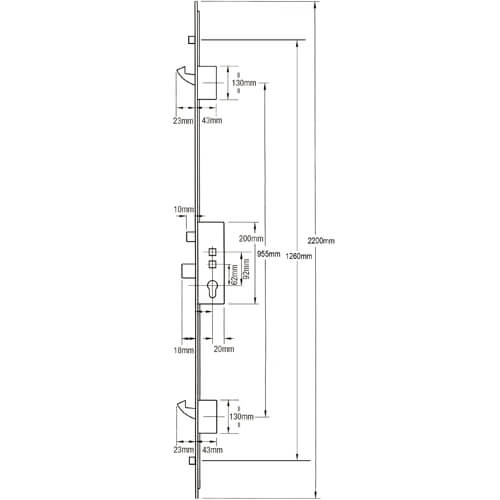

| Distance Between Inner Locking Points | 955mm |
| Distance Between Outer Locking Points | 1260mm |
| Height | 2200mm |
| Top Hook To Spindle | 460mm |
| Bottom Hook To Spindle | 490mm |
| Top Mushroom To Spindle | 615mm |
| Bottom Mushroom To Spindle | 645mm |
