Securistyle Latch 3 Hooks 2 Rollers Double Spindle Multipoint Door Lock – Option 1

SKU: ML120Pconfig

£55.36 Out of stock

SKU: ML120Pconfig Categories: , Brand:

Description

This part is discontinued and is no longer available.

However, part: LMWWCASE35 is a potential alternative. If possible, we’d recommend swapping the gearbox on this product, using part LMWWCASE35. The proximity of the hooks and rollers means that there isn’t a direct swap and any replacement will require new keeps. If a full lock is required then we’d recommend a V-MPLSS35.

Part: V-MPLSS35 is a potential alternative. There’s no direct replacement for this lock so we’d recommend a VERSA repair lock, which is supplied with replacement keeps. If offset handles have been used, they will need to be replaced with inline handles to suit the VERSA lock.

Additional information

Manufacturer

Securistyle

Discontinued

Yes

Backset

35mm

Centres PZ

92mm/62mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

Rollers

2

Hooks

3

Main Gearbox

Latch and hookbolt

Operation

Double Spindle

Spindle

Double 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

Distance Between Inner Locking Points

1014mm

Distance Between Outer Locking Points

1340mm

Height

2200mm

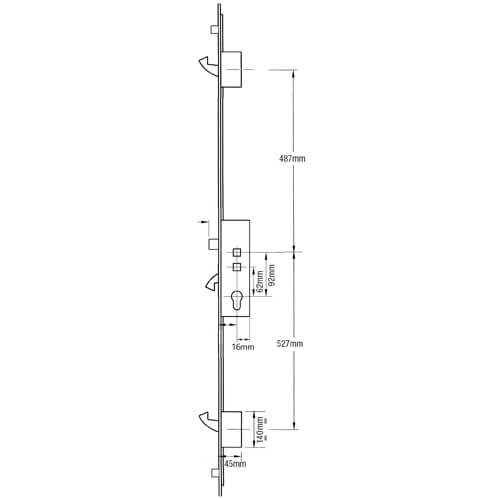

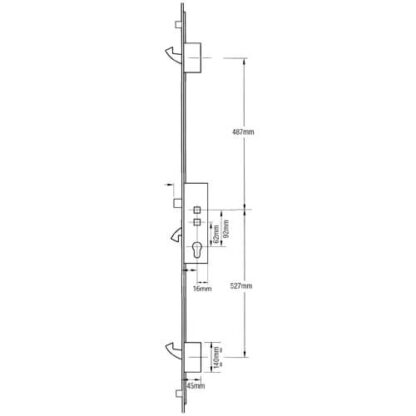

Top Hook To Spindle

487mm

Bottom Hook To Spindle

527mm
