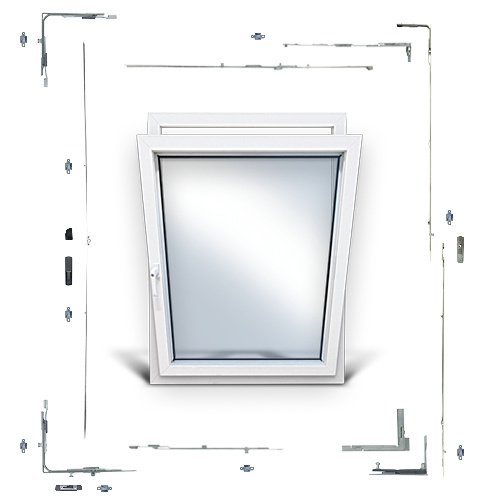

SI Titan Concealed System – Height 2001-2400mm, Width 650-850mm

Titan is the latest tilt before turn system from Siegenia for use on UPVC, timber and aluminium windows. These complete sets have been designed for new installations or replacing old TBT systems fitted to sash windows with a standard 16mm eurogroove channel.

These models are to suit sash rebates between 2001-2400mm high and 650-850mm wide, with variants to suit left or right hung windows and 9mm or 13mm eurogroove axis with concealed hinge fixing.

Drive gears are available with 7mm or 15mm backsets. Check the backset of the old drive gear if you’re replacing an existing system.

These systems are supplied as complete sets to suit particular window requirements. If you are unsure this is the correct set for you, check your sash dimensions are between that of the sash rebate width and height. Further details can also be found in the Specifications.
