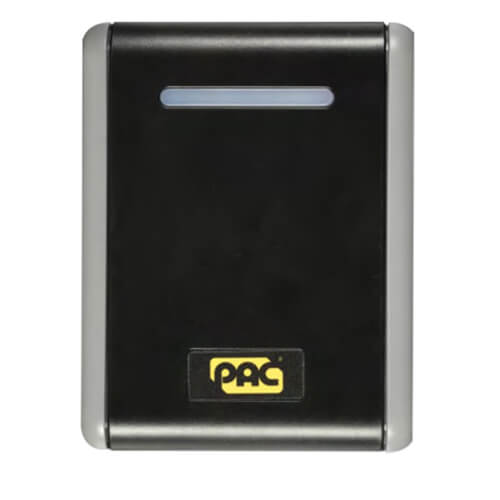

Standard Style PAC Proximity Reader

This standard sized PAC proximity reader is available in both Low Frequency (LF) and High Frequency (HF) versions. Select the version required from the options below. If you are unsure which reader you require please contact our technical team. Making installations quick and easy the Standard reader comes complete with a mounting bracket with fixing holes and a single screw to attach the reader. The Standard reader is ideal for fitting on the side of a door, internally or externally.

Measurements

• Power Required: 12V to 24V DC.
• Dimensions: (W) 89mm x (H) 115mm x (D) 29mm.
• Maximum Current Requirements: @12V DC -100mA @ 12V DC.
• Operating Temperature: -40 degrees to +66 degreesC / -40 degrees to +151 degreesF.
• Operating Humidity: 10-85% RH @ 30 degrees to +2 degreesC / 85 degrees to +4 degreesF.
• Audio Visual Indication: Bi-colour lightbar (red/green) and audible sounder.
• Finish: Black with grey sides.
