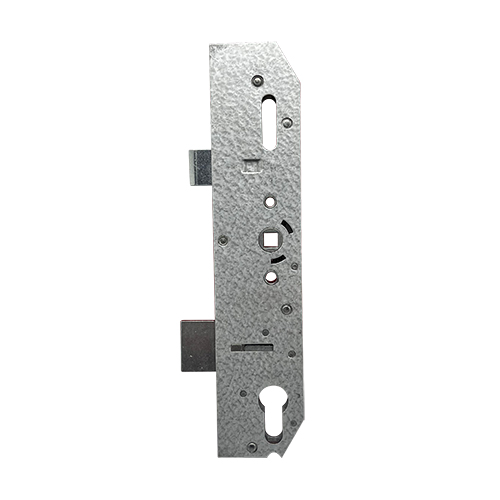

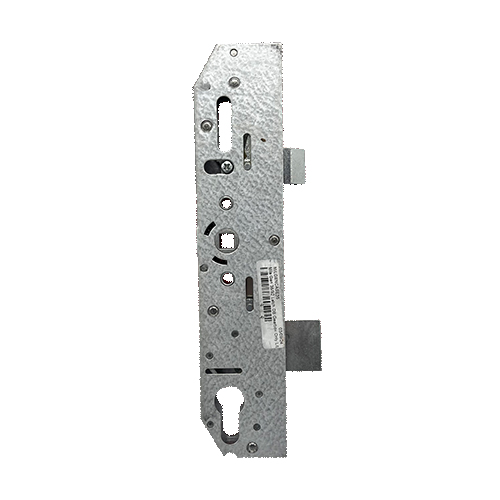

Swiftframe Latch and Deadbolt Multipoint Gearbox – Lift Lever

This Swiftframe gearbox is a replacement for the gearboxes found on Swiftframe multipoint locks. Fixing points are not threaded and will require self-tapping screws. Screw holes are unthreaded – Use 4mm x 30mm screws to cut thread (Part Number: M430CSK)

This Swiftframe gearbox has a single spindle and a 35mm backset.

Operation: Lift lever

Latch reversal: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.
