Swiftframe Latch and Deadbolt Multipoint Gearbox – Lift Lever or Double Spindle

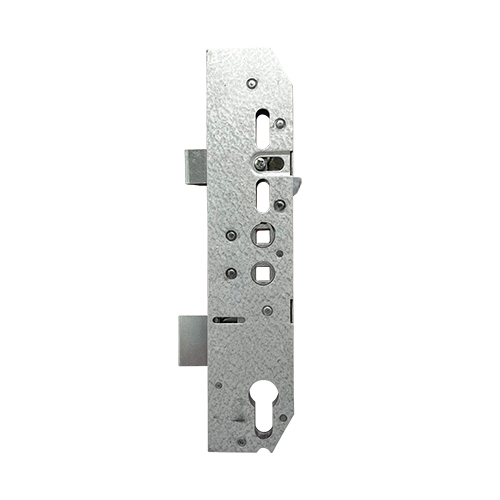

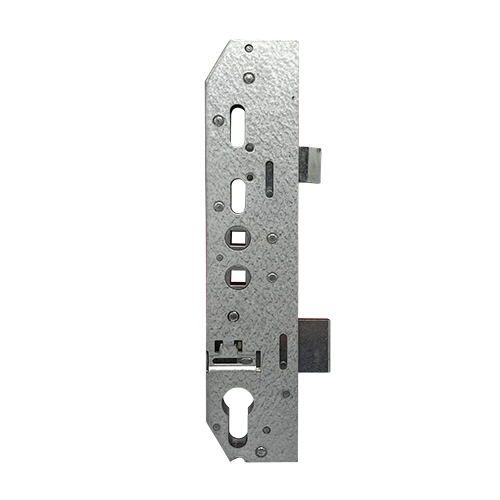

This Swiftframe gearbox features a double spindle with 92/70mm centres. Fixing points are not threaded and will require the use of self-tapping screws. (Part Number: M430CSK)

Swiftframe gearboxes are available in both latch-only and latch and deadbolt configurations, with a double or spindle spindle.

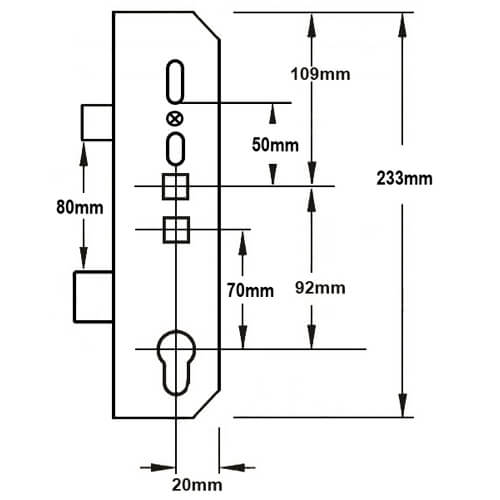

The case measures 233mm high by the backset + 20mm wide. The latch measures 20mm high, the deadbolt is 30mm high and there is 80mm between the bottom of the latch and the top of the deadbolt.

Please note that some older locks feature an offset or cranked connector. This is only an issue when replacing a gearbox, rather than a full-length lock, but it’s an important point to consider. Replacement gearboxes are now only available with inline connectors. They are still compatible with older locks but it will be necessary to adapt the drive gear that runs behind the faceplate. Follow our technical guide on the process, but there is a square hole in the drive gear that needs to be cut to create a slot to ensure that the lock works.
