Description

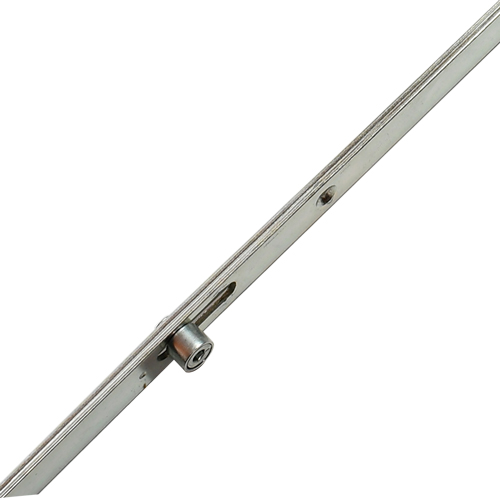

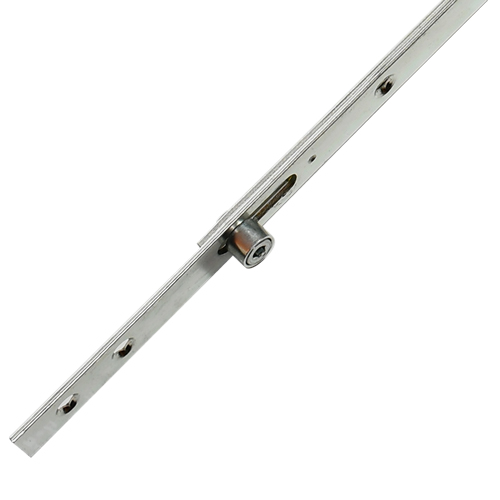

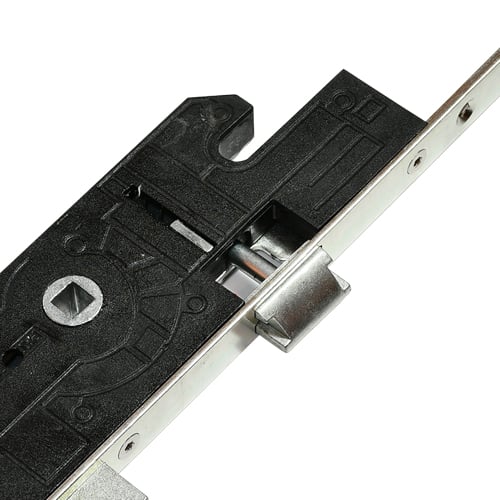

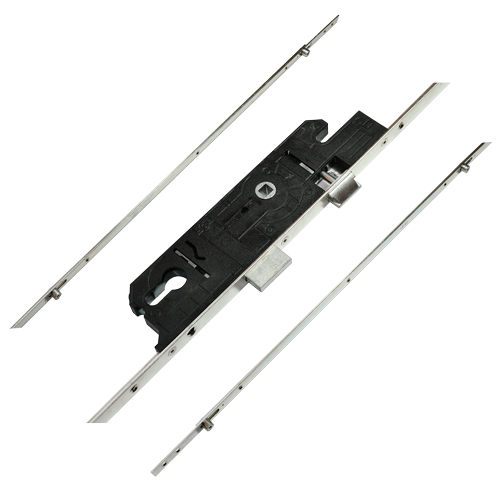

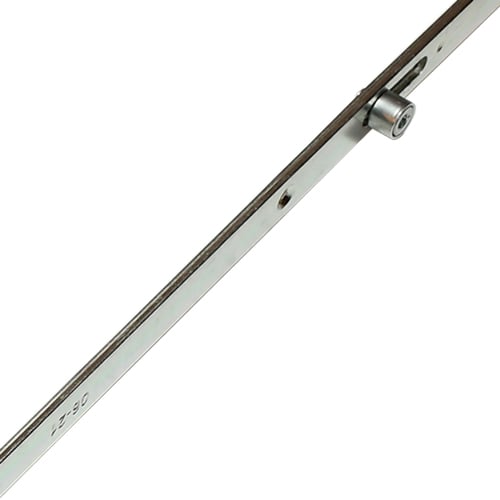

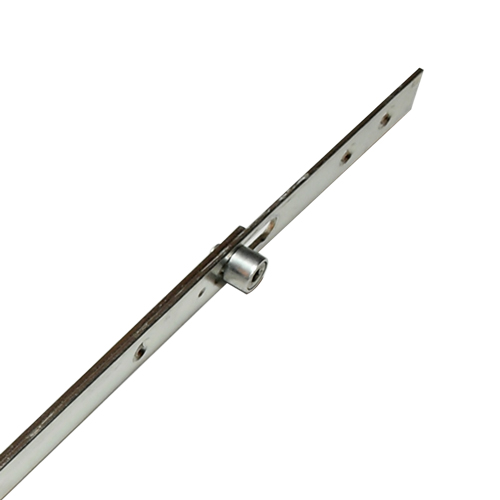

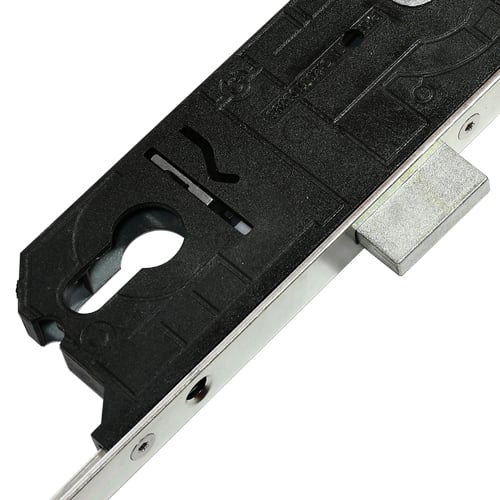

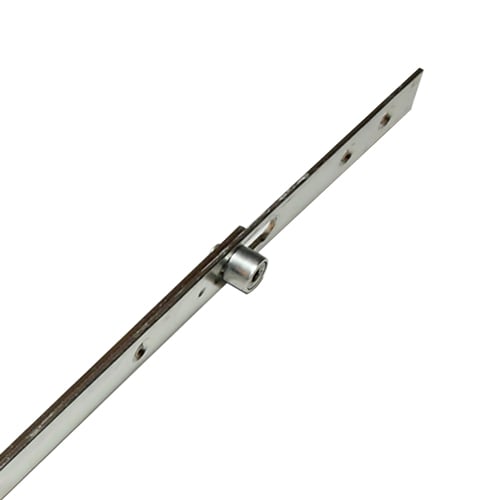

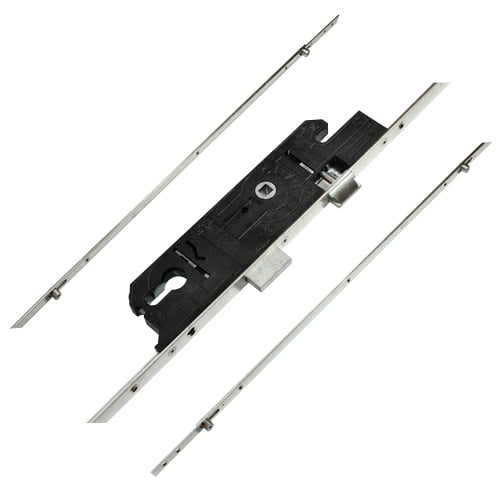

This TSS multipoint door lock features 4 Rollers, 1 Deadbolt & 1 Latch.
Operation: Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
TSS Economy Compact Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
SKU: ECO4R28config
£9.99 In stock
Additional information
| Manufacturer | TSS |
|---|---|
| Centres PZ | 92mm |
| Discontinued | No |
| Backset | 28mm, 35mm, 45mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 4 |
| Deadbolts | 1 |
| Main Gearbox | Latch and deadbolt |
| Operation | Lift Lever |
| Shootbolt Attachments | No |
| Spindle | Single 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

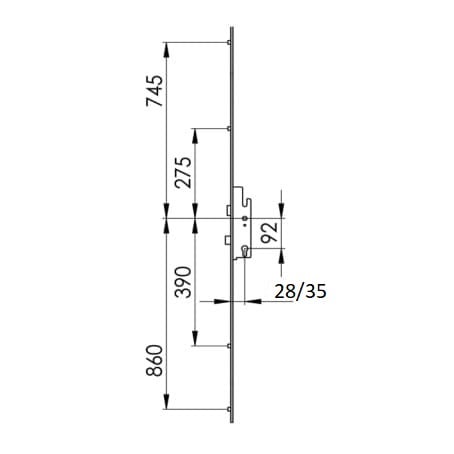

| Distance Between Inner Locking Points | 665mm |
| Distance Between Outer Locking Points | 1605mm |
| Height | 1800mm |
| Top Roller To Spindle | 745mm |
| Bottom Roller To Spindle | 860mm |
