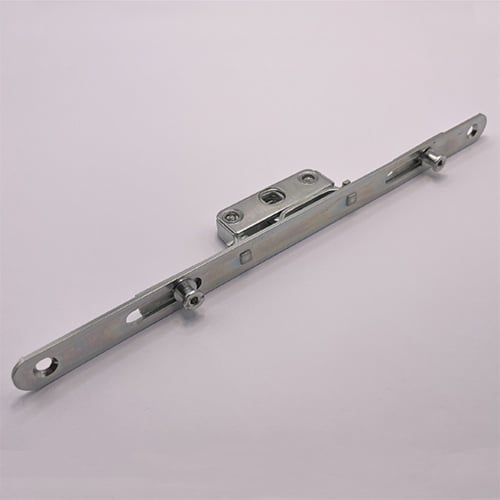

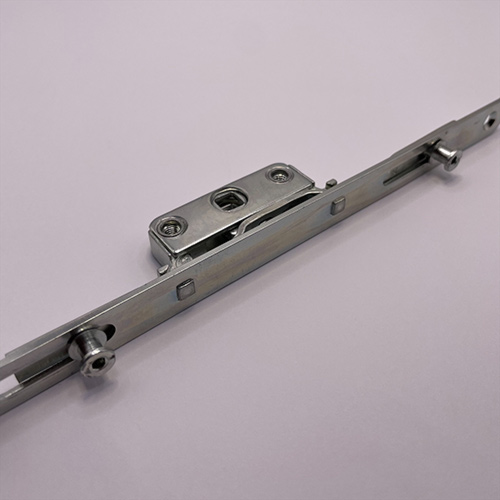

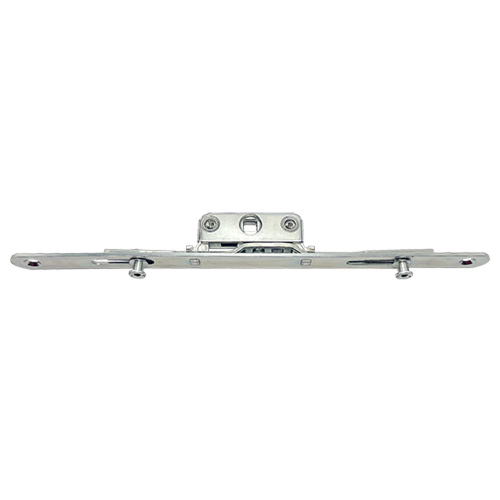

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.
The TSS Espag Range have a 20mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.
The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.

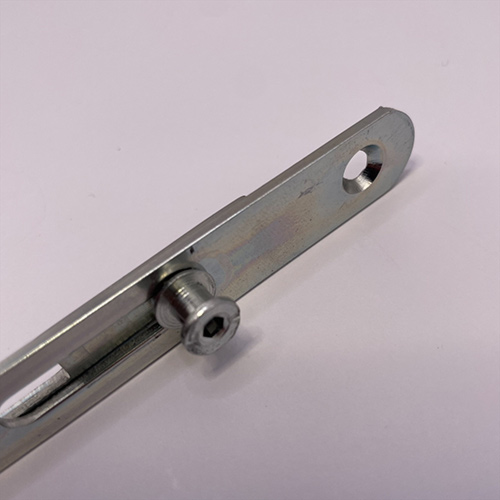

250mm to 800mm have 2x Mushroom Bolts
1000mm have 3x Mushroom Bolts
1200mm have 4x Mushroom Bolts

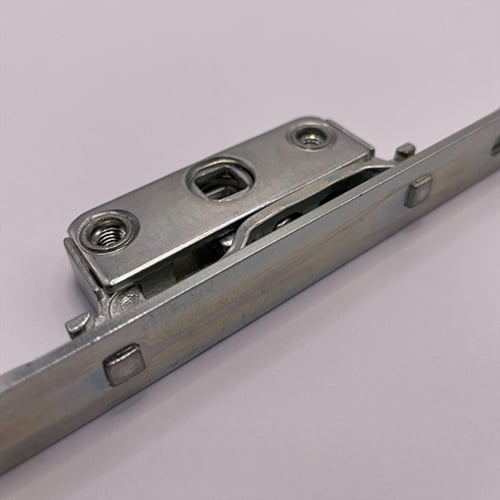

- 7mm Spindle Drive
- 20mm Backset
- 7mm (8mm) Mushroom Height
- 43mm Fixing Screw Centres (Suits Standard Espag Handles)
- 240 Hours Neutral Salt Spray Corrosion Performance
- Minimum 40Nm Gearbox Torque Resistance
- Sold in Singles or Trade Packs of 20x
Also available in 22mm Backset: see SKUs starting with TSSESP22

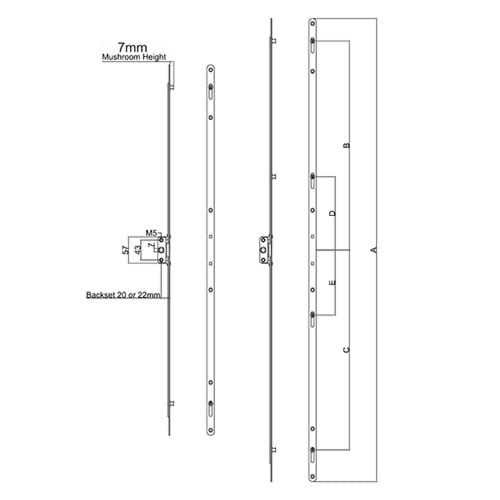

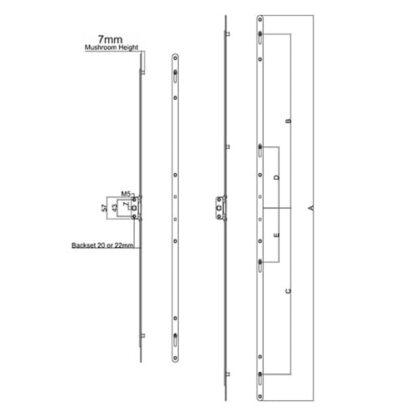

| Length (Dim A) |
No Of Mushrooms |
Distance Between Outer Mushrooms |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
| 250mm |
2 |
140mm |
80mm |
60mm |
N/A |
N/A |
| 400mm |
2 |
290mm |
155mm |
135mm |
N/A |
N/A |
| 600mm |
2 |
490mm |
255mm |
235mm |
N/A |
N/A |
| 800mm |
2 |
690mm |
355mm |
335mm |
N/A |
N/A |
| 1000mm |
3 |
890mm |
455mm |
435mm |
155mm |
N/A |
| 1200mm |
4 |
1090mm |
555mm |
535mm |
155mm |
135mm |
