£30.00 Out of stock

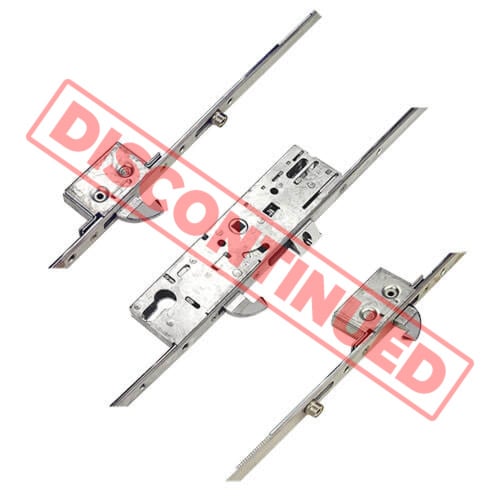

This part is discontinued and is no longer available.
However, part: YALECASE35 is a potential alternative. We’d recommend a gearbox swap for this product as the G2000 has a unique latch and deadbolt configuration. Swapping to a full length lock is possible with a VERSA V-MPL repair lock, which comes with replacement keeps, but some work will be required to the door.
| Manufacturer | Yale |
|---|---|
| Discontinued | Yes |
| Backset | 35mm |
| Centres PZ | 92mm |
| Faceplate | Flat 16mm – Square Ends |
| Spindle Size | 8mm |
| Rollers | 2 |
| Hooks | 3 |
| Main Gearbox | Latch and hookbolt |
| Operation | Split Spindle |
| Spindle | Split 8mm |
| 1, 2 or 3 Piece | 1 |
| Handing | Non Handed |

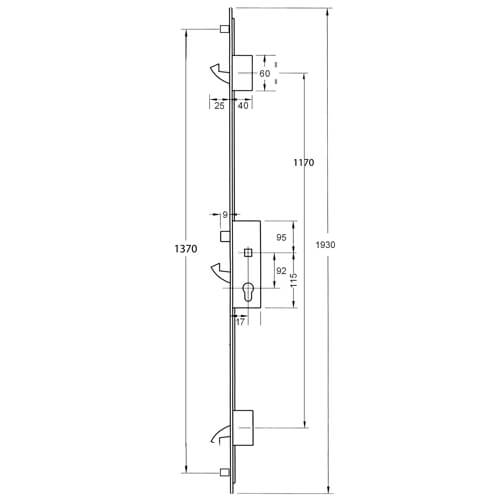

| Distance Between Inner Locking Points | 1175mm |
| Distance Between Outer Locking Points | 1370mm |
| Height | 1930mm |
| Top Hook To Spindle | 691mm |
| Bottom Hook To Spindle | 757mm |
| Top Roller To Spindle | 788mm |
| Bottom Roller To Spindle | 854mm |
