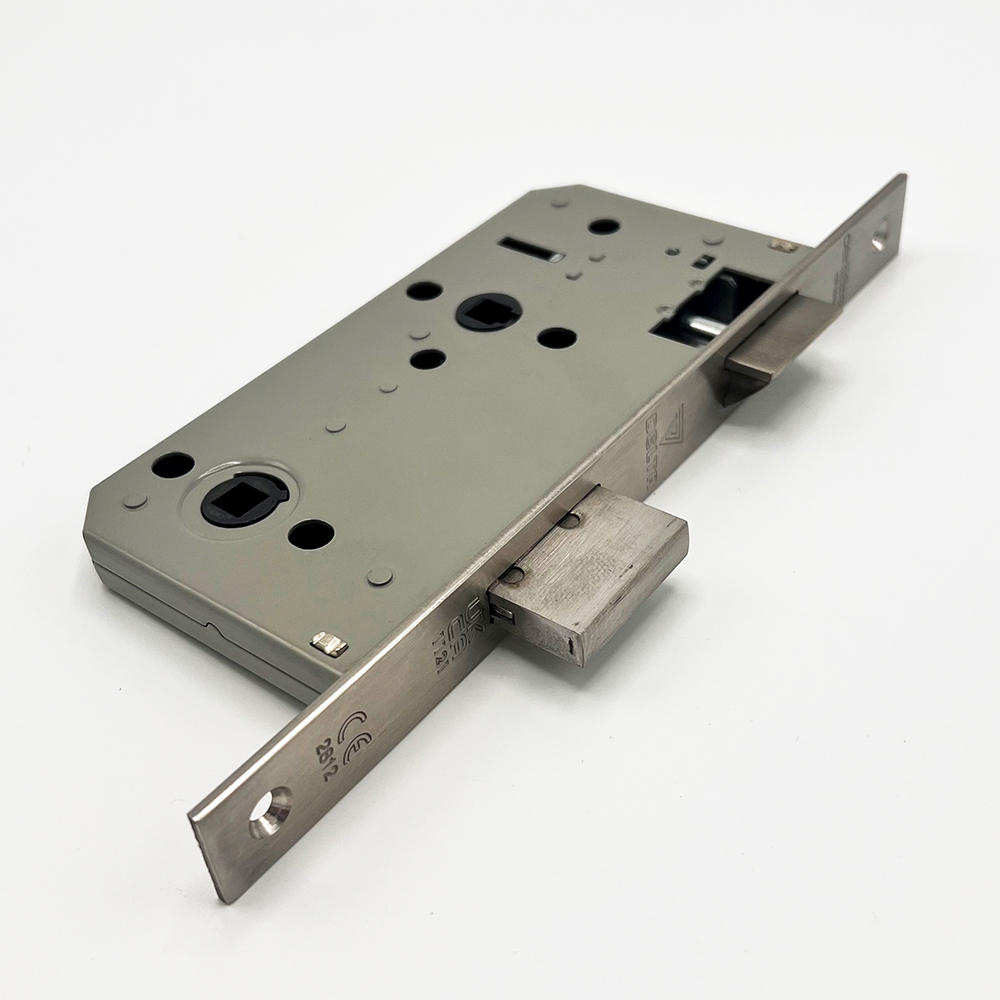

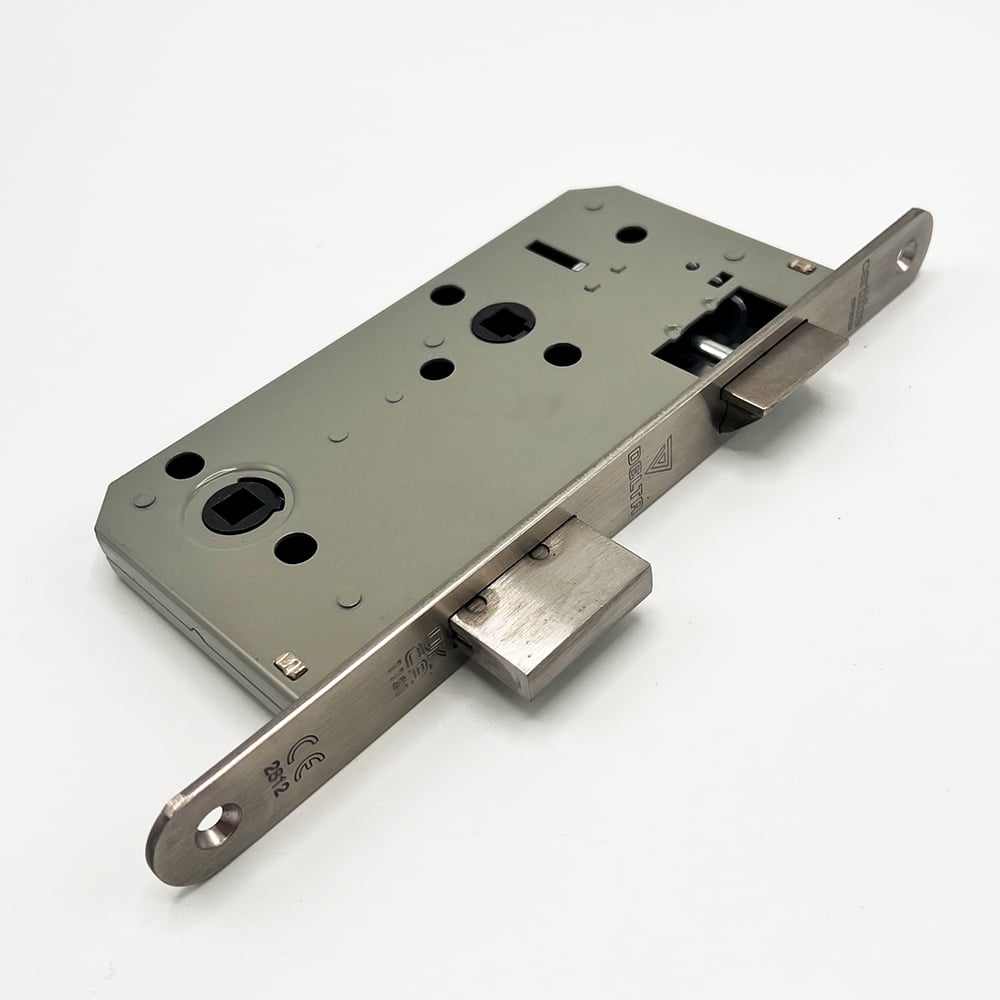

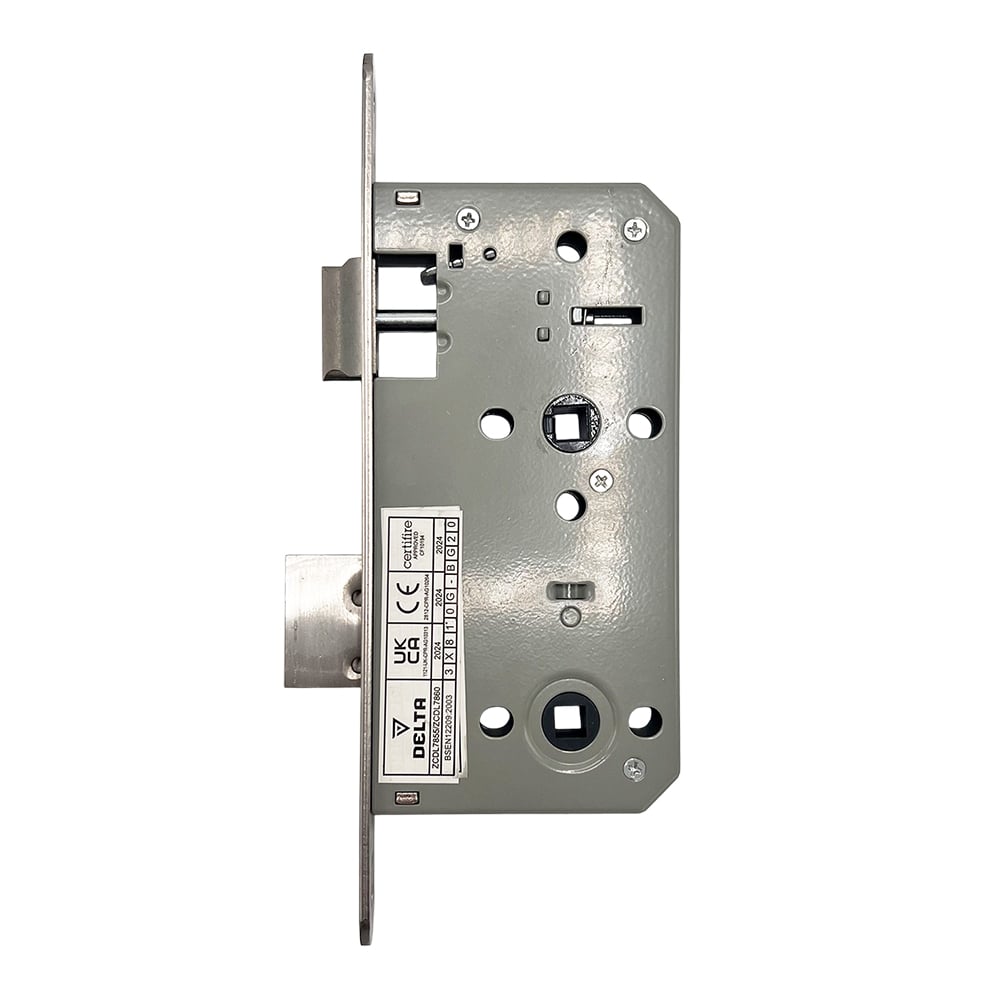

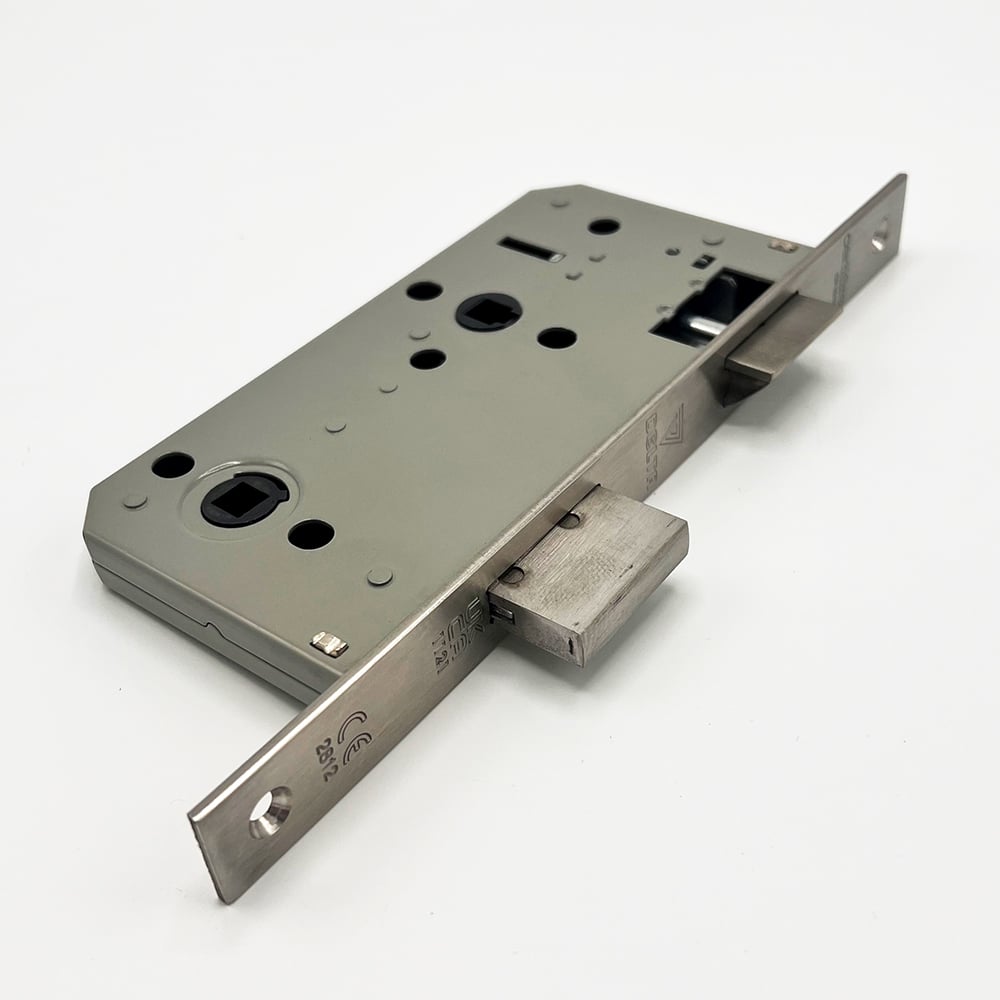

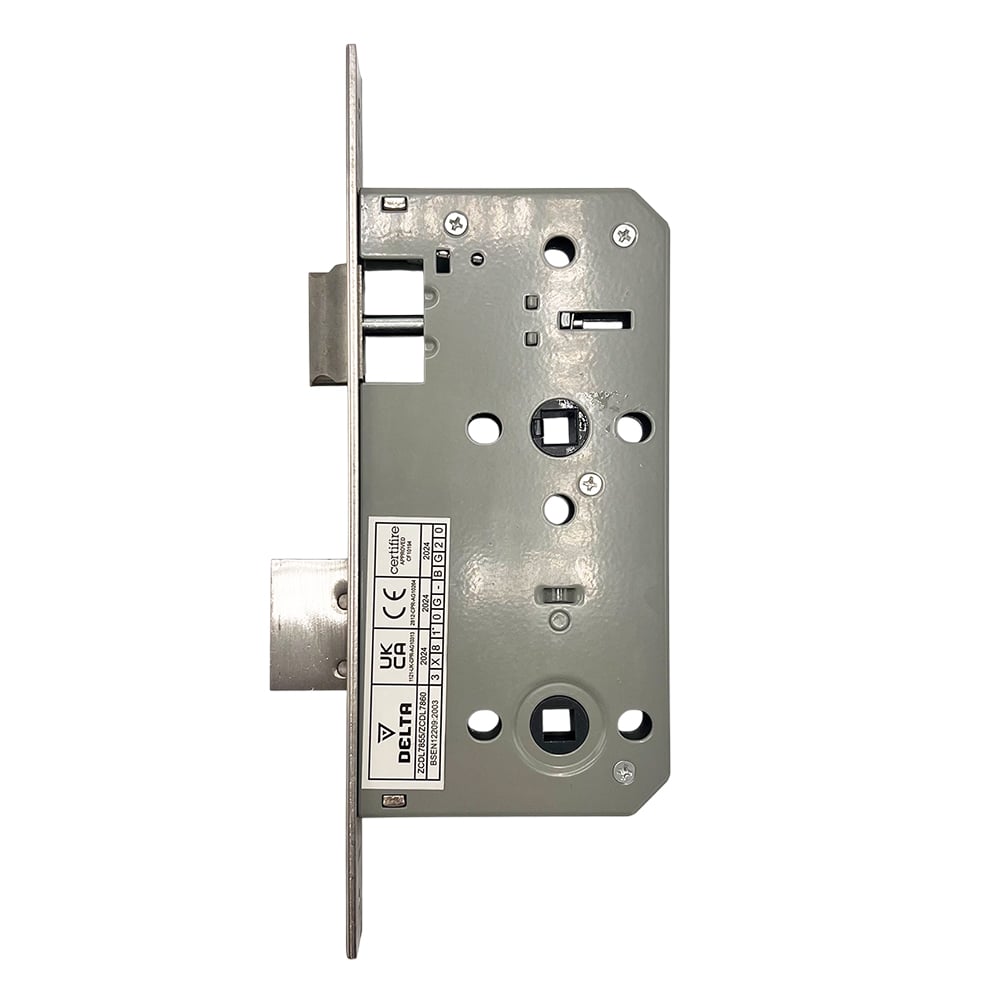

Zoo DIN Bathroom Lock Case

Zoo DIN Bathroom Lock Case is a DIN standard bathroom lock.

A DIN lock is a type of lock that conforms to DIN standards—a set of German engineering specifications established by the Deutsches Institut für Normung (DIN). These standards ensure uniformity in size and fitting, making DIN mortice locks compatible across a wide range of doors and hardware.

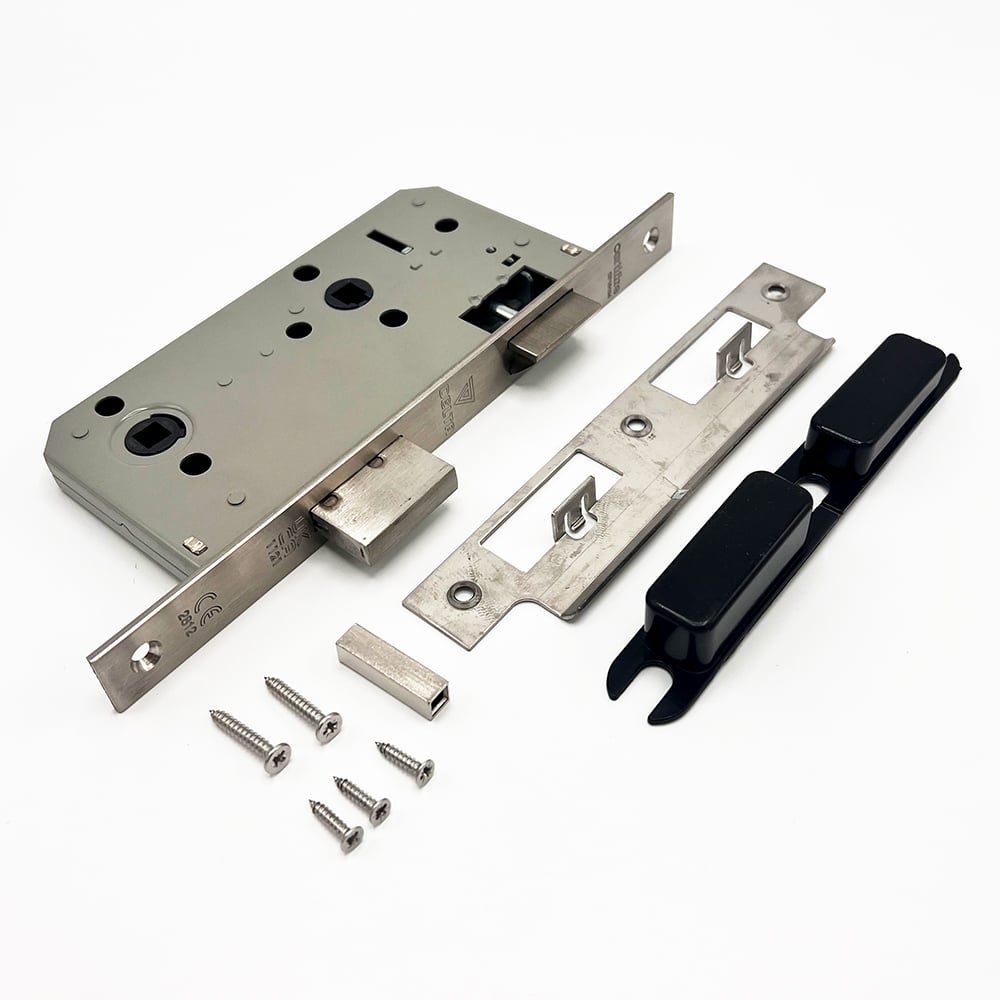

Product Features

• Available in 55mm or 60mm backset

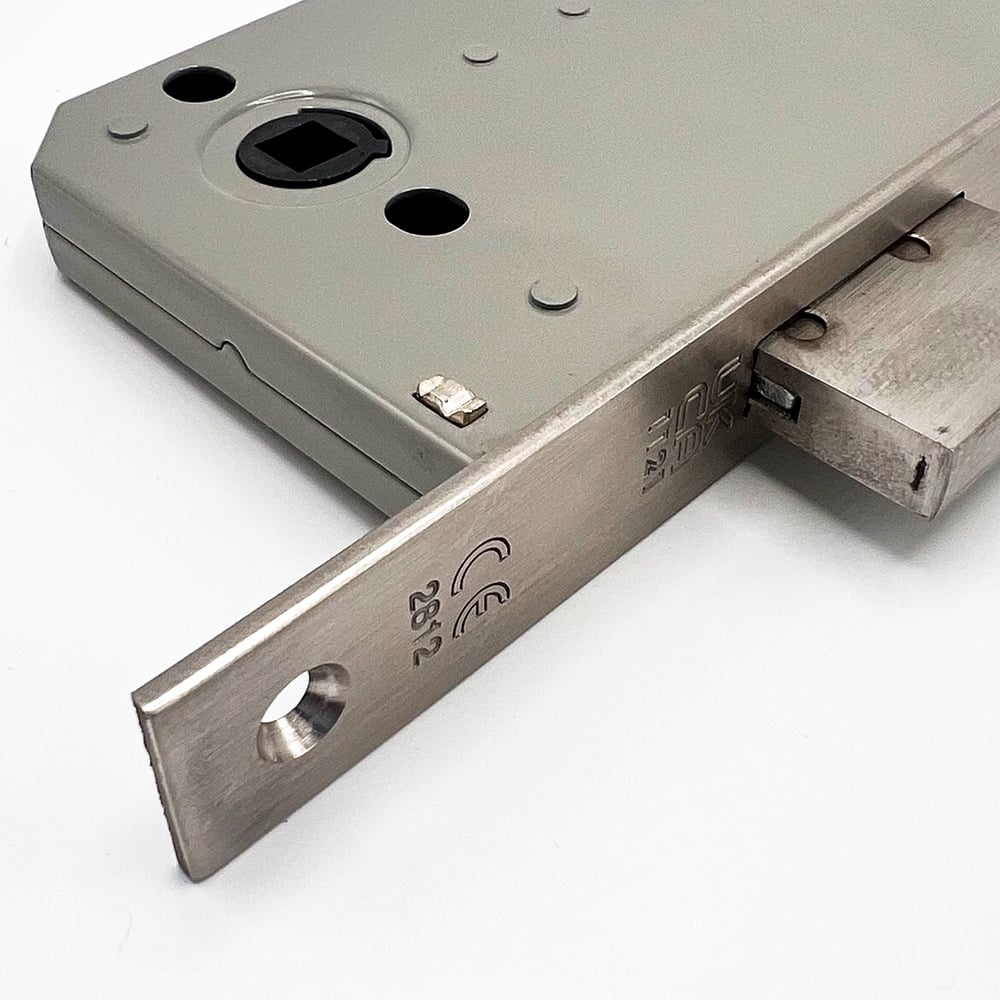

• Stainless Steel single fixed forend, 22mm width

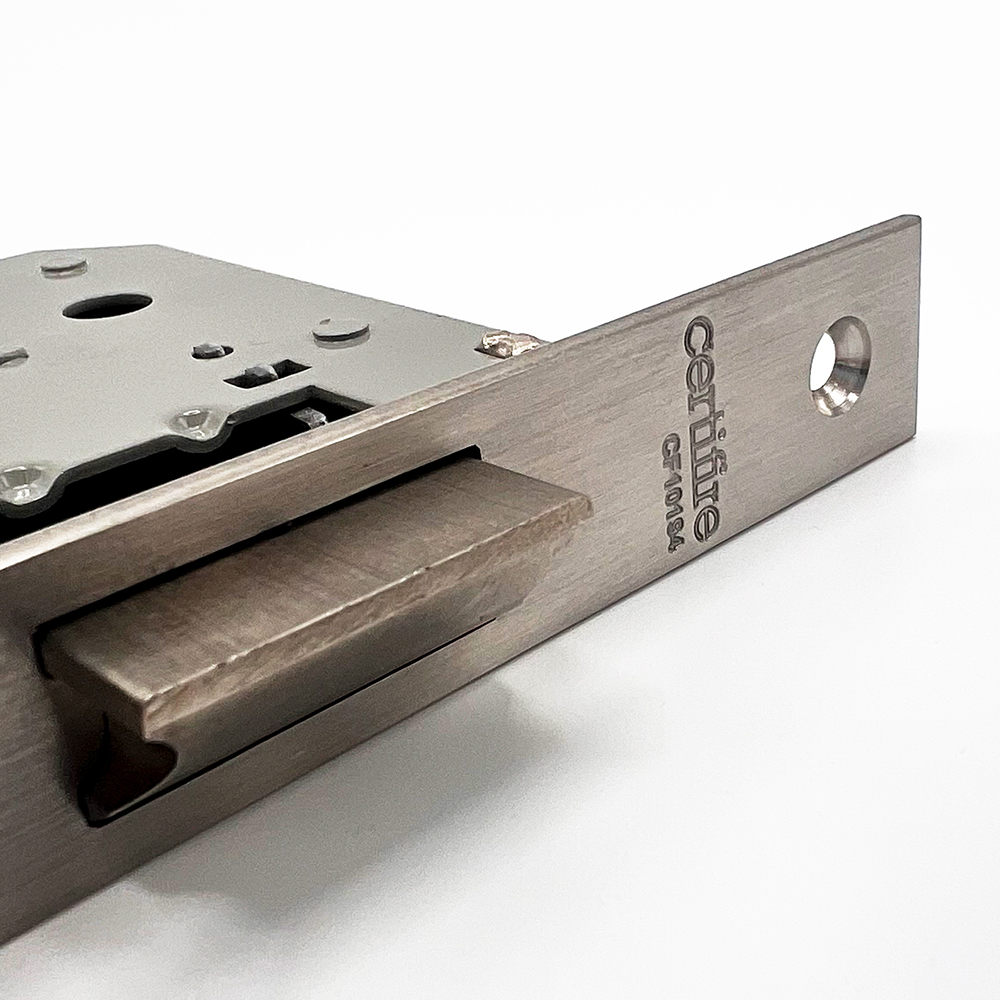

• Stainless Steel easily reversible latchbolt
• Stainless Steel double throw dead bolt, 20mm
• 8mm bathroom follower with optional supplied 5mm adaptor

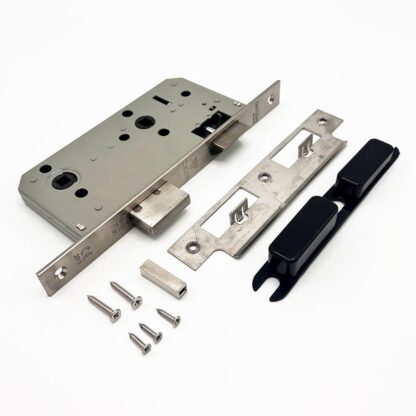

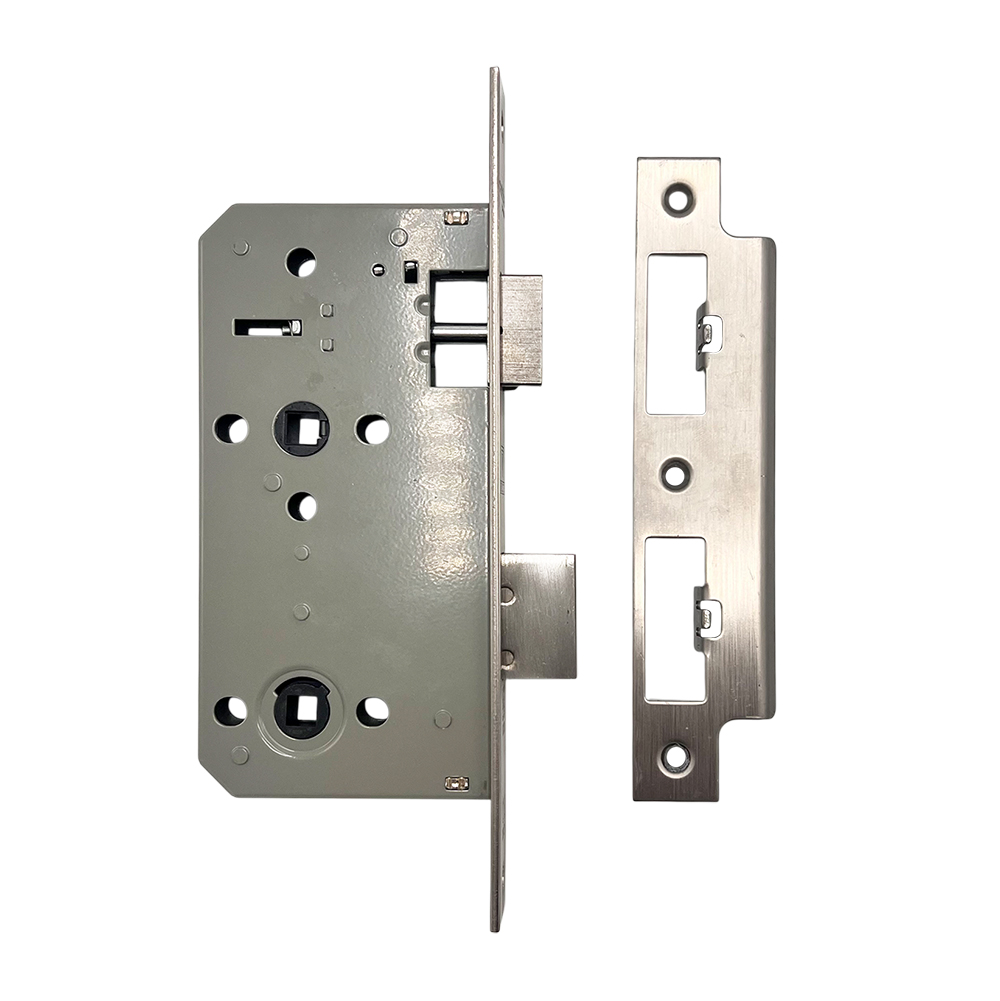

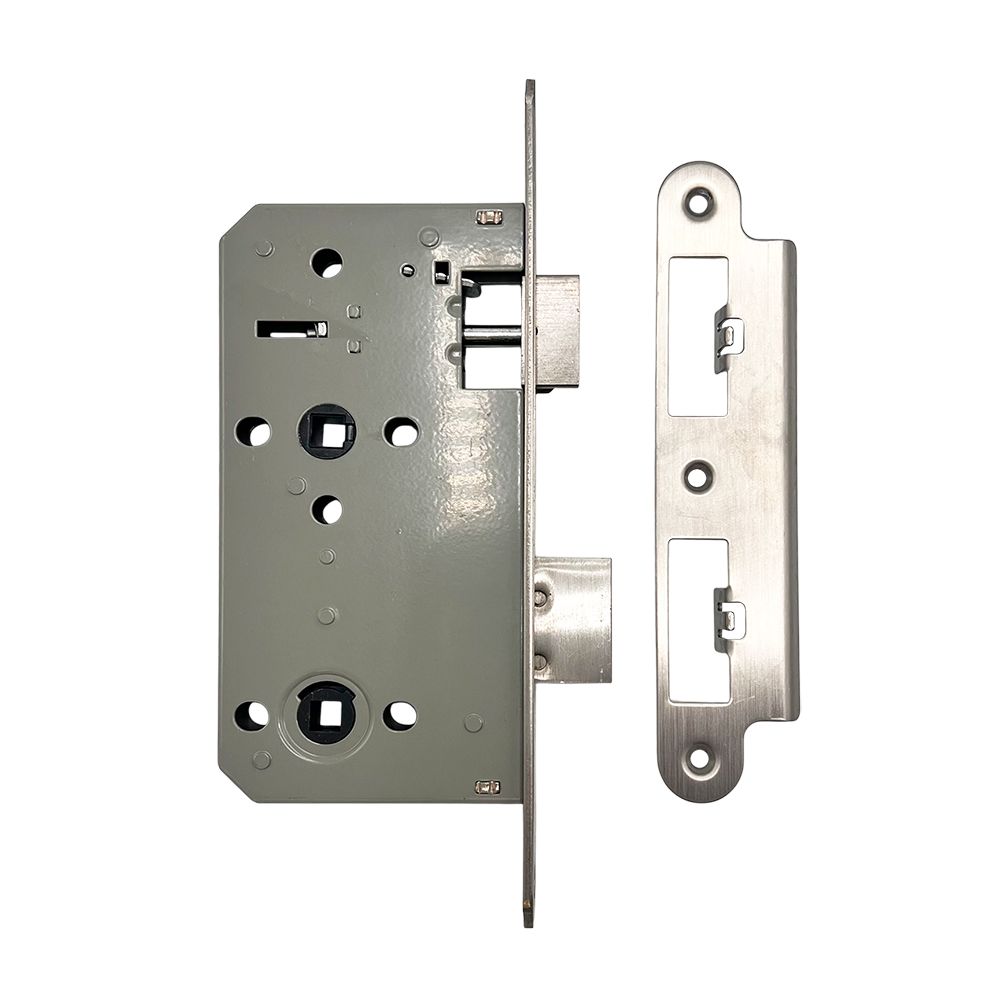

• Anti-rattle strike
• Grip tight follower
• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire rated doors supplied separately (see below table for details)

Performance Testing

Successfully tested in accordance with the requirements of BS EN12209: 2003

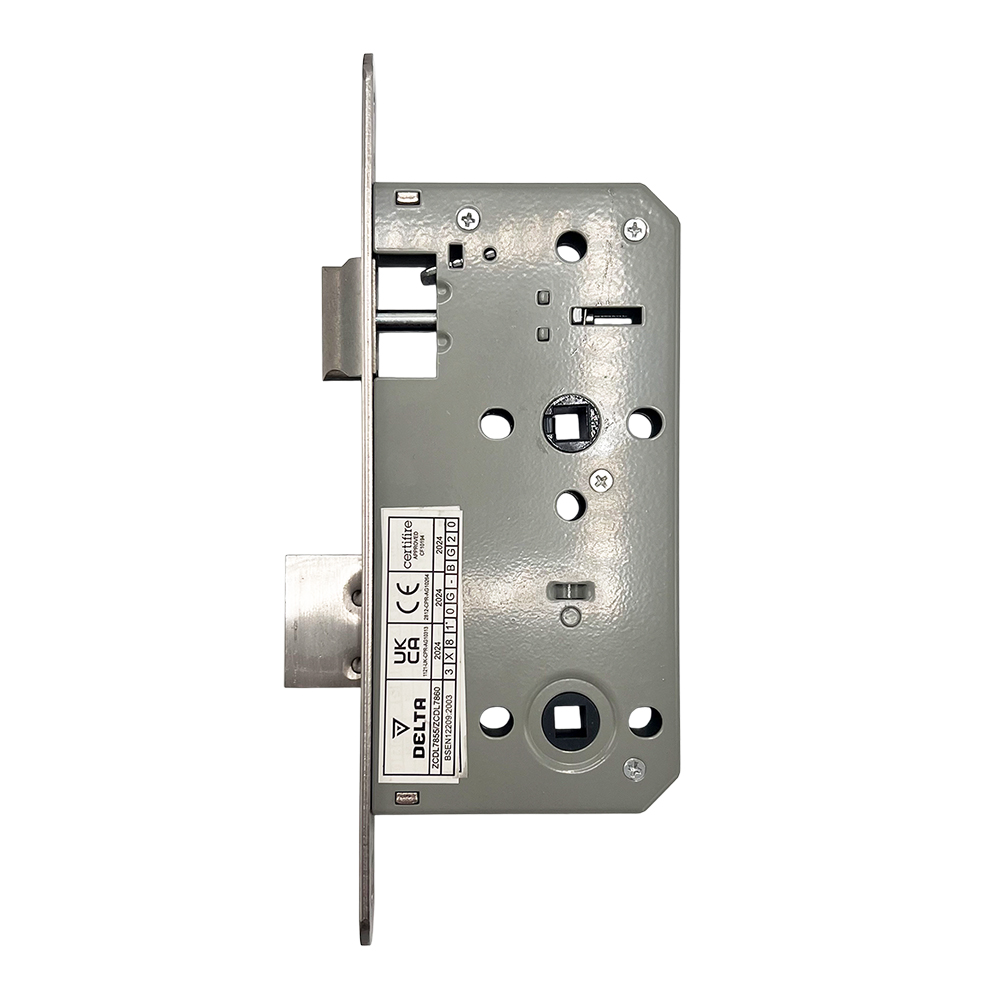

3 X 8 1 0 G – B G 2 0
